Запчасти Case 580SN (25.310.010) - FRONT AXLE, PLANETARY REDUCER, CARRIER, 4WD (25) - FRONT AXLE SYSTEM

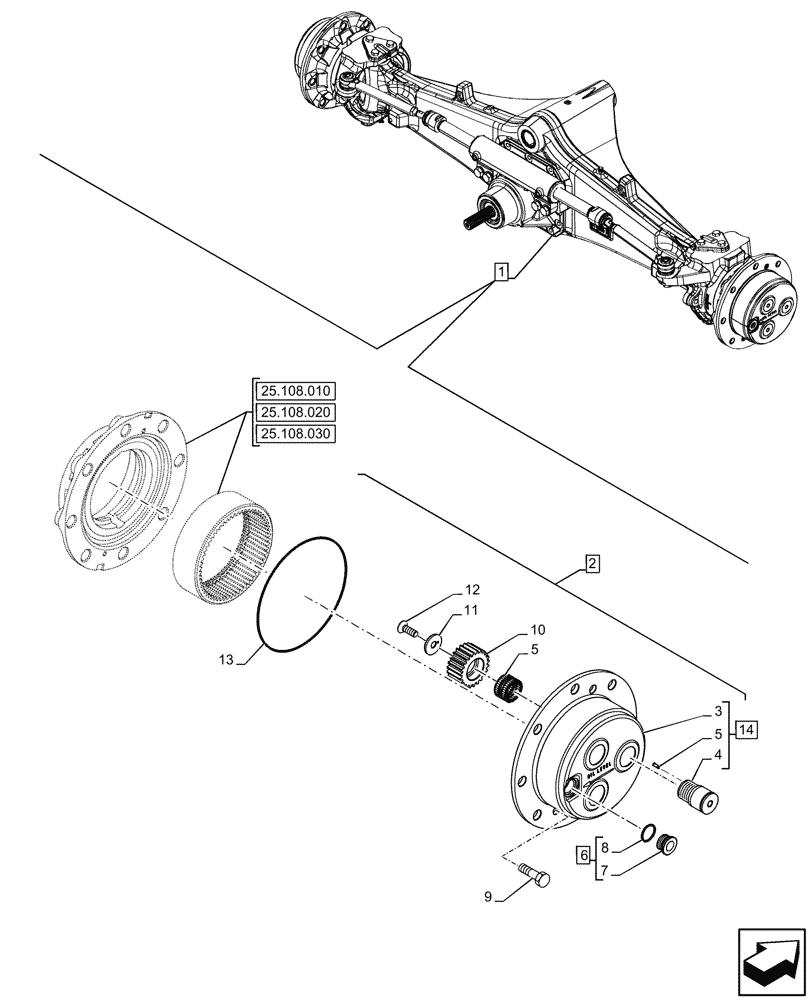

Схема запчастей Case 580SN - (25.310.010) - FRONT AXLE, PLANETARY REDUCER, CARRIER, 4WD (25) - FRONT AXLE SYSTEM
25.108.010
3
5
12
8
6
13
2
10
9
1
11
4
5
14
7
25.108.030
25.108.020

Артикул

Название

Примечание

Количество

1

47559839

FRONT AXLE

ASSY, Grey, PS1321 ACP, 12.1-1, Incl 2 - 14

1шт.

See also Front Axle Components in Figures 25.100.020, 25.100.030, 25.102.010, 25.102.020, 25.108.010, 25.108.020, 25.108.030, 25.108.040, 41.106.040, 41.216.040

1шт.

2

401754110004

CARRIER

ASSY, Incl 3 - 8, 10 - 14

1шт.

3

NSS

NOT SOLD SEPARAT

Planetary Drive, Incl in 14

1шт.

4

84299880

PIN,40.3mm OD x 41.3mm L

3шт.

5

84380206

NEEDLE ROLLER,4mm OD x 12mm L

3шт.

6

84272055

PLUG,M30 x 2

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

1шт.

8

9626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

9

47361879

SCREW,M8 x 20 Full 8.8 PHC

2шт.

10

84183888

PLANETARY GEAR,23T

3шт.

11

84183884

THRUST WASHER,13mm ID x 40mm OD x 7mm Thk

Retainer Planet Gear

3шт.

12

47519334

SCREW,Hex Soc, Lock, M12 x 1.75 x 36mm

3шт.

13

14468780

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

1шт.

14

84249602

PLANET CARRIER

ASSY, Incl 3 - 5

1шт.

Выбрано товаров: 15
