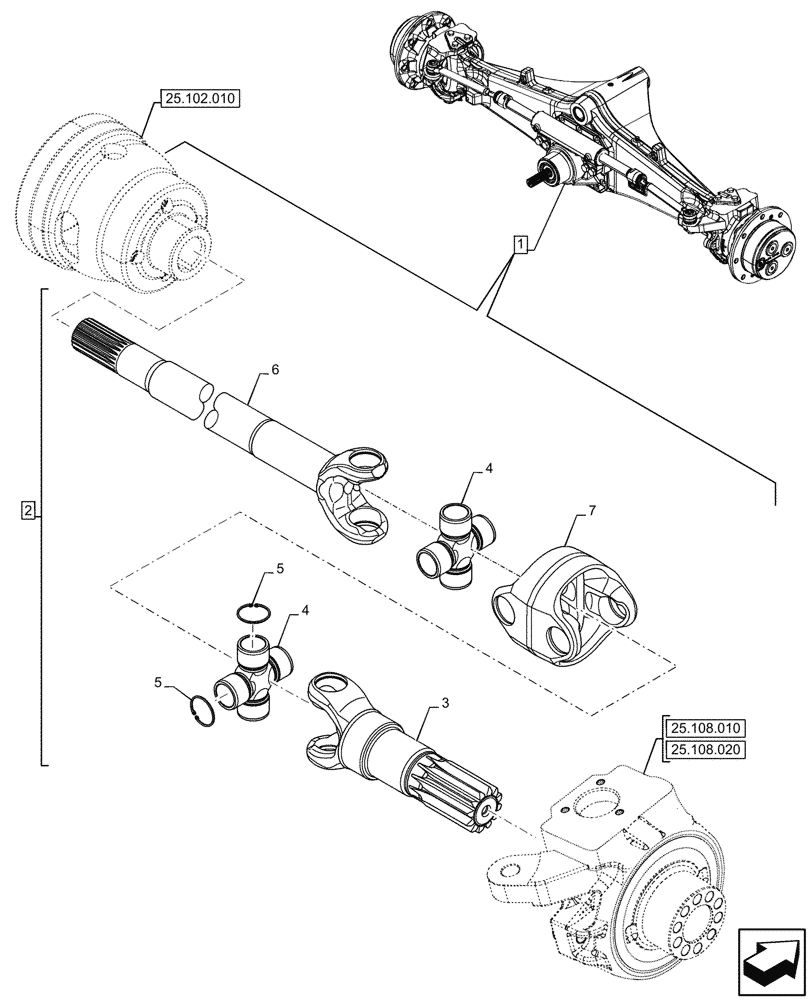

Запчасти Case 580SN (25.108.040) - FRONT AXLE, SHAFT, STD, 4WD (25) - FRONT AXLE SYSTEM

1

47559839

FRONT AXLE

ASSY, Grey, PS1321 ACP, 12.1-1, Incl 2 - 7

1шт.

See also Front Axle Components in Figures 25.100.020, 25.100.030, 25.102.010, 25.102.020, 25.108.010, 25.108.020, 25.108.030, 25.310.010, 41.106.040, 41.216.040

1шт.

2

84316950

AXLE-SHAFT, ARTICULA,944mm L

ASSY, Incl 3 - 7

1шт.

3

84316951

SHORT SHAFT,185mm L, 12T

Front Axle

1шт.

4

84258434

U-JOINT SPIDER

Journal and Bearing

2шт.

5

274234

SNAP RING,M27, Int

Circlip

8шт.

6

84258430

HALF SHAFT,695mm L, 22T

Front Axle

1шт.

7

84258432

UNIVERSAL JOINT

Front Axle

1шт.
