Запчасти Case 580SN (25.108.030) - FRONT AXLE, STEERING KNUCKLE, RH, STD, 4WD (25) - FRONT AXLE SYSTEM

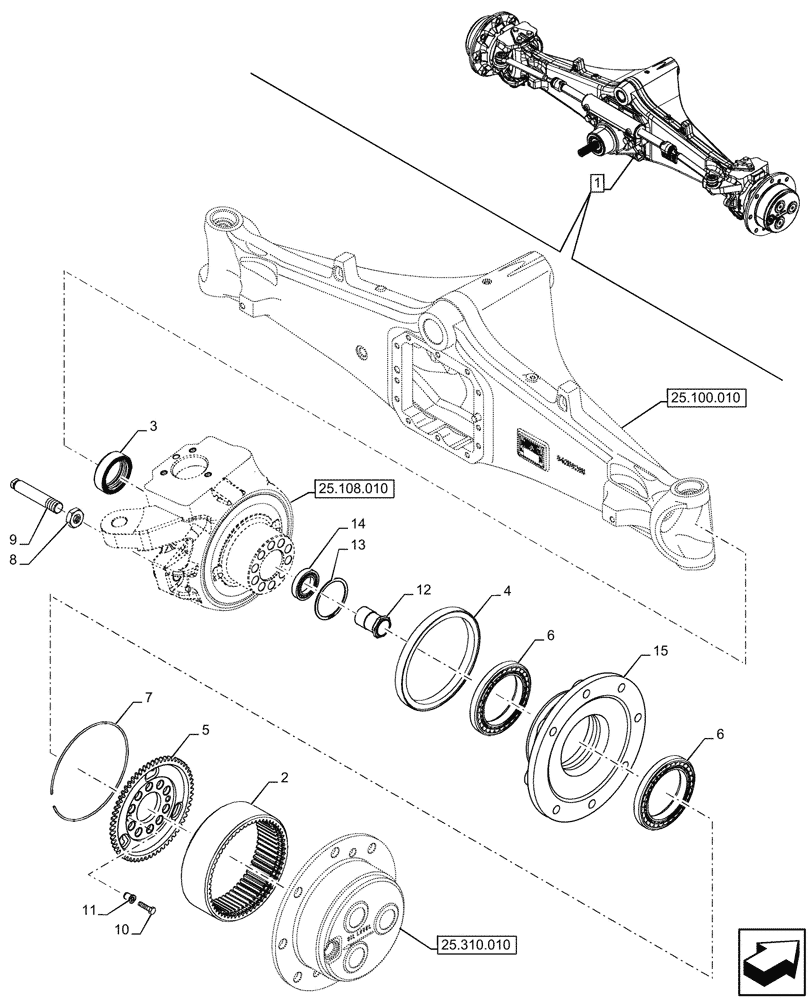

Схема запчастей Case 580SN - (25.108.030) - FRONT AXLE, STEERING KNUCKLE, RH, STD, 4WD (25) - FRONT AXLE SYSTEM
25.108.010
15
14
9
5
7
8
1
6
12
2
6
11
10
13
3
4
25.100.010
25.310.010

Артикул

Название

Примечание

Количество

1

47559839

FRONT AXLE

ASSY, Grey, PS1321 ACP, 12.1-1, Incl 2 - 15

1шт.

See also Front Axle Components in Figures 25.100.020, 25.100.030, 25.102.010, 25.102.020, 25.108.010, 25.108.020, 25.108.040, 25.310.010, 41.106.040, 41.216.040

1шт.

2

87748927

RING GEAR,60T

1шт.

3

84264324

SEAL,53.2mm ID x 78mm OD x 14mm Thk

Oil Cartridge

1шт.

4

87349641

OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk

1шт.

5

84270062

RING GEAR,60T

Support

1шт.

6

47724311

TAPERED BEARING,109.5mm ID x 158.7mm OD x 23mm L

2шт.

7

5165162

SNAP RING,M50, Int

1шт.

8

47361877

NUT,Hex, Thin, M18 x 2.5, Cl. 5

1шт.

9

87751873

SCREW,M18 x 105mm, Cl 10.9

Limitation Steering

1шт.

10

84470404

BOLT,M10 x 1.5 x 40 full

10шт.

11

84270060

SLEEVE,10.55mm ID x 16.069mm OD x 23mm L

T-Dowel

10шт.

12

84316953

NUT,M45 x 1.5, 61mm L

Stake

1шт.

13

84270868

CIRCLIP,75 PHC

Internal HVY

1шт.

14

84262394

BALL BEARING,45mm ID x 75mm OD x 16mm W

1шт.

15

47568130

HUB

Drive

1шт.

Выбрано товаров: 16
