Запчасти Case 580SN (25.100.020) - FRONT AXLE, COMPONENTS, 4WD (25) - FRONT AXLE SYSTEM

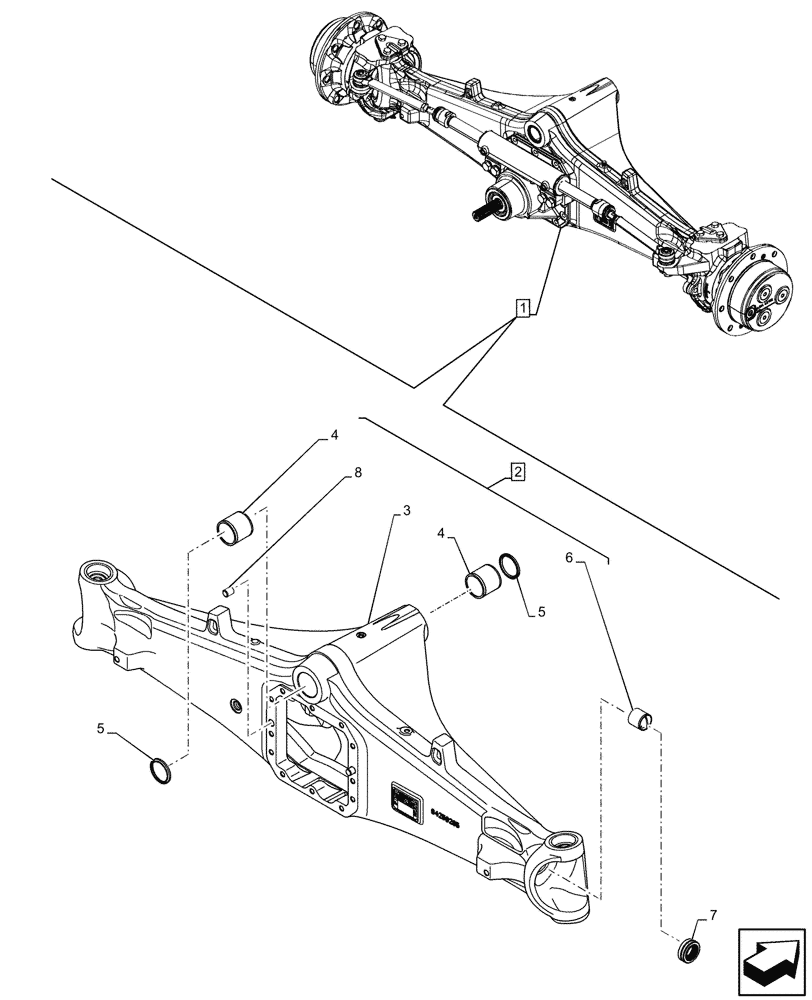

Схема запчастей Case 580SN - (25.100.020) - FRONT AXLE, COMPONENTS, 4WD (25) - FRONT AXLE SYSTEM
8
4
3
1
4
5
7
6
2
5

Артикул

Название

Примечание

Количество

1

47559839

FRONT AXLE

ASSY, Grey, PS1321 ACP, 12.1-1, Incl 2 - 8

1шт.

See also Front Axle Components in Figures 25.100.030, 25.102.010, 25.102.020, 25.108.010, 25.108.020, 25.108.030, 25.108.040, 25.310.010, 41.106.040, 41.216.040

1шт.

2

84310720

AXLE

ASSY, Housing, Incl 3, 4, 6, 8

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 2

1шт.

4

87748946

BUSHING,50.21mm ID x 60.03mm OD x 54mm L

2шт.

5

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

Pin Rod End

2шт.

6

84266996

BUSHING,35.13mm ID x 39.11mm OD x 35mm L

Bronze Steel Backed

2шт.

7

84266933

SEAL,35mm ID x 52mm OD x 18.5mm Thk

Oil

2шт.

8

4985062

DOWEL,15mm OD x 25mm L

Pin Clutch Housing Axle

2шт.

Выбрано товаров: 9
