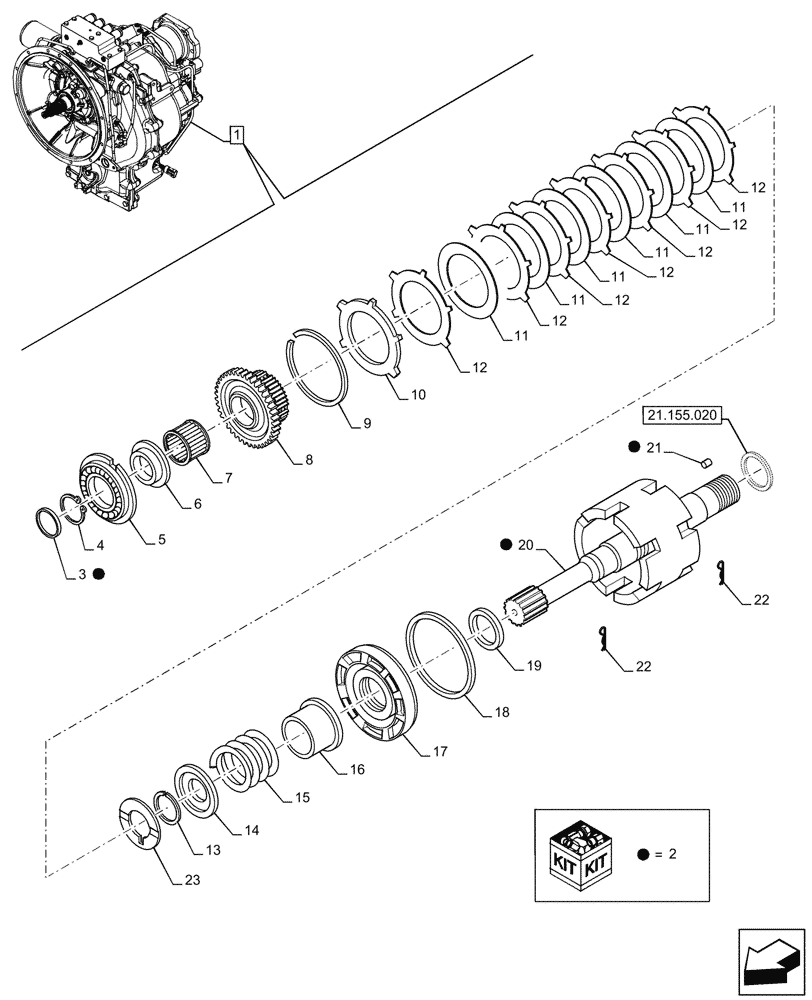

Запчасти Case 580SN (21.155.010) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, DRIVEN SHAFT, 4WD (21) - TRANSMISSION

1

87567534

TRANSMISSION

ASSY, TLB 2, Powershift, Incl 2 - 23

1шт.

See also Transmission Components in Figures 21.105.020, 21.105.030, 21.113.030, 21.113.040, 21.155.020, 21.155.030, 21.155.040, 21.155.050, 21.155.060, 33.110.050, 55.020.030, 55.022.060, 55.024.070, 55.024.110, 55.031.090, 55.031.100

1шт.

2

87525849

REPAIR KIT

ASSY, Input Shaft

1шт.

3

358645A1

SEALING RING

1шт.

4

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

1шт.

5

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

6

358635A1

SPACER

1шт.

7

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

1шт.

8

87705457

GEAR,45T

Reverse

1шт.

9

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

10

310519A1

PLATE

1шт.

11

181158A1

CLUTCH DISC

6шт.

12

181159A1

DISC

7шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

1шт.

14

181161A1

PLATE, THRUST

1шт.

15

358637A1

SPRING

Piston, Return

1шт.

16

358641A1

TRANSMISSION SLEEVE

1шт.

17

358644A1

PISTON

Clutch

1шт.

18

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

1шт.

19

358642A1

SEALING RING

1шт.

20

87429973

SHAFT

Input

1шт.

21

139312A1

PLUG,Expansion, 6mm OD

4шт.

22

181108A1

SPLIT PIN,3mm OD x 8mm L

2шт.

23

358640A1

WASHER

1шт.
