Запчасти Case 590SM (05-04) - AXLE, FRONT (86990837) - MOUNTING (05) - STEERING

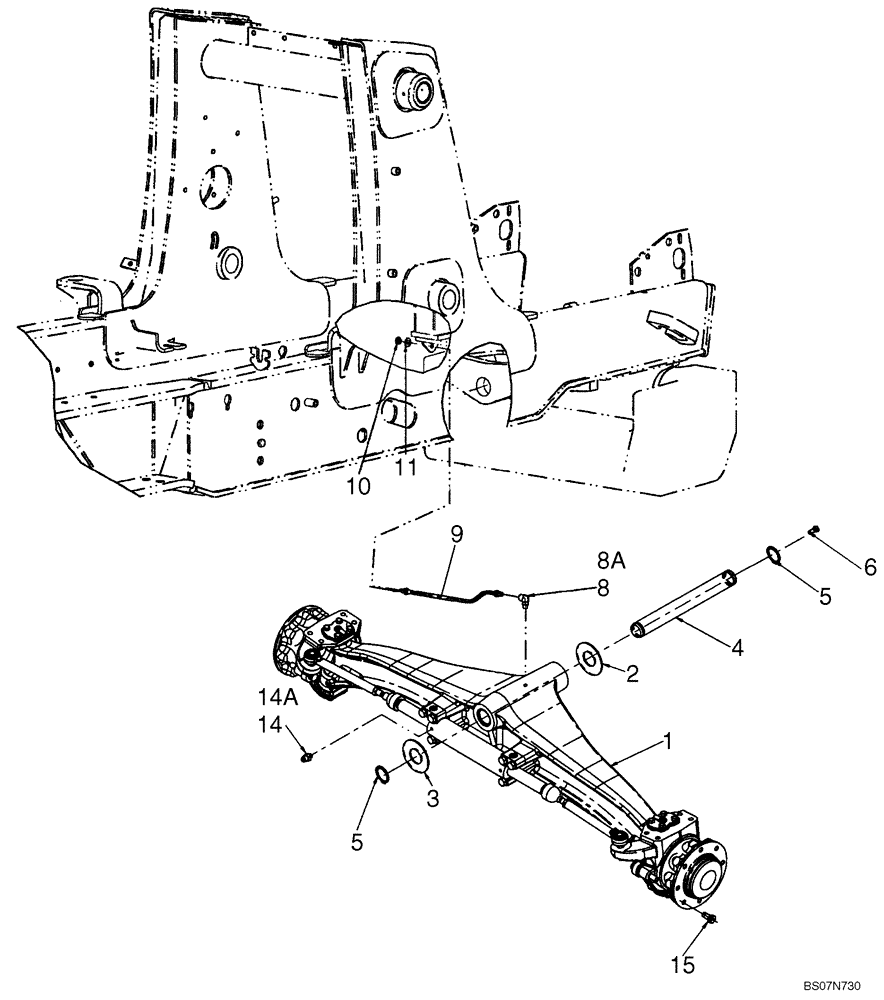

Схема запчастей Case 590SM - (05-04) - AXLE, FRONT (86990837) - MOUNTING (05) - STEERING
3
5
5
14a
15
8a
9
6
1
11
2
8
14
10
4

Артикул

Название

Примечание

Количество

1

86990837

AXLE

Front, Two Wheel Drive, See Figures 05-05 - 05-08

1шт.

2

191796A1

WASHER,51.6mm ID x 92mm OD x 1.98mm Thk

2 x 4 x 1/16

1шт.

3

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

Thrust, 2-1/2 x 4-1/2 x 3/16

1шт.

4

87404197

PIVOT PIN,50mm OD x 426.5mm L

1шт.

5

800-44050

SNAP RING,M50, Ext

2шт.

6

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

8

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Incl. Ref 8A

1шт.

8a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

87572760

HOSE ASSY.,6.4mm ID x 533mm L

533 mm (21 in), Lubrication Line

1шт.

10

F53473

LOCK NUT,1/8-27 NPSM

1шт.

11

495-11047

WASHER,7/16", SAE

1шт.

14

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. Ref 14A

2шт.

14a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

16шт.

Выбрано товаров: 14
