Запчасти Case 590SM (04-19) - ANTENNA, RADIO - HARNESS, RADIO (04) - ELECTRICAL SYSTEMS

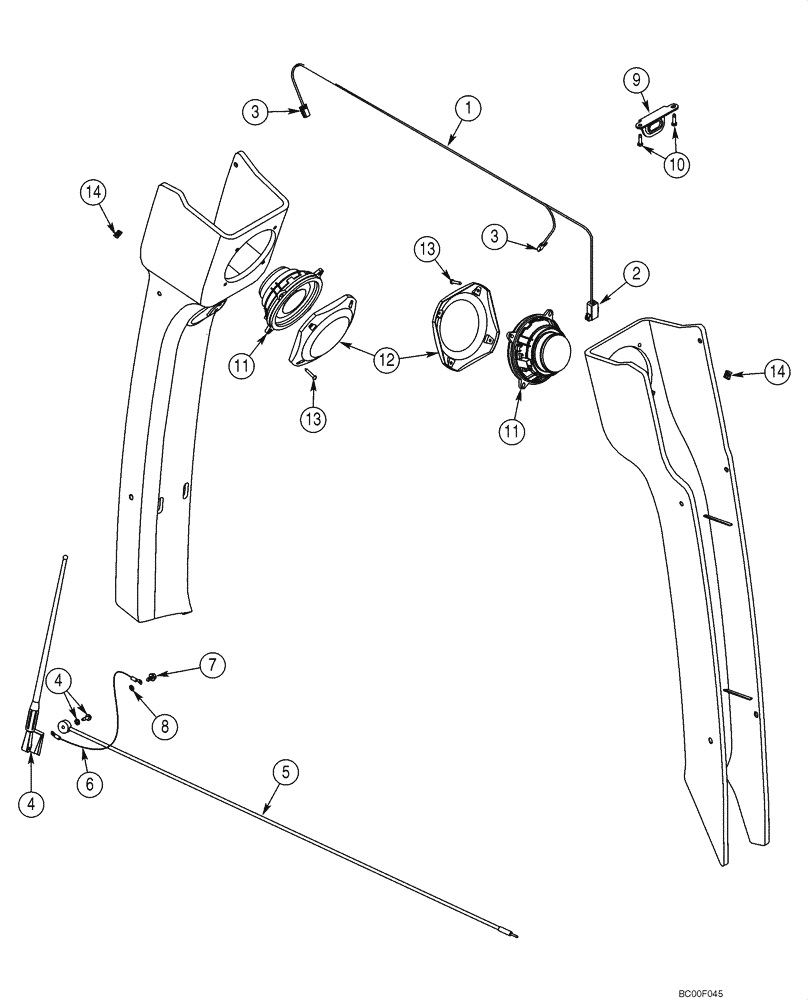

Схема запчастей Case 590SM - (04-19) - ANTENNA, RADIO - HARNESS, RADIO (04) - ELECTRICAL SYSTEMS
3
11
11
6
10
4
1
4
12
3
2
14
9
7
5
13
13
8
14

Артикул

Название

Примечание

Количество

1

382664A2

WIRE HARNESS

Speaker; Incl. Ref 2, 3

1шт.

2

227389A1

CONNECTOR, ELEC

CONNECTOR To Cab Harness

1шт.

3

195552A1

ELEC CONNECTOR,Female, 2 Pin

Speaker

2шт.

4

197745A1

ANTENNA

Radio; Includes Flat Washer and Nut; Discard Washer and Nut and Use (1) 825-2405 Flange Nut

1шт.

5

381659A1

ELECTRIC CABLE

1шт.

6

291010A1

ELECTRICAL WIRE

WIRE Ground

1шт.

7

282-17512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

2шт.

8

893-11005

LOCK WASHER,Ext Tooth, M5

1шт.

9

386927A1

BRACKET

Radio Mounting

1шт.

10

276-26512

SELF-TAP SCREW,Hex Hd, #10 x 3/4"

2шт.

11

182721A2

SPEAKER

2шт.

12

187281A1

COVER

2шт.

13

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

8шт.

14

177269A1

SPRING NUT,M4.2

8шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Not Illustrated

1шт.

Выбрано товаров: 15
