Запчасти Case 590SM (04-14) - ELECTRICAL - LAMPS, ROPS CANOPY (04) - ELECTRICAL SYSTEMS

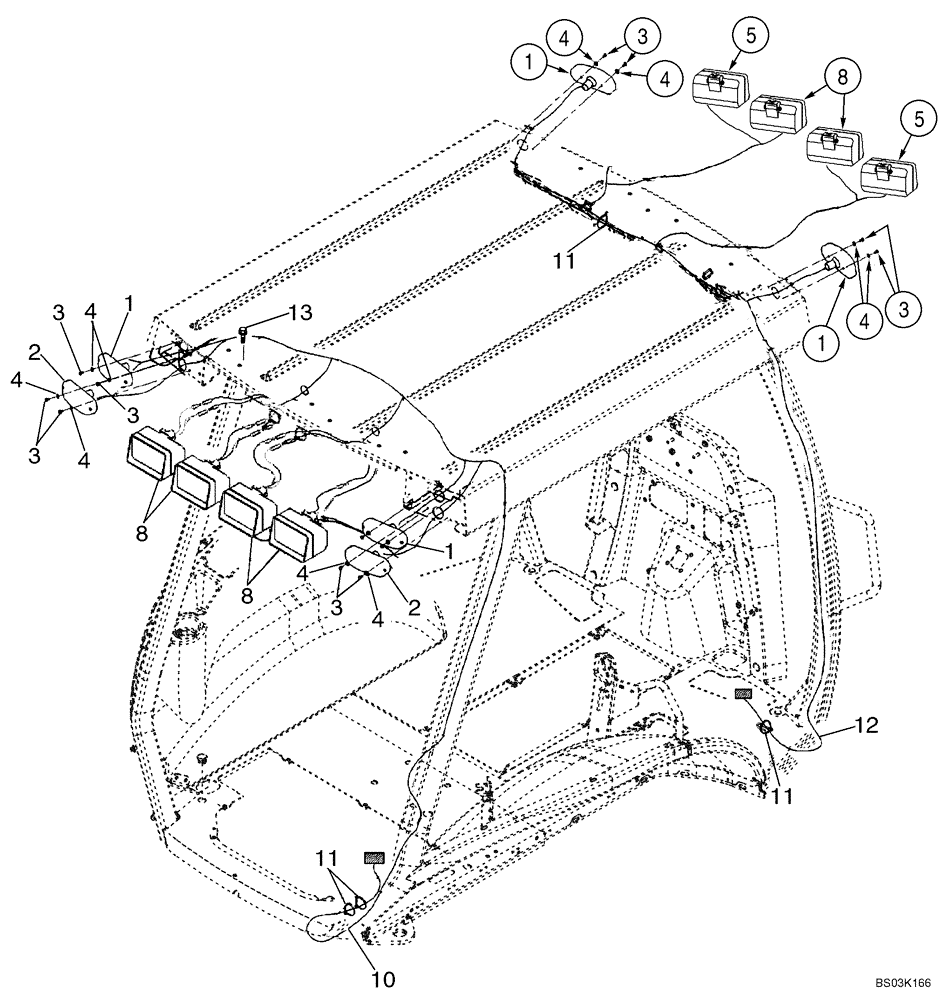

Схема запчастей Case 590SM - (04-14) - ELECTRICAL - LAMPS, ROPS CANOPY (04) - ELECTRICAL SYSTEMS
11
4
3
1
1
3
2
5
4
3
3
10
3
8
4
3
2
8
4
4
11
12
13
4
1
3
11
1
5
4
8

Артикул

Название

Примечание

Количество

1

D135384

LAMP,12V

Turn Signal and Flasher; See Figure 04-16

4шт.

2

D121152

LAMP,12V

Stop And Tail; See Figure 04-16

2шт.

3

329032A1

SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT

No. 10 x 3/8

12шт.

4

495-31022

WASHER,#10

12шт.

5

87343247

FRONT LAMP,Halogen, 12V, 55W, Clear

Driving; Outer; Incl. 1312210C2 Bulb; Cobo Brand; If Used

2шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, H3

1шт.

8

398847A3

WORK LAMP,Halogen, 12V, 55W, Clear

Front and Rear Flood and Work Lamps; Includes 1312210C2, 276498A1; ABL Brand, If Used

6шт.

8

87443080

WORK LAMP,Halogen, 12V, 55W, Clear

Front and Rear Flood and Work Lamps; Includes 1312210C2 Bulb; Cobo Brand, If Used

6шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, H3

1шт.

276498A1

LENS

With Hardened Glass

1шт.

10

396023A2

WIRE HARNESS

Canopy Lamps; Rear

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

12

404617A1

WIRE HARNESS

Canopy Lamps and Wiper; Front

1шт.

13

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

Flange, M10 x 15

8шт.

Выбрано товаров: 14
