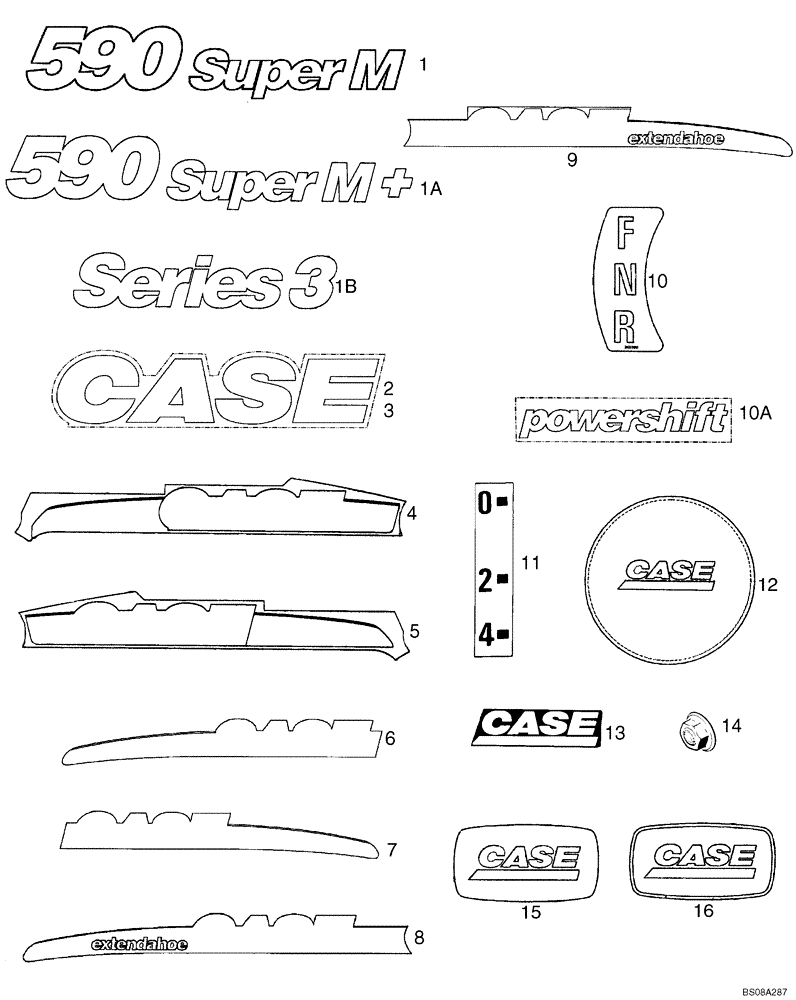

Запчасти Case 590SM (09-71) - DECALS (09) - CHASSIS/ATTACHMENTS

1

87754373

DECAL

590 Super M Model Designation

2шт.

1a

87754372

DECAL

590 Super M+ Model Designation

2шт.

1b

87412815

DECAL

Series 3

2шт.

2

87479118

DECAL

630 mm (24-11/16 in); Case Logo; Loader Arm

2шт.

3

401458A1

DECAL

655 mm (25-13/16 in); Case Logo; Backhoe Dipper

2шт.

4

87751884

DECAL

Case; Loader Arm Pin Stripe; Left-Hand Stripe

1шт.

5

87751885

DECAL

Case; Loader Arm Pin Stripe; Right-Hand Stripe

1шт.

6

407315A1

DECAL

Case; Standard Dipper; Left-Hand Stripe

1шт.

7

407316A1

DECAL

Case; Standard Dipper; Right-Hand Stripe

1шт.

8

373698A2

DECAL

Case; Extendahoe Dipper; Left-Hand Stripe

1шт.

9

373699A2

DECAL

Case; Extendahoe Dipper; Right-Hand Stripe

1шт.

10

395910A2

DECAL

FNR (Forward/Neutral/Reverse); Shuttle Shift Lever Control Pattern

1шт.

10a

373696A1

DECAL

Powershift

2шт.

11

321-1708

DECAL

0-2-4; Clam Bucket Opening Indicator

1шт.

12

87435569

EMBLEM

Insert, Case; Steering Wheel

1шт.

13

186989A1

EMBLEM

Case

1шт.

14

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

15

87415931

DECAL

Case, 37 x 70 mm; Located On Engine Filters

2шт.

16

87429186

EMBLEM

Case, 37 x 70 mm; Located On Engine

1шт.
