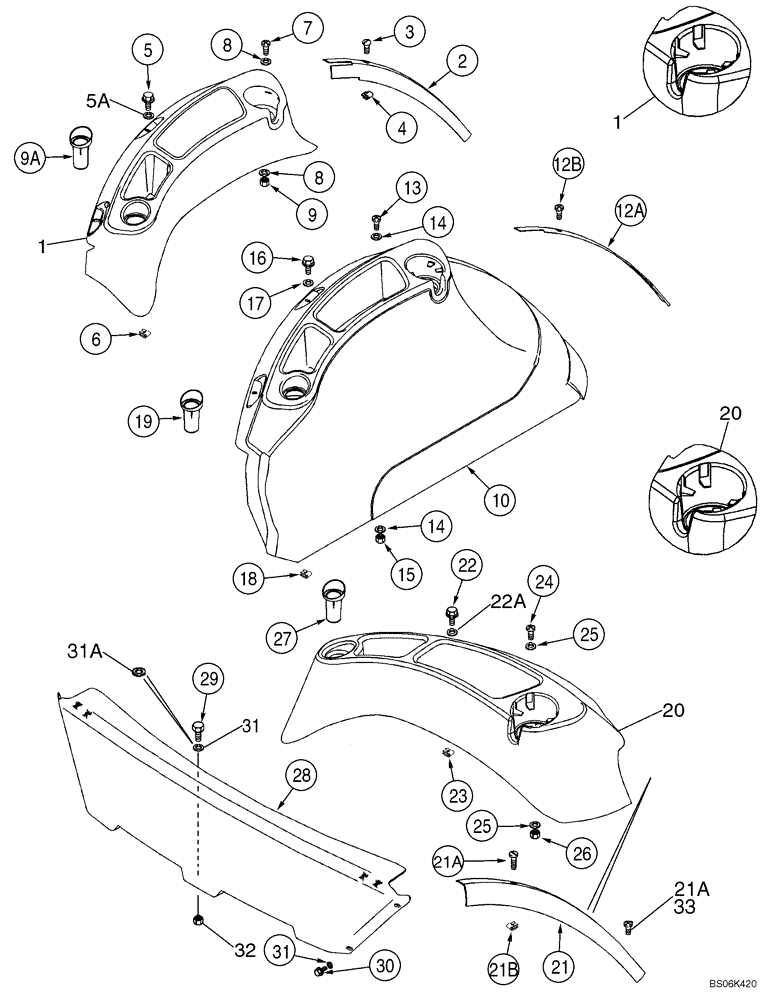

Запчасти Case 590SM (09-41) - FENDER COVER, LEFT-HAND - PANEL, REAR CLOSURE (STORAGE TRAY WITH CUP HOLDER) (09) - CHASSIS/ATTACHMENTS

1

86992247

TRAY

Cab Models, With Standard Interior; Includes 86992284, 400077A1

1шт.

NSS

NOT SOLD SEPARAT

Tray

1шт.

86992284

BUMPER,40-50 Durometer

4шт.

400077A1

PROTECTION STRIP,1300mm

1300 mm (51-3/16 in); Cut From 1977224CX

1шт.

2

397026A3

TRIM

LH Fender, Cab Models With Standard Interior

1шт.

3

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

No. 10 x 3/4, Stainless Steel

1шт.

4

131-869

SPRING NUT,Ret, J, #10-24

3шт.

3

87534992

SELF-TAP SCREW,Pan Head, M10 x 28mm

2шт.

5

87310098

BOLT,M6 x 20 Full SST BLO

Flange, M6 x 20, Stainless Steel

2шт.

5a

87310186

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6.6 ID x 25 OD x 1.6 mm thk, Stainless Steel

2шт.

6

833-40406

NUT,M6, U

2шт.

7

87310127

SCREW,Pan HD, #10 - 24 x 1", SST

No. 10 x 1, Stainless Steel

2шт.

8

87310146

WASHER,5.16mm ID x 19.05mm OD x 1.55mm Thk

13/64 x 3/4 x 1/16, Stainless Steel

4шт.

9

86625057

NUT,#10-24, GB

2шт.

9a

378742A3

INSERT

Swing Pin Holder

1шт.

10

86992248

COVER

Cab Models With Deluxe Interior; Includes (4) 86992284 Bumpers

1шт.

12a

397774A3

STRIP

Deluxe Interior

1шт.

12b

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

No. 10 x 3/4, Stainless Steel

3шт.

13

87310127

SCREW,Pan HD, #10 - 24 x 1", SST

No. 10 x 1, Stainless Steel

2шт.

12b

87534992

SELF-TAP SCREW,Pan Head, M10 x 28mm

2шт.

14

87310146

WASHER,5.16mm ID x 19.05mm OD x 1.55mm Thk

13/64 x 3/4 x 1/16, Stainless Steel

4шт.

15

86625057

NUT,#10-24, GB

2шт.

16

87310098

BOLT,M6 x 20 Full SST BLO

Flange, M6 x 20, Stainless Steel

2шт.

17

87310186

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6.6 ID x 25 OD x 1.6 mm thk, Stainless Steel

2шт.

18

833-40406

NUT,M6, U

2шт.

19

378742A3

INSERT

Swing Pin Holder

1шт.

20

86992243

TRAY

Canopy Models; Includes 86992284, 4000077A1

1шт.

NSS

NOT SOLD SEPARAT

Tray

1шт.

86992284

BUMPER,40-50 Durometer

4шт.

400077A1

PROTECTION STRIP,1300mm

1300 mm (51-3/16 in); Cut From 1977224CX

1шт.

21

397025A2

TRIM

Canopy Models

1шт.

21a

87534992

SELF-TAP SCREW,Pan Head, M10 x 28mm

Pan Hd Slotted Rec, #10 x 1 SST

2шт.

21b

131-869

SPRING NUT,Ret, J, #10-24

3шт.

22

87310098

BOLT,M6 x 20 Full SST BLO

Flange, M6 x 20, Stainless Steel

2шт.

22a

87310186

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6.6 ID x 25 OD x 1.6 mm thk, Stainless Steel

2шт.

23

833-40406

NUT,M6, U

2шт.

24

87310127

SCREW,Pan HD, #10 - 24 x 1", SST

No. 10 x 1, Stainless Steel

2шт.

25

87310146

WASHER,5.16mm ID x 19.05mm OD x 1.55mm Thk

13/64 x 3/4 x 1/16, Stainless Steel

4шт.

26

86625057

NUT,#10-24, GB

2шт.

27

378742A3

INSERT

Swing Pin Holder

1шт.

28

86992977

PANEL

Rear Closure; Canopy Models

1шт.

29

87310154

BOLT,Hex, M6 x 25, Cl. 8.8

M8 x 25, Stainless Steel

1шт.

30

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

4шт.

31

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

31a

87310185

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9 x 20 x 1,6 mm, Stainless Steel

1шт.

32

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

33

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

Pan Hd Cross Rec, No. 10 x 3/4 Stainless Steel

1шт.
