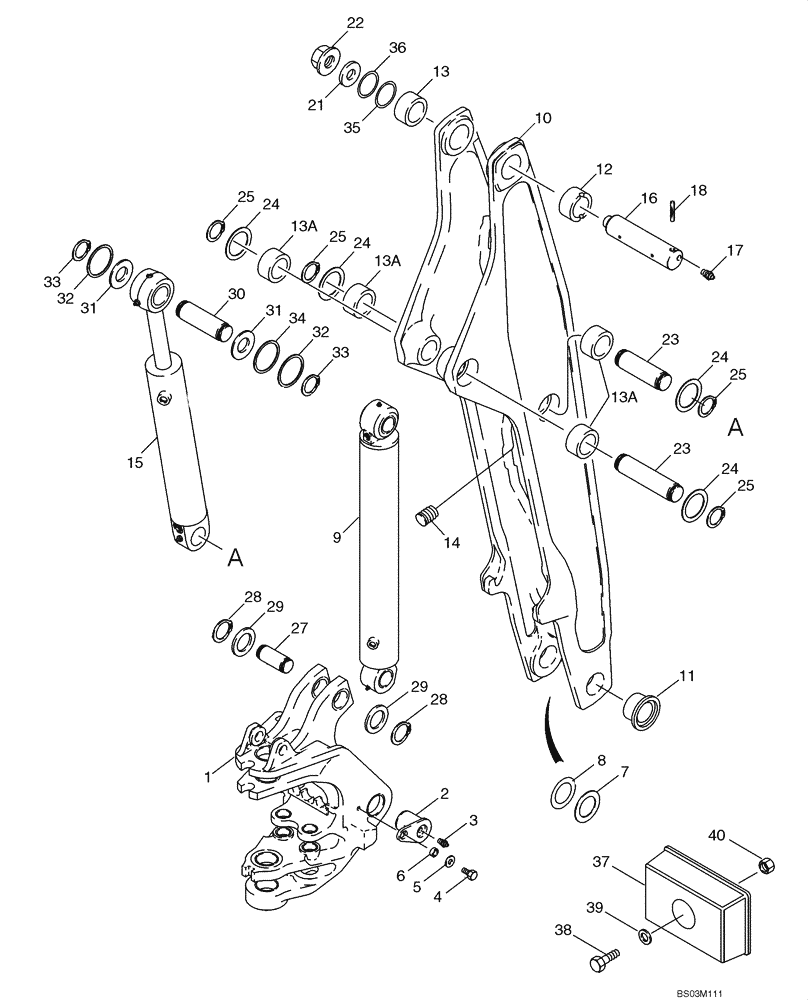

Запчасти Case 590SM (09-23) - BACKHOE - BOOM AND SWING TOWER (09) - CHASSIS/ATTACHMENTS

1

87737556

TOWER

Swing; See Figure 09-22 For Bushings

1шт.

2

175596A1

PIN

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

4

604-20040

BOLT,Hex, M20 x 40mm, Cl 8.8

Models With Backhoe Auxiliary Hydraulics Use 604-20045

2шт.

604-20045

BOLT,Hex, M20 x 45mm, Cl 8.8

2шт.

5

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

2шт.

6

122897A1

SPACER,21mm ID x 31.75mm OD x 12mm L

2шт.

7

D144485

SHIM,82mm ID x 98mm OD x 3.05mm Thk

1шт.

8

D144486

SHIM,82mm ID x 98mm OD x 1.57mm Thk

1шт.

9

175785A1

CYLINDER,Double Acting, 63.5mm Rod, 975.7mm Stroke

140 ID x 976 mm strk; Boom; See Figure 08-67

1шт.

9

175785A1R

REMAN-HYD CYLINDER

590SM Series 3, 590SM+ Series 3, Both w/Tier 3 Engine

1шт.

9

175785A1C

CORE-HYD CYLINDER

Return Number

1шт.

10

140505A1

BOOM

Incl. Ref 11 - 14

1шт.

11

D151059

BUSHING,80.19mm ID x 104mm OD x 42mm L

80 ID x 46 mm lg

2шт.

12

D144197

BUSHING,80.19mm ID x 100mm OD x 56mm L

80 ID x 56 mm lg; With Slot For Groove Pin; Right-Hand Side

1шт.

13

D144168

BUSHING,80.19mm ID x 100mm OD x 56mm L

80 ID x 44 mm lg; Without Slot For Groove Pin; Left-Hand Side

1шт.

13a

D144161

BUSHING,70.19mm ID x 80mm OD x 46mm L

70 ID x 50 mm lg

4шт.

14

D120450

PLUG

7шт.

15

140965A1

CYLINDER,Double Acting, 69.8mm Rod, 564.2mm Stroke

140 ID x 564 mm strk; Dipper; See Figure 08-68

1шт.

15

140965A1R

REMAN-HYD CYLINDER

590SM Series 3, 590SM+ Series 3, Both w/Tier 3 Engine

1шт.

15

140965A1C

CORE-HYD CYLINDER

Return Number

1шт.

16

87356541

PIVOT PIN,80mm OD x 355.5mm L

Boom to Dipper Pin

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

18

300014A1

SPLIT PIN/SAFETY PIN,12.7mm OD x 95.25mm L

1/2 x 3-3/4 Groove Pin

1шт.

21

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

1шт.

22

181042A1

FLANGE NUT

Flange, Special

1шт.

23

87713666

GROOVED PIN,70mm OD x 230mm L

Replaces 175581A1

2шт.

24

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

4шт.

25

800-40065

SNAP RING,M65, Ext

4шт.

27

175315A1

PIN,80mm OD x 160.5mm L

Boom Cylinder Rod End to Swing Tower

1шт.

28

800-40080

SNAP RING,M80, Ext

2шт.

29

D144486

SHIM,82mm ID x 98mm OD x 1.57mm Thk

1шт.

30

87713666

GROOVED PIN,70mm OD x 230mm L

Replaces 175581A1

1шт.

31

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD)

1шт.

32

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

1шт.

33

800-40065

SNAP RING,M65, Ext

2шт.

34

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD); RH side

1шт.

35

404303A1

SHIM

5,0 mm thk; Concave

1шт.

36

404302A1

SHIM

5,0 mm thk; Concave

1шт.

37

102924A1

BUMPER

1шт.

38

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

39

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

40

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
