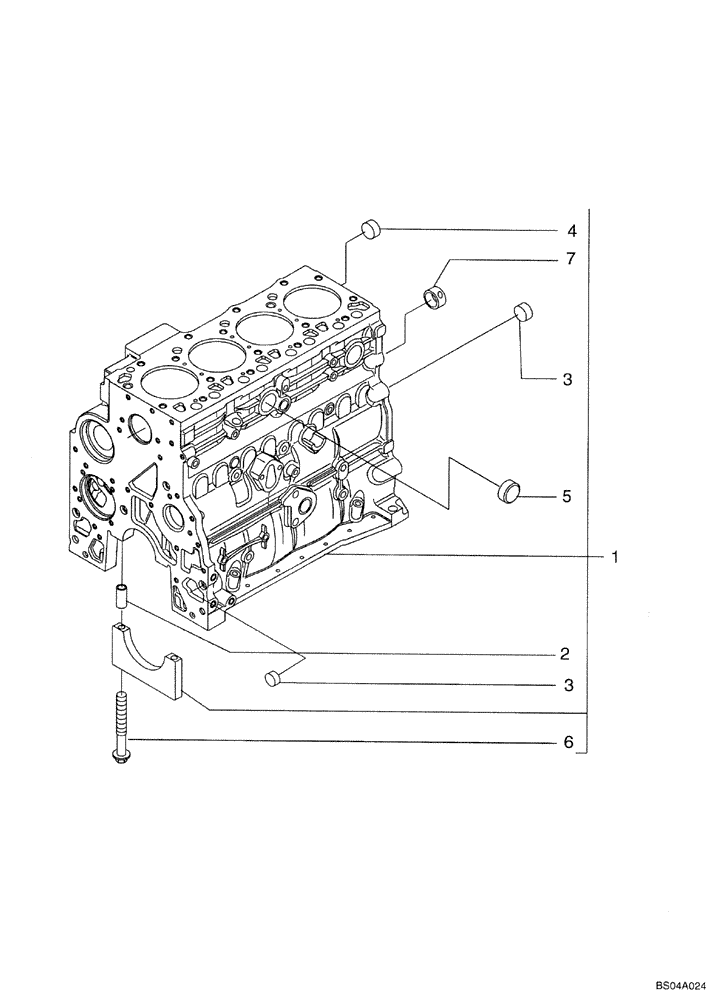

Запчасти Case 590SM (02-09) - CYLINDER BLOCK (02) - ENGINE

84131472

SHORT ENGINE

Includes All Parts On Figures 02-09, 02-10, 02-22, 02-23, 02-24, 02-29

1шт.

1

2830082

CYLINDER BLOCK,4 Cylinders

Incl. Ref 2 - 7, Plus Main Bearing Caps

1шт.

4895919

BEARING ASSY,86.1mm D

Main; Not Serviced Separately

4шт.

4895921

BEARING ASSY,86.1mm D

Main; Not Serviced Separately

1шт.

2

4899026

DOWEL,M18 x 10

10шт.

3

4895039

EXPANSION PLUG,M17.73

3шт.

4

4895038

EXPANSION PLUG,M58.06

4шт.

5

4895228

EXPANSION PLUG,35.23mm x 7.94mm

2шт.

6

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

10шт.

7

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.
