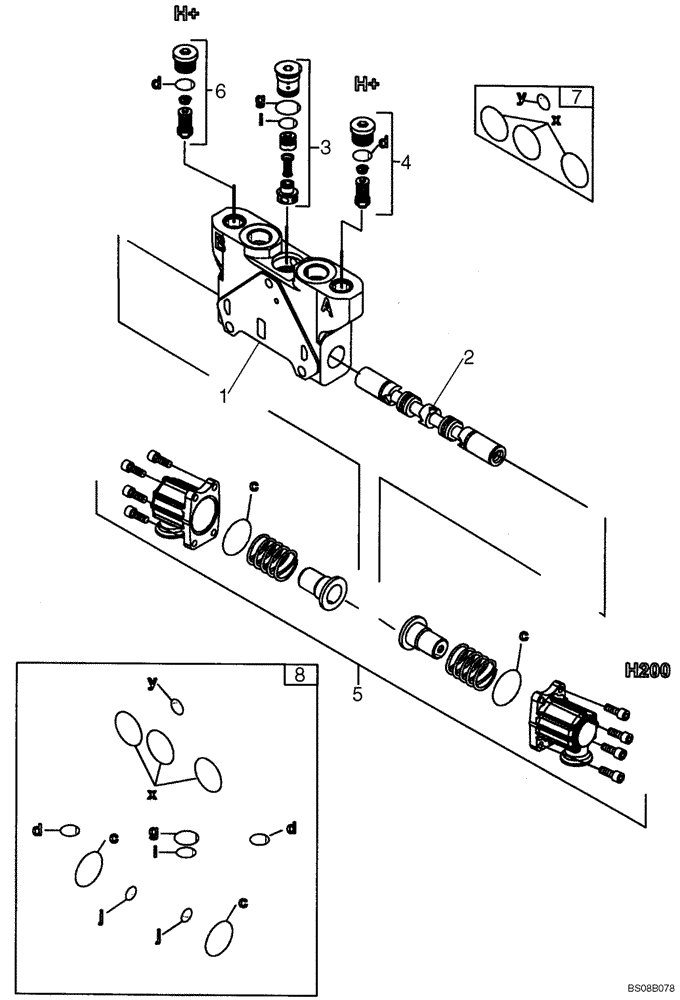

Запчасти Case 590SM (08-47) - 87751046 VALVE SECTION - BACKHOE BUCKET (WITH PILOT CONTROLS) (590SM+) (08) - HYDRAULICS

87751046

HYD VALVE SECTION

Bucket; Incl. Ref 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

87718999

DAMPING VALVE

Pressure Compensator; Component Parts Not Serviced Separately

1шт.

4

87719001

VALVE PRESSURE RELIE

Component Parts Not Serviced Separately

1шт.

5

85826344

KIT,Operation

End Cap; Component Parts Not Serviced Separately

1шт.

6

87719000

VALVE PRESSURE RELIE,240Bar, 3480Psi

Component Parts Not Serviced Separately

1шт.

7

85825473

SEAL KIT

Includes (4) O-Rings; Component Parts Not Serviced Separately

1шт.

8

87617657

O-RING KIT

Includes (12) O-Rings; Component Parts Not Serviced Separately

1шт.
