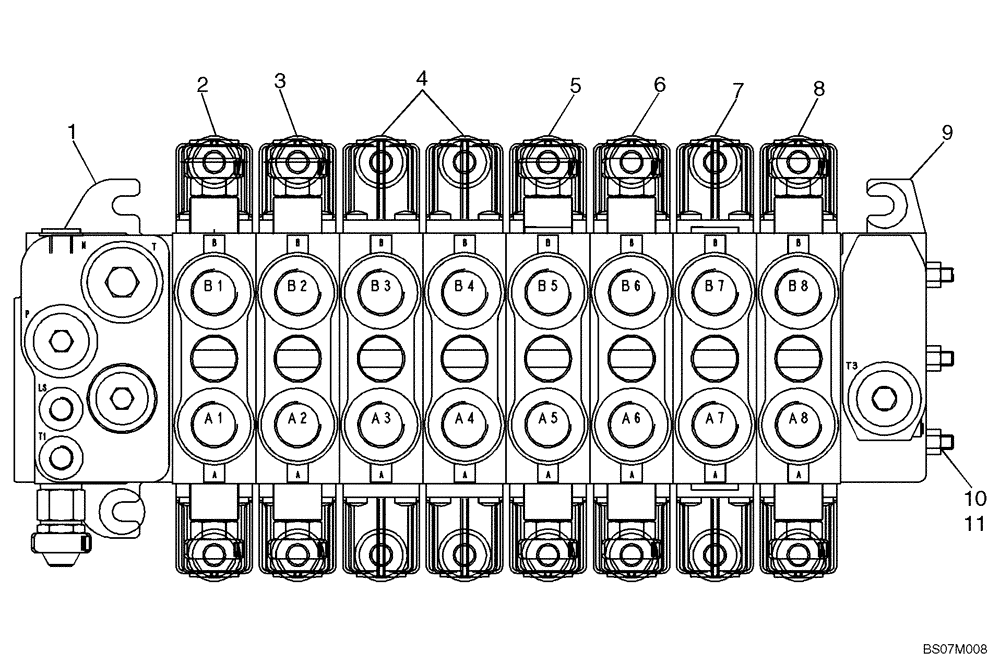

Запчасти Case 590SM (08-41) - 87653027 VALVE ASSY - BACKHOE CONTROL, 8 SPOOL (W/ EXT DIPPER, W/ AUX HYDS) (590SM+) (08) - HYDRAULICS

87653027

HYDRAULIC VALVE

Backhoe Control; 8 Spool; Rexroth No. 08 278 469; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 11

1шт.

1

87750976

HYD VALVE SECTION

Inlet Section; See Figure 08-42

1шт.

2

87751023

HYD VALVE SECTION

Swing Section; See Figure 08-43

1шт.

3

87751020

HYD VALVE SECTION

Boom Section; See Figure 08-44

1шт.

4

87617618

HYD VALVE SECTION

Stabilizer Section; See Figure 08-45

2шт.

5

87718995

HYD VALVE SECTION

Dipper Section; See Figure 08-46

1шт.

6

87751046

HYD VALVE SECTION

Bucket Section; See Figure 08-47

1шт.

7

87750987

HYD VALVE SECTION

Extendable Dipper Section; See Figure 08-48

1шт.

8

85826342

HYD VALVE SECTION

Auxiliary Section; See Figure 08-49

1шт.

9

87751047

HYD VALVE SECTION

Outlet Section; See Figure 08-50

1шт.

10

87447477

SET OF PARTS

Tie Bolt

3шт.

11

280136

NUT,3/8"-16, G8

3шт.
