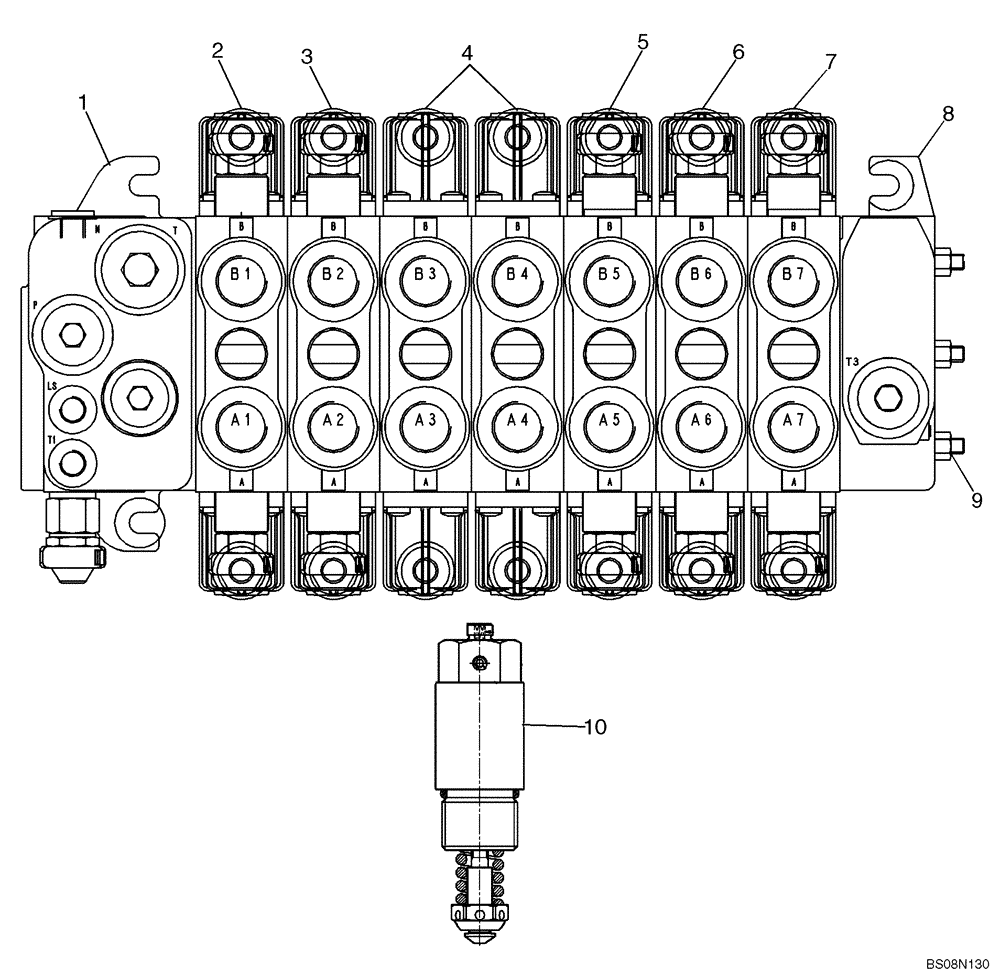

Запчасти Case 590SM (08-40A) - 84138949 VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/ OR W/O AUX HYDS) (590SM+) (08) - HYDRAULICS

84138949

HYDRAULIC VALVE

Backhoe Control; 7 Spool; Rexroth No. 08 279 027 or 08403718; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 10

1шт.

1

84157942

HYD VALVE SECTION

Inlet Section; See Figure 08-42A

1шт.

2

87751023

HYD VALVE SECTION

Swing Section; See Figure 08-43

1шт.

3

84157595

HYD VALVE SECTION

Boom Section; See Figure 08-44A

1шт.

4

84157939

HYD VALVE SECTION

Stabilizer Section; See Figure 08-45A

2шт.

5

84157593

HYD VALVE SECTION

Dipper Section; See Figure 08-46A

1шт.

6

84157596

HYD VALVE SECTION

Bucket Section; See Figure 08-47A

1шт.

7

87750987

HYD VALVE SECTION

Extendable Dipper Section; See Figure 08-48

1шт.

8

87751047

HYD VALVE SECTION

Outlet Section; See Figure 08-50

1шт.

9

85811959

KIT

Tie Rods & Nuts

1шт.

10

87752848

VALVE PRESSURE RELIE

Option (Service Only) Pilot Operated; Use In Port A & B in Bucket & Dipper Sections. Use in Port B in Boom Section

1шт.
