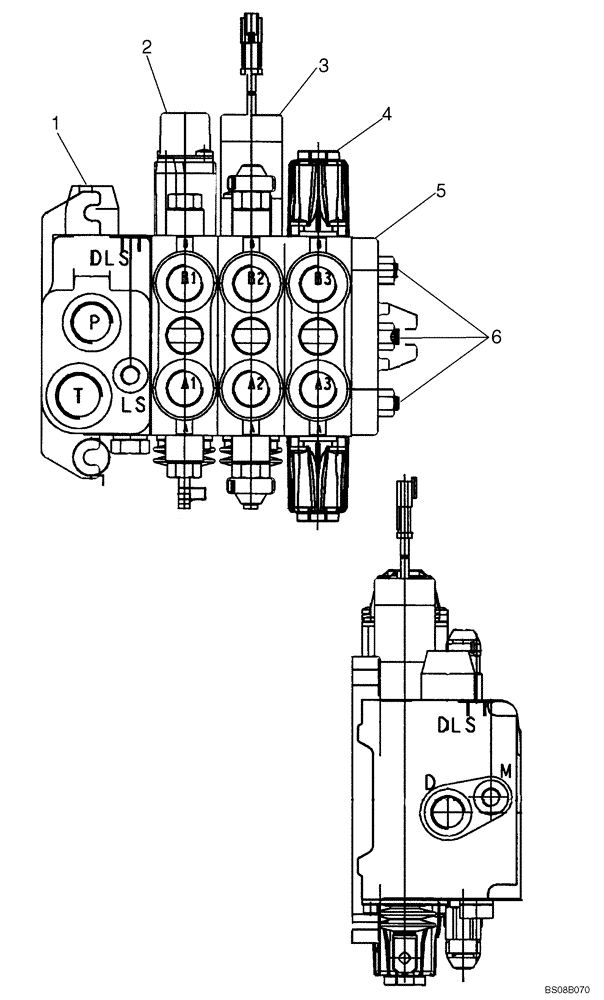

Запчасти Case 590SM (08-35A) - VALVE ASSY - LOADER CONTROL, THREE SPOOL (VARIABLE VOLUME PUMP MODELS) (590SM+) (08) - HYDRAULICS

84219974

VALVE

590SM+; Three Spool Loader Valve, Used On Models With Pilot Controls And Variable Volume Pump; Includes Parts Listed Below

1шт.

84219974R

REMAN-HYD VALVE

Reman 590SM+; Three Spool Loader Valve, Used On Models With Pilot Controls And Variable Volume Pump; Includes Parts Listed Below

1шт.

84219974C

CORE-VALVE HYD

Core Return Number

1шт.

1

87751123

HYD VALVE SECTION

Section Inlet; See Figure 08-35A(01)

1шт.

2

87751137

HYD VALVE SECTION

Section, Boom; See Figure 08-35A(02)

1шт.

3

87751139

HYD VALVE SECTION

Section, Bucket; See Figure 08-35A(03)

1шт.

4

87751147

HYD VALVE SECTION

Section, Optional Auxiliary; See Figure 08-35A(04)

1шт.

5

87330847

OUTLET

1шт.

6

85825474

THREADED TIE-ROD,M10 x 193mm L

3шт.
