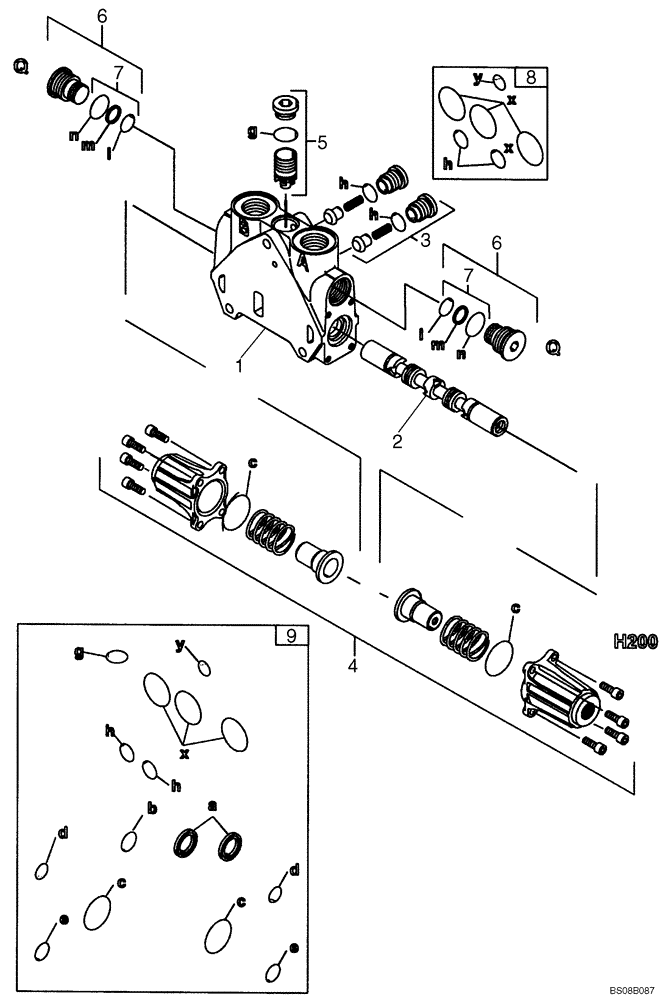

Запчасти Case 590SM (08-35A[04]) - VALVE SECTION - OPTIONS, AUXILIARY HYDRAULICS, 3 SPOOL VALVES (VARIABLE VOLUME PUMP MODELS) (590SM+) (08) - HYDRAULICS

87751147

HYD VALVE SECTION

VALVE SECTION, Option, Auxiliary; Incl. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

85811938

KIT,Check Valve

Component Parts Not Serviced Separately

2шт.

4

87754423

SERVICE KIT

Cap, Hydraulic Operation; Component Parts Not Serviced Separately

1шт.

5

85826345

KIT,Pressure Compensator

Pressure Compensator Kit; Component Parts Not Serviced Separately

1шт.

6

85811937

PLUG

Some Component Parts Not Serviced Separately; Serviceable Includes 85811933, Ref 7 Kit

2шт.

7

85811933

SEAL KIT,Secondary Valve

Includes (2) O-Rings, (1) Thrust Ring; Component Parts Not Serviced Separately

1шт.

8

85819148

SEAL KIT,Between Control Valve Sections

Includes (6) O-Rings; Component Parts Not Serviced Separately

1шт.

9

85824281

SEAL KIT,Control Valve Section, Complete

Includes (14) O-Rings, (2) Lip Seals; Component Parts Not Serviced Separately

1шт.
