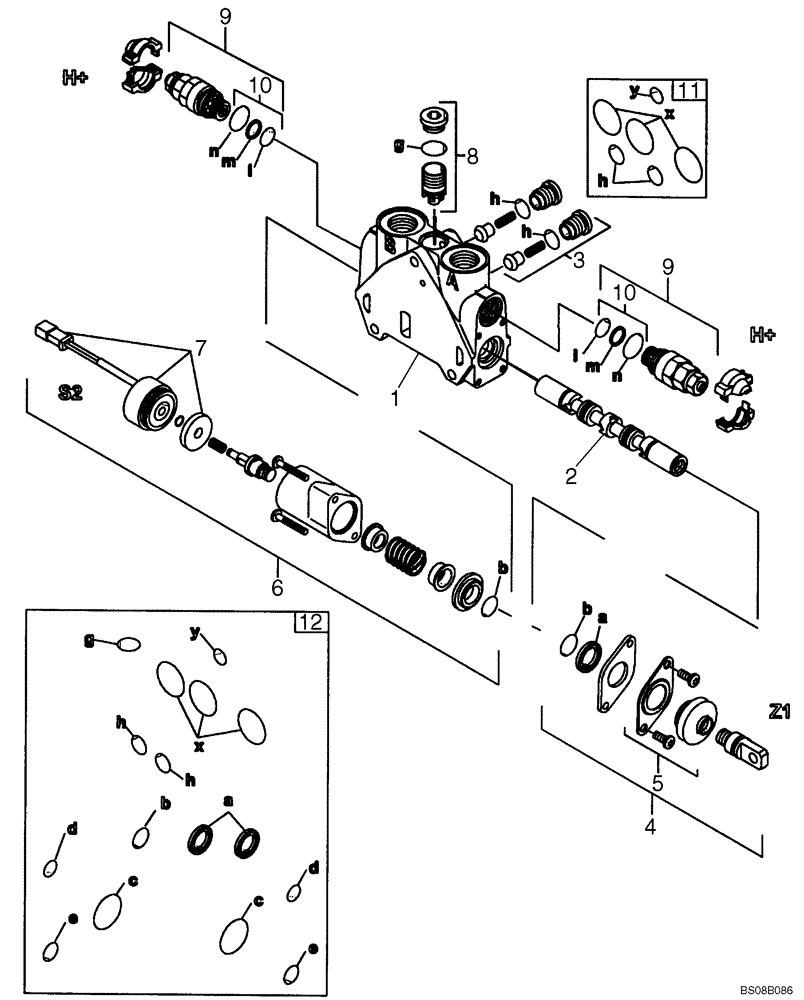

Запчасти Case 590SM (08-35A[03]) - VALVE SECTION - BUCKET, 2 OR 3 SPOOL VALVES (VARIABLE VOLUME PUMP MODELS) (590SM+) (08) - HYDRAULICS

87751139

HYD VALVE SECTION

VALVE SECTION, Bucket; Incl. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

85811938

KIT,Check Valve

Component Parts Not Serviced Separately

2шт.

4

85824278

KIT

Operating Section; Component Parts Not Serviced Separately

1шт.

5

85820130

BOOT

1шт.

6

87754355

SERVICE KIT

Electrical Detent Operation Kit; Component Parts Not Serviced Separately

1шт.

7

87754413

SERVICE KIT

Kit, Solenoid; Component Parts Not Serviced Separately

1шт.

8

85826345

KIT,Pressure Compensator

Pressure Compensator; Component Parts Not Serviced Separately

1шт.

9

85812115

VALVE PRESSURE RELIE

Some Component Parts Not Serviced Separately; Serviceable Includes 85811933, Ref 10 Kit

2шт.

10

85811933

SEAL KIT,Secondary Valve

Includes (2) O-Rings, (1) Thrust Ring; Component Parts Not Serviced Separately

1шт.

11

85819148

SEAL KIT,Between Control Valve Sections

Includes (6) O-Rings; Component Parts Not Serviced Separately

1шт.

12

85824281

SEAL KIT,Control Valve Section, Complete

Seal; Includes (14) O-Rings, (2) Lip Seals; Component Parts Not Serviced Separately

1шт.
