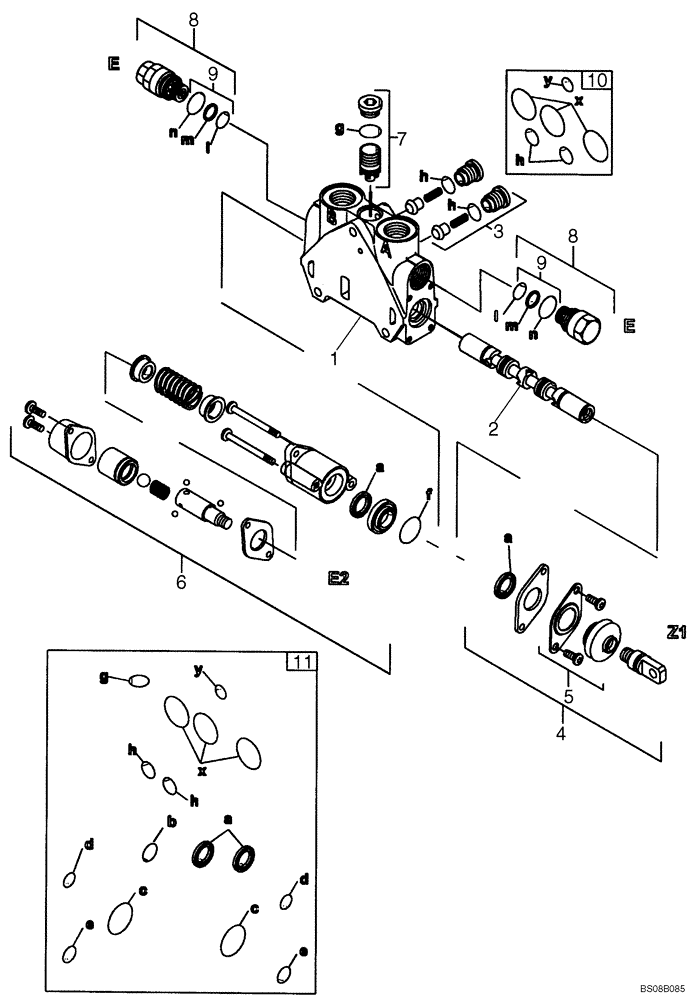

Запчасти Case 590SM (08-35A[02]) - VALVE SECTION - BOOM, 2 OR 3 SPOOL VALVES (VARIABLE VOLUME PUMP MODELS) (590SM+) (08) - HYDRAULICS

87751137

HYD VALVE SECTION

VALVE SECTION, Boom; Incl. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

85811938

KIT,Check Valve

Component Parts Not Serviced Separately

2шт.

4

85824278

KIT

Operating Section; Component Parts Not Serviced Separately

1шт.

5

85820130

BOOT

1шт.

6

87558870

KIT

Operating; Component Parts Not Serviced Separately

1шт.

7

85826345

KIT,Pressure Compensator

Pressure Compensator; Component Parts Not Serviced Separately

1шт.

8

87754322

CHECK VALVE

Valve, Anti-Cativation; Component Parts Not Serviced Separately

2шт.

9

85811933

SEAL KIT,Secondary Valve

Includes (2) O-Rings, (1) Thrust Ring; Component Parts Not Serviced Separately

2шт.

10

85819148

SEAL KIT,Between Control Valve Sections

Includes (6) O-Rings; Component Parts Not Serviced Separately

1шт.

11

85824281

SEAL KIT,Control Valve Section, Complete

Seal; Includes (14) O-Rings, (2) Lip Seals; Component Parts Not Serviced Separately

1шт.
