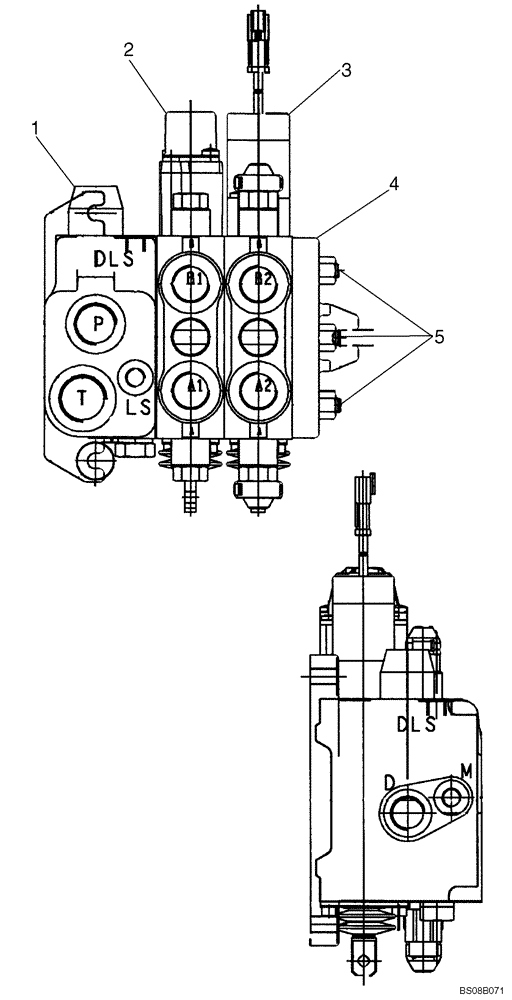

Запчасти Case 590SM (08-34A) - VALVE ASSY - LOADER CONTROL, TWO SPOOL (VARIABLE VOLUME PUMP MODELS) (590SM+) (08) - HYDRAULICS

87654395

CONTROL VALVE

590SM+; Two Spool Loader Valve, Used On Models With Pilot Controls And Variable Volume Pump; Includes Parts Listed Below

1шт.

1

87751123

HYD VALVE SECTION

Section Inlet; See Figure 08-35A(01)

1шт.

2

87751137

HYD VALVE SECTION

Section, Boom; See Figure 08-35A(02)

1шт.

3

87751139

HYD VALVE SECTION

Section, Bucket; See Figure 08-35A(03)

1шт.

4

87330847

OUTLET

1шт.

5

85825475

THREADED TIE-ROD,M10 x 145mm L

3шт.
