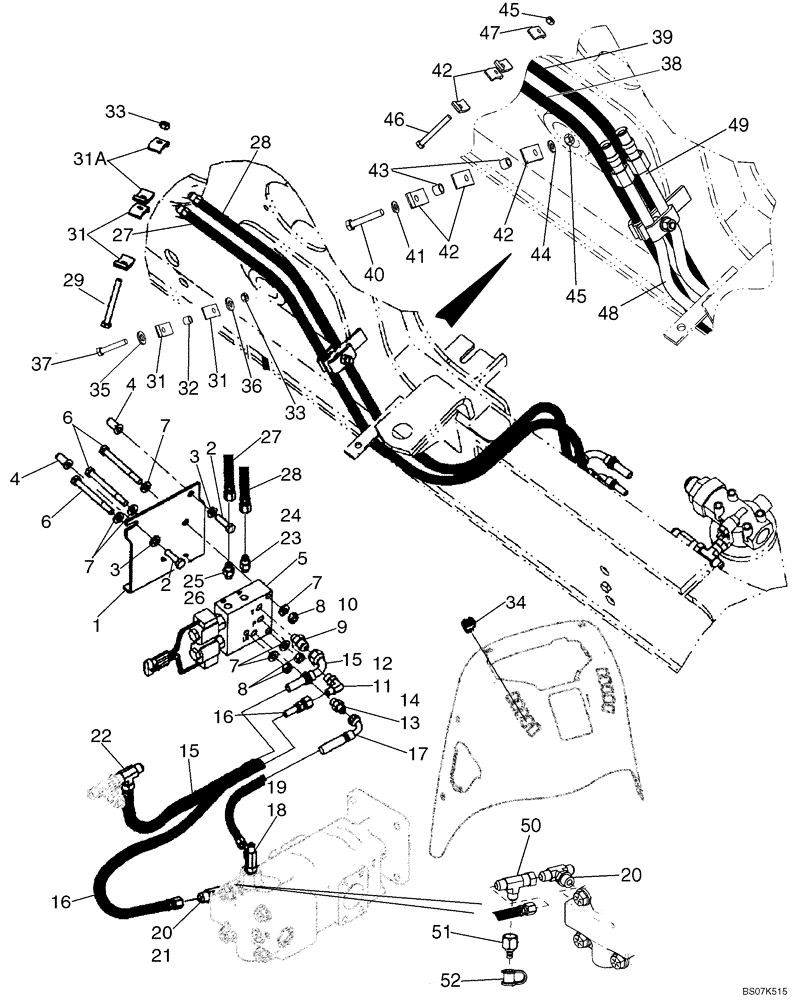

Запчасти Case 590SM (08-26) - HYDRAULICS - COUPLER, LOADER TOOL QUICK (08) - HYDRAULICS

1

87437263

BRACKET

Coupler Valve Mounting

1шт.

2

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

4

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

M10

2шт.

5

87435909

SOLENOID VALVE

Coupler; Loader Tool; See Figure 08-28

1шт.

6

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

3шт.

7

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

6шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

9

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. Ref 10

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref 14

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

87434265

HYDRAULIC HOSE,3/8" ID x 500mm L, 6-1SN

500 mm (19-11/16 in); Coupler, Serial Range: Valve-Filter

1шт.

16

87452402

HYDRAULIC HOSE,3/8" ID x 830mm L, Flex-Pak 2 STF

830 mm (32-11/16 in); Pump to Coupler Pressure Port

1шт.

17

87452403

HYDRAULIC HOSE,1/4" ID x 600mm L, Flex-Pak 2 STF

600 mm (23-5/8 in); Pump to Coupler Valve Load Sense Port

1шт.

18

282428A1

VALVE PRESSURE RELIE

Check Tee; Incl. Ref 19

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 21; Replaces Standard Steering Fitting

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Attaches to Tee At Back Of Filter

1шт.

23

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref 24

1шт.

24

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

25

218-5056

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

Incl. Ref 26

1шт.

26

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

REF

INSTRUCTION

COUPLER ONLY (SEE REF 38-49 FOR CLAMPING ON MODELS WITH COUPLER AND 3-SPOOL LOADER VALVE)

1шт.

27

87427539

HYDRAULIC HOSE,1/4" ID x 1815mm L, 4-FXP2

1815 mm (71-1/2 in); B Port

1шт.

28

87427537

HYDRAULIC HOSE,1/4" ID x 1815mm L, 4-FXP2

1815 mm (71-1/2 in); A Port

1шт.

29

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

1шт.

31

D138055

CLAMP

4шт.

31a

D143846

CLAMP

2шт.

32

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

33

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

34

398675A2

ROCKER SWITCH

Loader Tool Quick Coupler

1шт.

35

892-11010

LOCK WASHER,M10

1шт.

36

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

37

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

Used With Ref 35, 36 Washers; If Used

1шт.

REF

INSTRUCTION

COUPLER AND 3-SPOOL LOADER VALVE (SEE REF 27-37 FOR CLAMPING ON MODELS WITH COUPLER ONLY)

1шт.

38

87427539

HYDRAULIC HOSE,1/4" ID x 1815mm L, 4-FXP2

1815 mm (71-1/2 in); B Port

1шт.

39

87427537

HYDRAULIC HOSE,1/4" ID x 1815mm L, 4-FXP2

1815 mm (71-1/2 in); A Port

1шт.

40

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

1шт.

41

892-11010

LOCK WASHER,M10

1шт.

42

D138055

CLAMP

4шт.

43

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

44

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

45

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

46

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

1шт.

47

D143846

CLAMP

2шт.

48

87478483

HYD TUBE,.625 OD

Loader Clam; A Port

1шт.

49

87449440

TUBE,.625" OD

Loader Clam; B Port

1шт.

50

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

51

192834A1

COUPLING

Diagnostic

1шт.

52

H434163

DUST CAP

1шт.
