Запчасти Case 590SM (08-10A) - HYDRAULICS - BACKHOE BOOM LOCK AND ELECTRICAL CIRCUIT (08) - HYDRAULICS

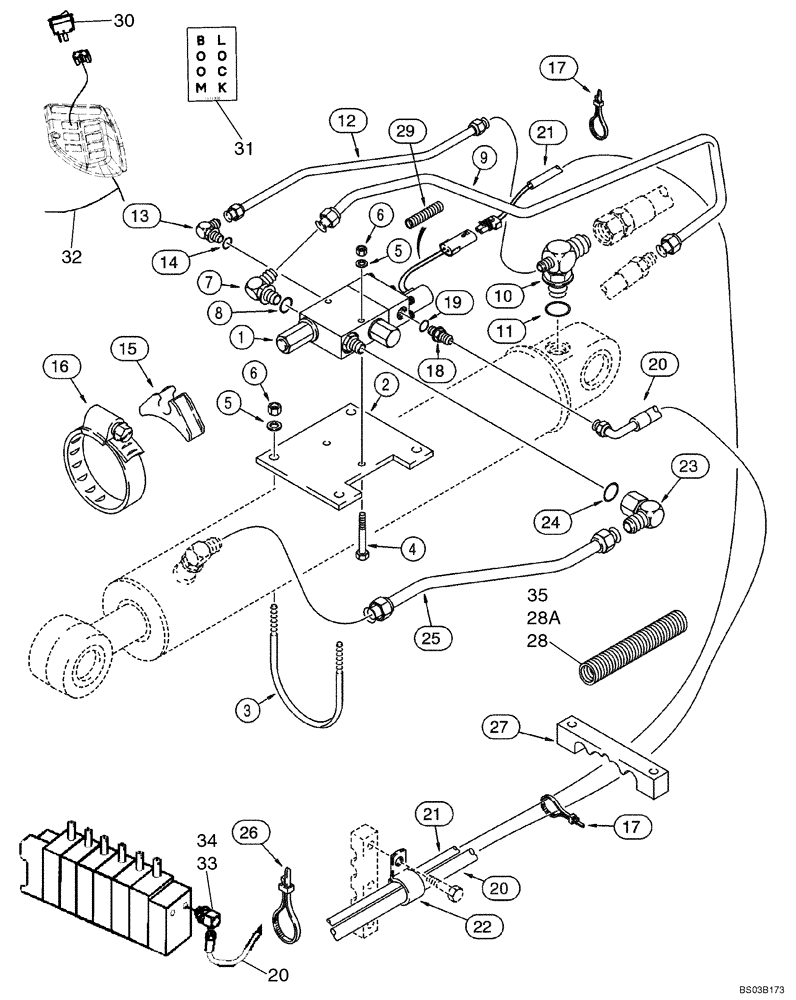

Схема запчастей Case 590SM - (08-10A) - HYDRAULICS - BACKHOE BOOM LOCK AND ELECTRICAL CIRCUIT (08) - HYDRAULICS
17
32
27
12
20
31
5
15
28a
14
2
19
23
8
35
16
21
28
26
20
20
30
25
18
5
1
34
10
22
6
6
21
11
9
29
24
13
17
3
4
33
7

Артикул

Название

Примечание

Количество

399225A1

KIT

Backhoe Boom Lock; Incl. Ref 1 - 35 and Instruction Sheet; Also Includes Boom Lock Valve On Figure 08-59A

1шт.

1

189957A1

VALVE

Solenoid; Backhoe Boom Lock; Incl. (2) 321-6046 Warning Decals; See Figure 08-59A

1шт.

2

D150054

PLATE

Valve mounting

1шт.

3

D150053

BOLT

3/8 in

2шт.

4

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

6шт.

6

231-1446

NUT,3/8" - 16, Gr 5

6шт.

7

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

9

192025A1

TUBE,19.05 mm OD, 680, 196 mm Length

Valve Port; Attaches to Ref 34 Hose on Figure 8-10

1шт.

10

198421A1

ELBOW

Reducer; Boom Cylinder Closed End; Attaches to Ref 23 Hose on Figure 08-10; Incl. Ref 11

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

12

189709A1

TUBE,6.35 mm OD, 450, 60 mm Length

Pilot Port

1шт.

13

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

Incl. Ref 14

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

D142787

SPACER

Rubber

1шт.

16

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

16шт.

18

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

20

189103A1

HYDRAULIC HOSE

3700 mm (145-11/16"), Return; Attaches to Elbow at Backhoe Valve

1шт.

21

189263A1

WIRE HARNESS

Boom Lock Valve to Control Tower Harness

1шт.

22

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

Return Hose

1шт.

23

218-5382

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

Incl. Ref 24

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

25

198532A1

TUBE,19.05 mm OD

Boom Lock Valve to Boom Cylinder Rod End; See Figure 08-10 For Elbow

1шт.

26

D147773

CLAMP

Tie, 11 in

1шт.

27

221329A1

CLAMP

Hose and Harness

1шт.

28

220276A1

SLEEVE

610 mm long, Hose Guard; Ref 20 Hose and Ref 21 Harness, Ahead of Clamp

1шт.

28a

404907A1

SLEEVE

740 mm long, Hose Guard; Ref 20 Hose and Ref 21 Harness, Behind Clamp

1шт.

29

1999528C1

CABLE SHEATH

455 mm long; Harness Protection

1шт.

30

400016A1

SWITCH

Rocker; Boom Lock

1шт.

31

L111356

DECAL

Boom Lock

1шт.

32

399246A1

WIRE HARNESS

, Serial Range: Cab-Solenoid

1шт.

33

189414A1

ELBOW

90 deg; Incl. Ref 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

35

226582A1

HOSE PROTECTION

1850 mm long; Harness Below Floor Plate

1шт.

Выбрано товаров: 37
