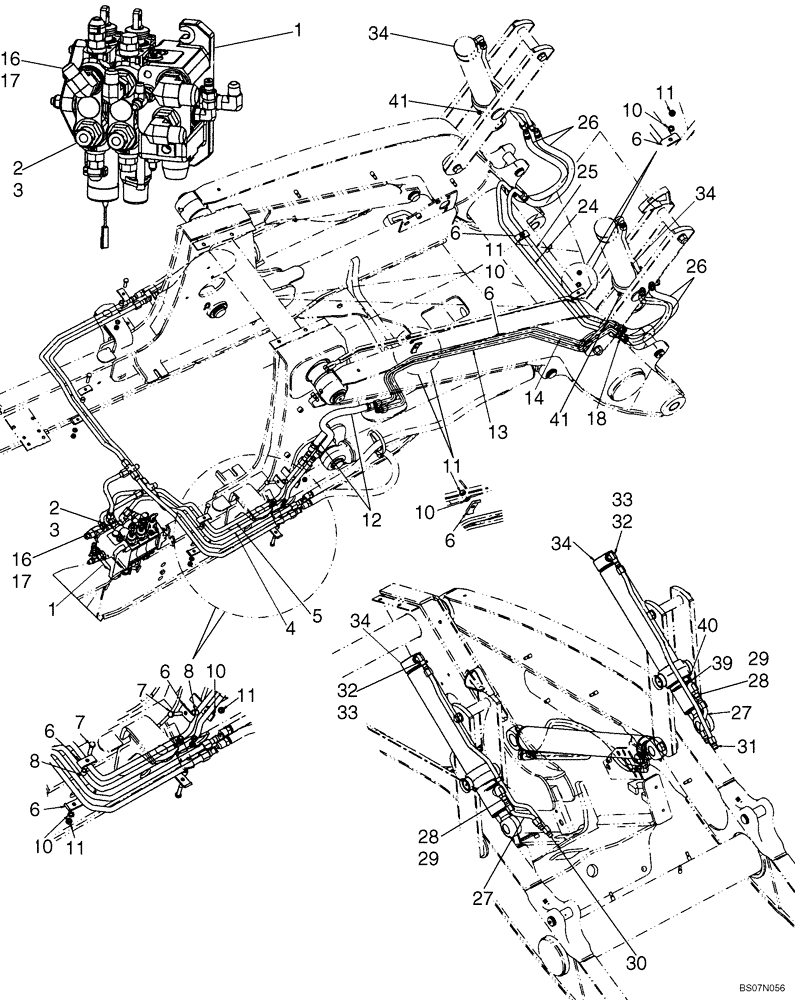

Запчасти Case 590SM (08-05A) - HYDRAULICS - CYLINDER, LOADER BUCKET (VARIABLE VOLUME PUMP MODELS) (590SM+) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
LOADER CONTROL VALVE; For Correct Assembly and Components, See Figures 08-34A, 08-35A; For Mounting, See Figure 09-01A
1шт.
2
218-5063
HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
Incl. Ref 3
1шт.
3
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
4
87656449
HYD TUBE
Upper Bucket Port
1шт.
5
87656441
HYD TUBE
Lower Bucket Port
1шт.
6
D138055
CLAMP
8шт.
7
614-10045
BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8, Full Thd
2шт.
8
120303A1
SPACER,11mm ID x 15.82mm OD x 15mm Thk
2шт.
10
892-11010
LOCK WASHER,M10
7шт.
11
829-1410
NUT,M10 x 1.5, Cl 10.9
7шт.
12
87429287
HYDRAULIC HOSE,7/8" - 14 JIC, 710mm L
710 mm (28 in)
2шт.
13
87716480
HYD TUBE
To Upper Port
1шт.
14
87716482
HYD TUBE
1шт.
16
218-5119
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
Incl. 17
1шт.
17
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
18
218-5220
TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run
2шт.
24
196815A1
TUBE
Rear
1шт.
25
196813A1
TUBE
Front
1шт.
26
371031A1
HYDRAULIC HOSE,3/8" ID x 940mm L
840 mm (33")
4шт.
27
87316049
RIGID TUBE
Bucket Cylinder Rod End
2шт.
28
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
Incl. Ref 29
2шт.
29
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
Boss Seal
1шт.
30
87316270
TUBE
Right-Hand Cylinder Closed End
1шт.
31
87316264
RIGID TUBE
Left-Hand Cylinder Closed End
1шт.
32
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
Incl. Ref 33
2шт.
33
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
Boss Seal
1шт.
34
255756A1
CYLINDER ASSY.,Double Acting, 44.4mm Rod, 537.5mm Stroke
82.6 ID x 538 mm strk; Loader Bucket Cylinder; See Figure 08-63
2шт.
39
L79937
SADDLE
2шт.
40
214-1472
HOSE CLAMP,#72, 4.06" - 5", Type F Worm
2шт.
41
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
2шт.
