Запчасти Case 590SM (08-04A) - HYDRAULICS - CYLINDER, LOADER LIFT (VARIABLE VOLUME PUMP MODELS) (590SM+) (08) - HYDRAULICS

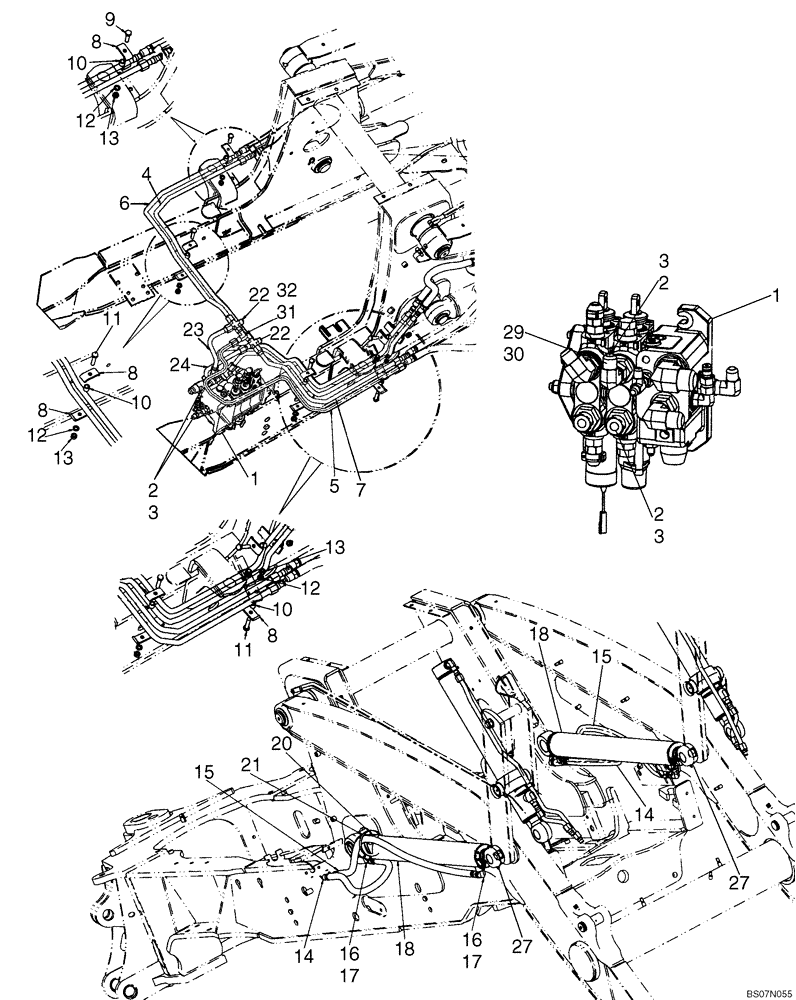

Схема запчастей Case 590SM - (08-04A) - HYDRAULICS - CYLINDER, LOADER LIFT (VARIABLE VOLUME PUMP MODELS) (590SM+) (08) - HYDRAULICS
8
2
5
4
2
15
22
3
12
2
1
18
9
16
7
21
24
10
12
29
20
13
13
14
13
18
1
3
6
8
12
11
17
8
23
27
14
30
32
31
8
15
17
10
22
10
27
3
11
16

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

LOADER CONTROL VALVE; For Correct Assembly and Components, See Figures 08-34A, 08-35A; For Mounting, See Figure 09-01A

1шт.

2

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

87622718

HYD TUBE,.625" OD

Upper Lift Port

1шт.

5

87712299

HYD TUBE

Lower Lift Port

1шт.

6

87622714

HYD TUBE,.625" OD

Lower Lift Port

1шт.

7

87642658

HYD TUBE

Upper Lift Port

1шт.

8

D138055

CLAMP

5шт.

9

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

10

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

4шт.

11

614-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8, Full Thd

3шт.

12

892-11010

LOCK WASHER,M10

4шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

14

87443150

HYDRAULIC HOSE,7/8" - 14 JIC, 740mm L

740 mm (29-5/32 in)

2шт.

15

87443149

HYDRAULIC HOSE,7/8" - 14 JIC, 1130mm L

1130 mm (44-1/2 in)

2шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 17

4шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

133936A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 766mm Stroke

82.6 ID x 766 mm strk; Loader Lift Cylinder; See Figure 08-62

2шт.

20

D142787

SPACER

2шт.

21

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

22

218-655

4 WAY CONNECTION,7/8"-14, 37 Degree

2шт.

23

87666330

HYD TUBE

Upper Lift Port

1шт.

24

87666339

HYD TUBE

Lower Lift Port

1шт.

26

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

28

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Not Illustrated

2шт.

29

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Incl. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

31

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Incl. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 30
