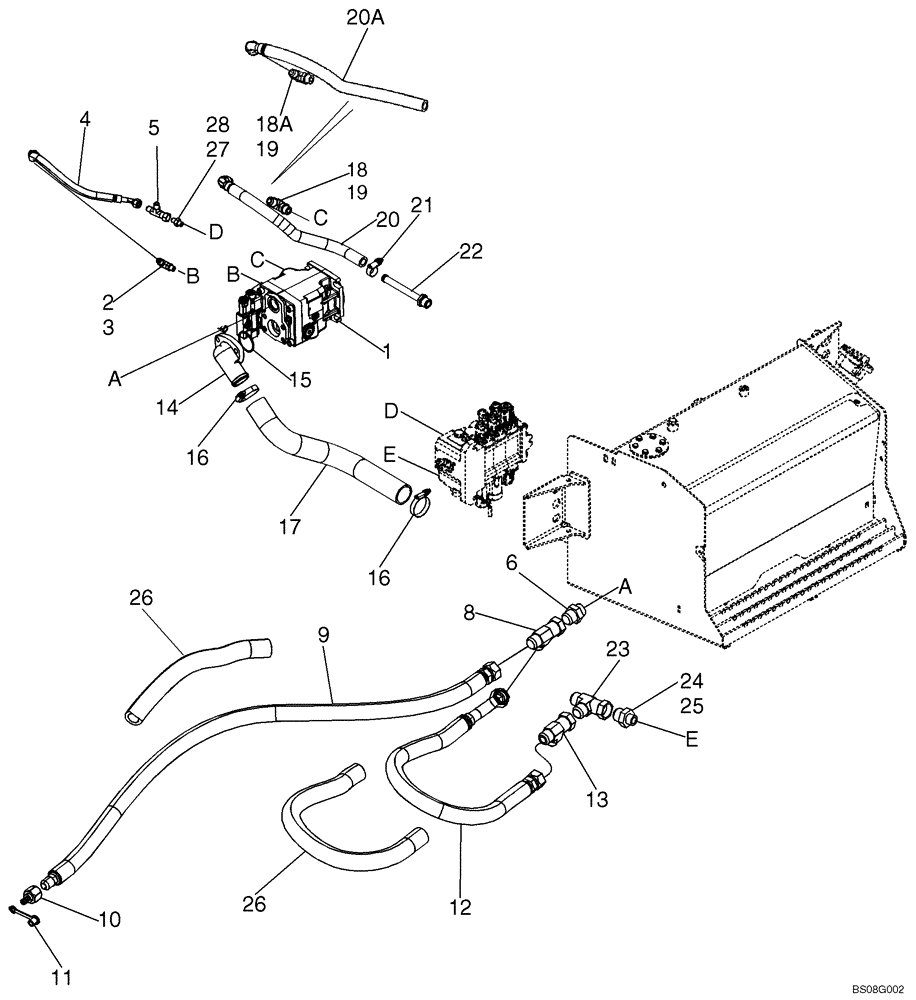

Запчасти Case 590SM (08-02B) - HYDRAULICS - VARIABLE VOLUME PUMP TO BACKHOE VALVE AND LOADER VALVE (590SM+) (08) - HYDRAULICS

REF

INSTRUCTION

MODELS WITH VARIABLE VOLUME PUMP

1шт.

1

87735166

HYDRAULIC PUMP,75 CC

Variable Volume; See Figure 08-02D For Component Parts; See 08-02C For Mounting; Replaces 87711786

1шт.

2

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 3

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

87728727

HYDRAULIC HOSE

410 mm; Variable Volume Pump To Loader Control Valve

1шт.

5

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

9

87743070

HYDRAULIC HOSE

1270 mm; Attenuator

1шт.

10

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

1шт.

11

H434163

DUST CAP

1шт.

12

87475899

HOSE ASSY.,25.4mm ID x 1188mm L, SAE 100R17

1188 mm; Variable Volume Pump To Loader Control Valve

1шт.

13

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

Uni-Directional Hydraulics Only

1шт.

14

87727923

FLANGE

Inlet

1шт.

15

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

16

259044A1

CLAMP

2шт.

17

87729268

HOSE,50.800 mm ID x 421.50 mm, SAE 30R7

Suction

1шт.

18

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Incl. 19; Used With 87750357 Hose, Ref 20

1шт.

18a

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 19; Used With 87485244 Hose, Ref 20A

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

87750357

HYDRAULIC HOSE

1-1/16-12, 90 degree swivel; 564 mm; Variable Volume Pump Drain

1шт.

20a

87485244

HYDRAULIC HOSE

7/8-14, 90 degree swivel; 564 mm; Variable Volume Pump Drain

1шт.

21

277678A1

CLAMP,Constant Torque 1 1/8 Inch

1шт.

22

87624932

FITTING

1шт.

23

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

24

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 25

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

2шт.

27

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 28

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
