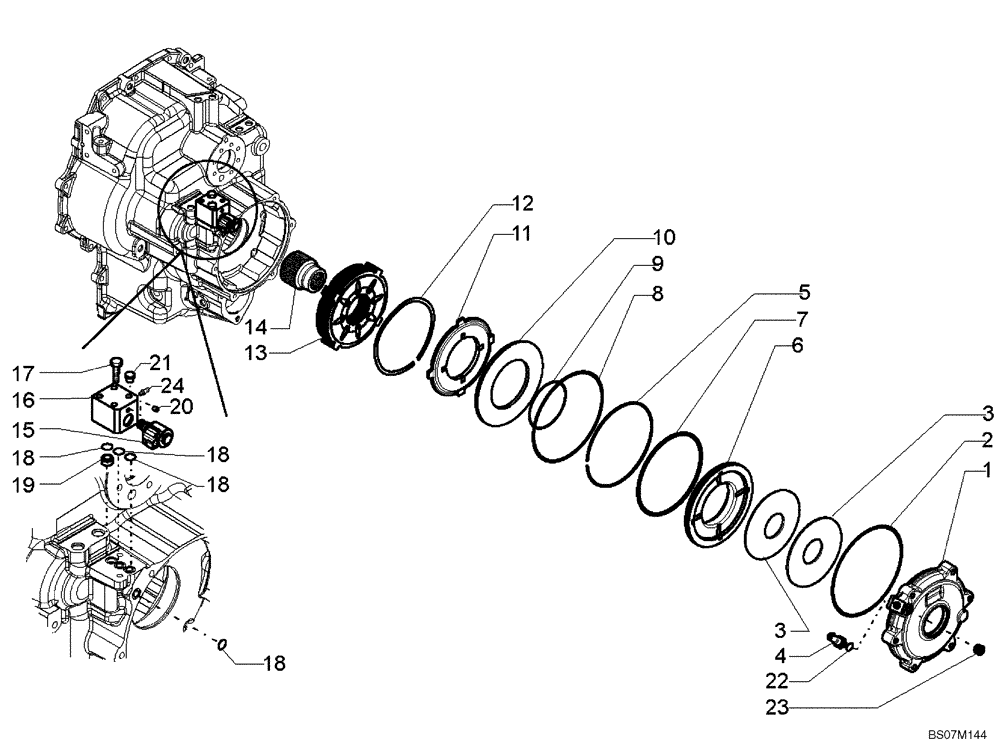

Запчасти Case 590SM (07-01[02]) - TRANSMISSION ASSY, 4WD POWERSHIFT (590SM+) - BRAKE, PARKING (07) - BRAKES

87567534

TRANSMISSION

Powershift Transmission, Four Wheel Drive; Incl Ref 1 - 24; Also Includes Parts On Figures 06-31 - 06-38, 07-01(02)

1шт.

1

87701309

COVER

Brake

1шт.

2

87701310

O-RING,0.103" Thk x 8.237" ID, -172, Cl 5, 75 Duro

1шт.

3

363485A1

BELLEVILLE WASHER,61mm ID x 170mm OD x 4.6mm Thk

2шт.

4

87701313

SENSOR

Pressure

1шт.

5

87701315

RING

Stop

1шт.

6

87701317

PISTON

Brake

1шт.

7

87701318

SEALING RING

SEALRING

1шт.

8

87701320

O-RING

1шт.

9

87701321

SEALING RING

SEALRING

1шт.

10

87701323

RETAINING PLATE

1шт.

11

87701324

BRAKE PLATE

Brake Counterplate

1шт.

12

87701325

SPACER

5шт.

13

87701327

BRAKE PACKAGE

1шт.

14

87701328

BUSHING

Link Bushing

1шт.

15

87701329

SOLENOID

1шт.

16

87701330

CONTROL BLOCK

1шт.

17

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

2шт.

18

346583A1

O-RING

4шт.

19

87701333

ORIFICE

1шт.

20

139312A1

PLUG,Expansion, 6mm OD

2шт.

21

NSS

NOT SOLD SEPARAT

PLUG, Shipping Plug

2шт.

22

100760A1

O-RING

1шт.

23

E135809

PLUG

9/16

1шт.

24

933781R1

LUBE NIPPLE,M10 x 1

1шт.
