Запчасти Case 590SM (06-35) - TRANSMISSION ASSY, 4WD POWERSHIFT (590SM+) - SHAFT, INPUT & PTO (06) - POWER TRAIN

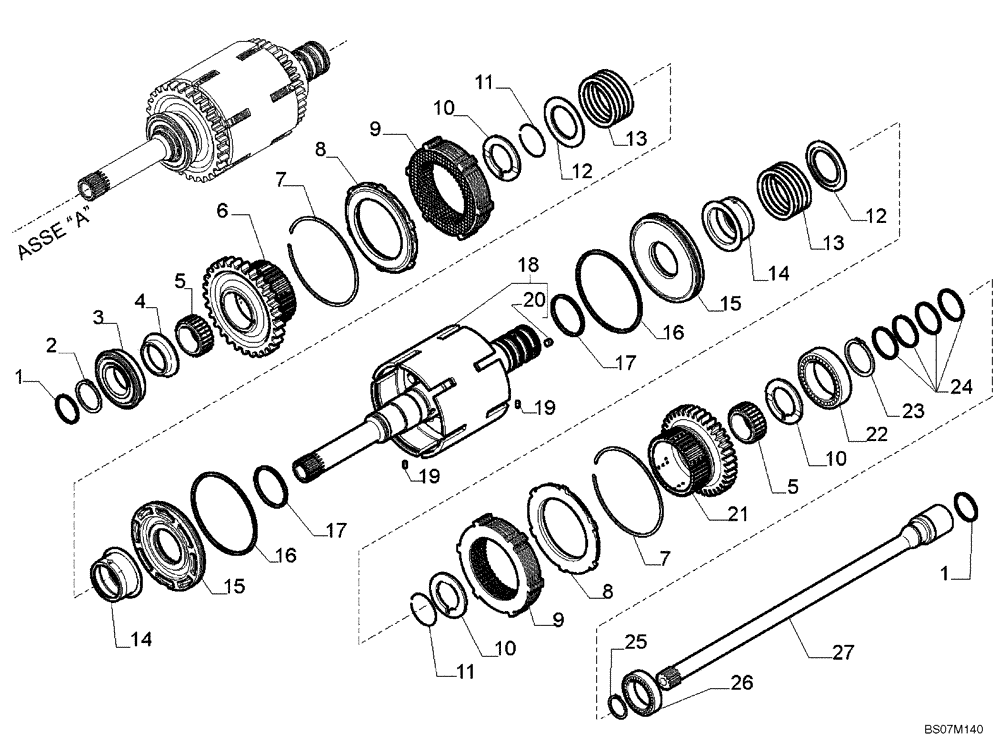

Схема запчастей Case 590SM - (06-35) - TRANSMISSION ASSY, 4WD POWERSHIFT (590SM+) - SHAFT, INPUT & PTO (06) - POWER TRAIN
26
1
6
17
12
13
3
20
17
21
7
5
23
22
19
7
10
10
24
18
10
14
9
5
8
27
2
16
13
15
9
11
1
15
8
16
14
25
4
12
11
19

Артикул

Название

Примечание

Количество

87567534

TRANSMISSION

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 27; Also Includes Parts On Figures 06-31 - 06-38, 07-01(02)

1шт.

1

358645A1

SEALING RING

2шт.

2

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

1шт.

3

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

4

358635A1

SPACER

68 x 45 x 105

1шт.

5

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

2шт.

6

87705457

GEAR,45T

Reverse, 45T

1шт.

7

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

RING, LOCK

2шт.

8

310519A1

PLATE

Clutch Plate Lock Ring

2шт.

9

87705458

CLUTCH OVERHAUL KIT

Forward/Reverse

2шт.

10

358640A1

WASHER

60 x 50 x 4

3шт.

11

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

RING, LOCK

2шт.

12

181161A1

PLATE, THRUST

Lock Spring Cover

2шт.

13

358637A1

SPRING

2шт.

14

358641A1

TRANSMISSION SLEEVE

Clutch

2шт.

15

358644A1

PISTON

Clutch

2шт.

16

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

SEALRING

2шт.

17

358642A1

SEALING RING

SEALRING

2шт.

18

87525849

REPAIR KIT

Inner Shaft Assy; Incl Ref 20

1шт.

19

181108A1

SPLIT PIN,3mm OD x 8mm L

D3x8

2шт.

20

139312A1

PLUG,Expansion, 6mm OD

D6x5, 84 Rivet

4шт.

21

87705459

GEAR,37T

Forward, 37T

1шт.

22

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

1шт.

23

800-1150

SNAP RING,M50, Ext

1шт.

24

87429984

RING

Seal

4шт.

25

800-1130

SNAP RING,M30, Ext

1шт.

26

87429983

BALL BEARING,30mm ID x 55mm OD x 13mm W

1шт.

27

87705460

PTO SHAFT

1шт.
