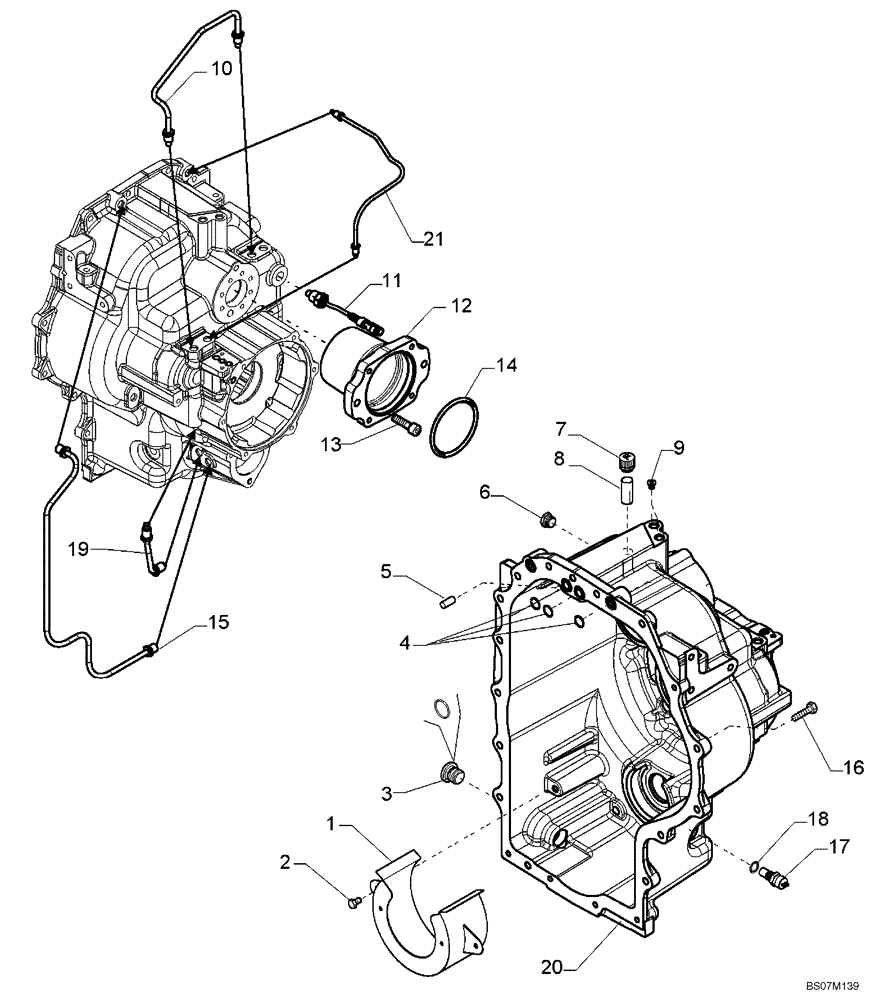

Запчасти Case 590SM (06-32) - TRANSMISSION ASSY, 4WD POWERSHIFT (590SM+) - HOUSING, REAR & THERMOSTAT (06) - POWER TRAIN

87567534

TRANSMISSION

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 21; Also Includes Parts On Figures 06-31 - 06-38, 07-01(02)

1шт.

1

87705445

BRACKET

Guard

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

3

100557A1

PLUG, DRAIN,M30 x 2

Includes 238-6121 O-Ring

1шт.

4

181141A1

O-RING,17.12mm ID x 2.62mm Width

3шт.

5

K260177

PIN

2шт.

6

NSS

NOT SOLD SEPARAT

Plug

2шт.

7

1530028C1

BREATHER

1шт.

8

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

Breather

1шт.

9

E135809

PLUG

2шт.

10

87705446

TUBE

Lubrication

1шт.

11

87705447

SENSOR

1шт.

12

87701269

FLANGE

1шт.

13

87705895

BOLT,TCEI, M10 x 25mm, Cl 8.8

M10 x 25

7шт.

14

87429982

O-RING

1шт.

15

87705448

TUBE

Four Wheel Drive

1шт.

16

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

13шт.

17

87705451

SENSOR

Speed

1шт.

18

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

19

87705452

TUBE

Lubrication

1шт.

20

87705453

TRANSMISSION HOUSING

Rear Half Housing

1шт.

21

87705455

TUBE

Lubrication

1шт.
