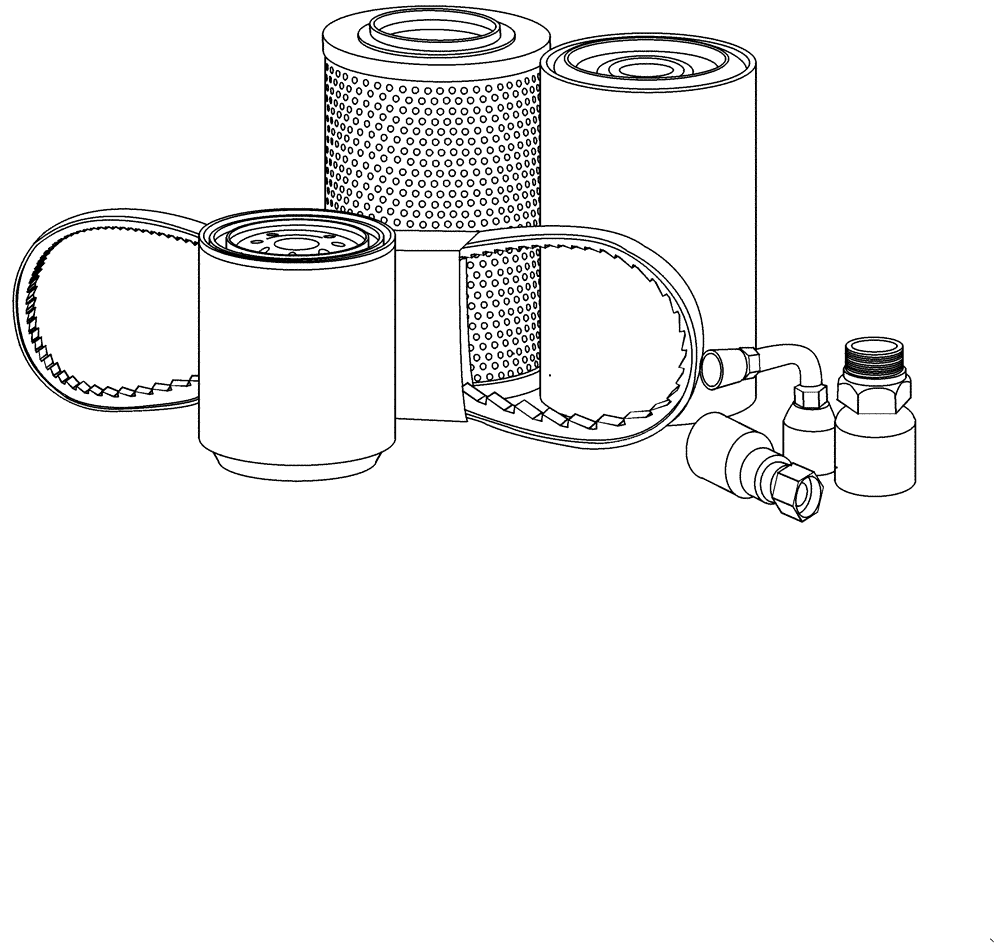

Запчасти Case 590SM (00-05[01]) - FILTERS & CAPACITIES (00) - PICTORIAL INDEX

*

Engine Oil Capacity With Filter Change, 13.6 Liters (3.6 US Gallons)

1шт.

*

Cooling System Capacity With Heater, 16.85 Liters (17.8 US Quarts)

1шт.

*

Cooling System Capacity Without Heater, 16.09 Liters (17 US Quarts)

1шт.

*

Coolant Type, CNH XHD Coolant-Antifreeze

1шт.

*

Engine Oil Type, CASE No. 1 SAE 15W40

1шт.

*

Hydraulic Oil Capacity Reservoir With Filter 47.13 Liters (12.45 US Gallons)

1шт.

*

Hydraulic Oil Capacity, Entire System 121.89 Liters, (32.2 US Gallons)

1шт.

*

Hydraulic Oil Capacity, Entire System With Extendahoe, 127.57 Liters (33.7 US Gallons)

1шт.

*

Hydraulic Oil Capacity, Reservoir Without Filter, 45.24 Liters (11.95 US Gallons)

1шт.

*

Hydraulic Oil Type, CASE Akcela Hy-Tran Ultra

1шт.

*

Fuel Tank Capacity, 159 Liters (42 US Gallons), No. 2 Diesel

1шт.

*

Front Drive Axle Capacity, Center Bowl, 6.74 Liters (7.12 US Quarts)

1шт.

*

Front Drive Axle Capacity, Entire System, 8.03 Liters (8.48 US Quarts)

1шт.

*

Front Drive Axle Capacity, Wheel End (Each), 0.65 Liters (0.69 US Quarts)

1шт.

*

Front Drive Axle Oil Type, CASE Transaxle SAE 80W140

1шт.

*

Rear Drive Axle Oil Type, CASE Transaxle SAE 80W140

1шт.

*

Rear Drive Axle Oil, Capacity Entire System, 18.66 Liters (19.72 US Quarts)

1шт.

*

Transmission Capacity, 2 Wheel Drive Entire System, 17.03 Liters (18.0 US Quarts)

1шт.

*

Transmission Capacity, 2 Wheel Drive Refill, Without Filter Change, 10.52 Liters (11.12 US Quarts)

1шт.

*

Transmission Capacity, 4 Wheel Drive Entire System, 19.42 Liters (20.52 US Quarts)

1шт.

*

Transmission Capacity, 4 Wheel Drive Powershift, Refill With Filter Change, 17.98 Liters (19 US Quarts)

1шт.

*

Transmission Capacity, 4 Wheel Drive Powershift, Refill Without Filter Change, 11.36 Liters (12 US Quarts)

1шт.

*

Transmission Capacity, 4 Wheel Drive Refill, With or Without Filter Change, 12.93 Liters (13.72 US Quarts)

1шт.

*

Transmission Oil Type, CASE Akcela Hy-Tran Ultra

1шт.
