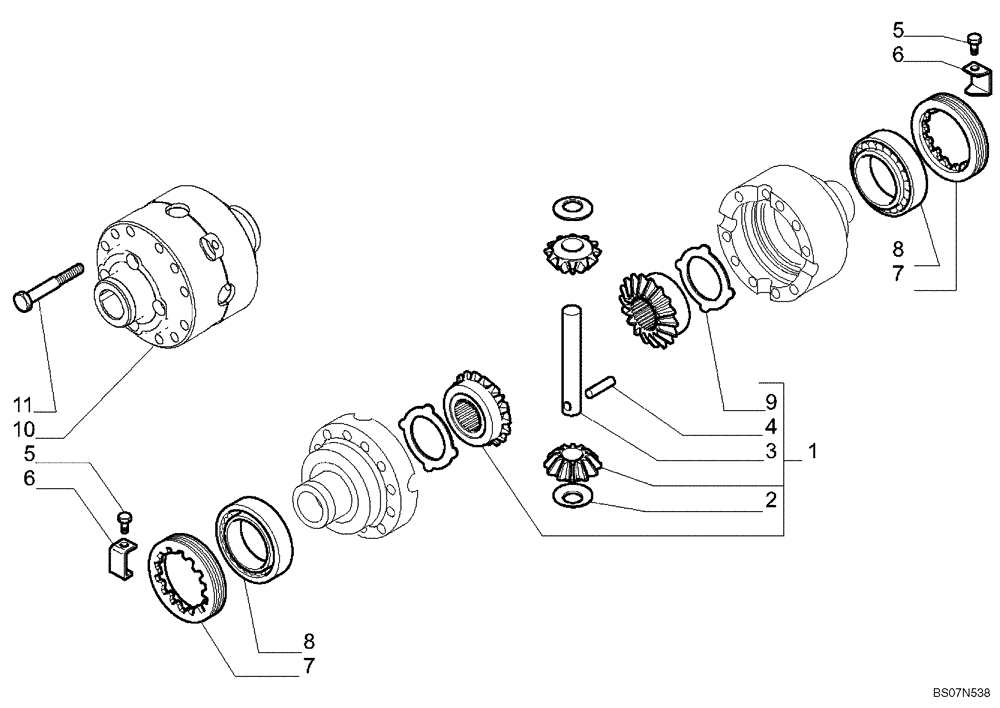

Запчасти Case 590SM (06-07) - AXLE, FRONT DRIVE - DIFFERENTIAL (06) - POWER TRAIN

86994226

4WD AXLE ASSY

Front, Incl. Ref 1 - 10; Also Includes Parts On Figures 06-02 - 06-08

1шт.

1

231397A1

SERVICE KIT

Differential Gear Set, Incl. Ref 2 - 4, 9

1шт.

2

9966352

THRUST WASHER

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft

1шт.

4

9966356

ROLL PIN,7mm OD x 40mm L

1шт.

5

112486A1

BOLT,Hex, M6 x 12

2шт.

6

5194191

LOCKING PLATE

2шт.

7

5194190

RING NUT,M94 x 2

2шт.

8

561201

TAPERED BEARING,50mm ID x 90mm OD x 21.75mm W

2шт.

9

5194183

DISC

2шт.

10

85827068

HOUSING

2шт.

11

5194194

BOLT,Hex, M10 x 75

12шт.
