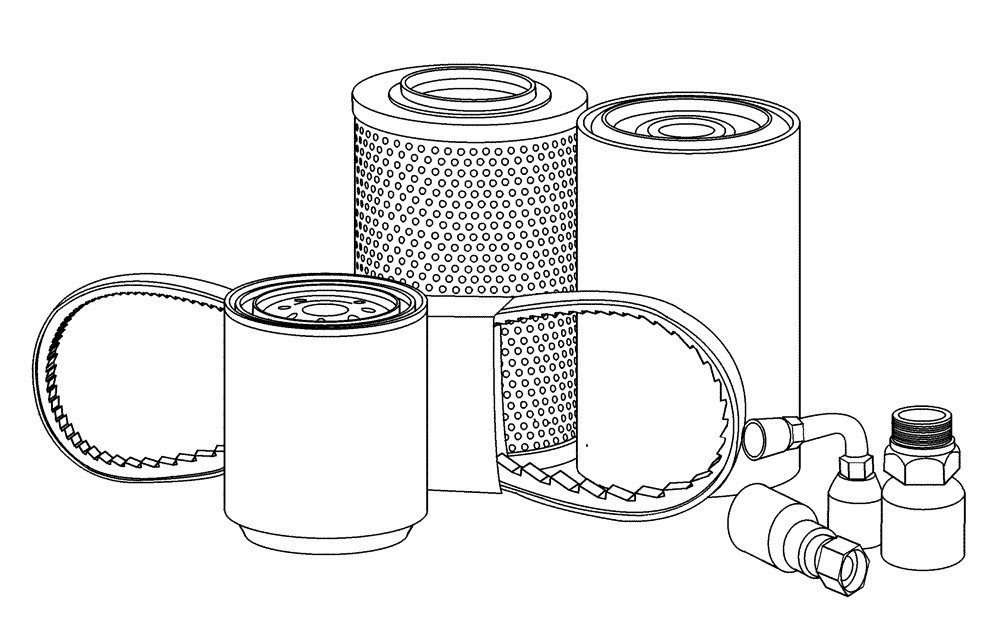

Запчасти Case 590SM (00-01[02]) - INITIAL STOCKING LIST (ISL) 590SM+ (00) - PICTORIAL INDEX

LIST A

Parts Required For Preventative Maintenance

1шт.

1

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

5-Micron

1шт.

2

87803444

FUEL FILTER,79.2mm OD x 109.2mm L

30 Micron

1шт.

3

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

1шт.

4

84239751

HYDRAULIC OIL FILTER

1шт.

5

360260A2

CAB FILTER,A/C, 740mm L x 140.4mm W x 50mm Thk, Pleatloc

Air

1шт.

6

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary Air (8-In.)

1шт.

7

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary Element (8-In.)

1шт.

8

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Transmission Oil Cartridge

1шт.

9

377594A5

FILTER

Cab Air Recirculation

1шт.

10

85826230

V-BELT,28.48 mm W x 1440.00 mm L, 8 Ribs

Fan

1шт.

11

87415774

V-BELT,28.28 mm W x 1406.00 mm L

Fan

1шт.

12

87548076

BELT,0.55" W x 47.95" L, 4 Ribs

Air Conditioning Compressor

1шт.

LIST B

Parts Required For Preventative Maintenance And Basic Repair

1шт.

17

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Water Coolant

1шт.

18

85803019

RADIATOR CAP

Deaeration Bottle

1шт.

19

87443080

WORK LAMP,Halogen, 12V, 55W, Clear

Front/Rear, Flood/Light/A

6шт.

20

87343247

FRONT LAMP,Halogen, 12V, 55W, Clear

Front Driving Light/A

2шт.

21

44995032

LAMP,Amber

Left Front Corner Amber

1шт.

22

44995033

LAMP,Amber

Right Front Corner Amber

1шт.

23

87415023

LIGHT ASSY.,12V, Amber/Red

Right Rear Corner Amber/Red Light/A

1шт.

24

87415024

TAIL LAMP,12V, Amber/Red

Left Rear Corner Amber/Red Light/A

1шт.

25

87578455

RELAY,12V, Turn Signal and Hazard

Hazard/Turn Signal

1шт.

26

D135384

LAMP,12V

Hazard/Turn Signal & Flasher

4шт.

27

D121152

LAMP,12V

Stop/Tail Lamp, Red

2шт.

28

282775A1

IGNITION SWITCH

W/Keys

1шт.

29

2852136

CAP,48mm ID x 56mm OD x 18mm W

Oil Fill Tube

1шт.

30

2830734

THERMOSTAT

Coolant Kit

1шт.

31

2852154

GASKET,50mm ID x 59.25mm OD x 16.23mm Thk

Thermostat

1шт.

32

4899115

O-RING,2.2mm Thk x 11.3mm ID

Seal (2855287)

1шт.

33

4894641

CAPTIVE WASHER SCREW,M12 X 1.25 X 31mm

Hex-Head Flanged Cap

1шт.

34

2852091

SCREW

Shearable, M8 X 1.25 X 31

1шт.

35

2830266

FUEL PUMP

Transfer

1шт.

2830266R

REMAN-FUEL LIFT PUMP

590SM+ SERIES 3, TIER 3, UT59P303(2/08-)

1шт.

2830266C

FUEL PUMP

Return Number

1шт.

36

2852105

TUBE

Fuel Supply

1шт.

37

2852108

RIGID TUBE

Fuel Supply

1шт.

38

2852113

TUBE,268, 106 mm Length

Fuel Drain Tube

1шт.

39

J903380

SEAL

Banjo Connector

1шт.

40

8097552

SCREW

Connector Screw

1шт.

41

2852125

DIPSTICK,351.5mm L

Engine Oil Level Indicating Dipstick

1шт.

42

2853410

FILLER CAP,Female

Oil Plug

1шт.

43

2852889

PRESSURE SWITCH

Oil Pressure

1шт.

44

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

Male, Assembly

1шт.

45

2852102

PIPE

Turbocharger Drain Oil Connector

1шт.

46

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

Dipper

2шт.

47

87669401

WIPER BLADE,400mm L

Rear Windshield

1шт.

48

87669761

WIPER BLADE,600mm L

Front Windshield

1шт.

49

87355337

RELAY,12V, 45A

12-Volt, 40-Amp

12шт.

50

D132076

SPACER,23.75mm ID x 38.07mm OD x 135mm L

Loader Dump Link Bushing

4шт.

51

87528978

RADIATOR HOSE,45.00 mm ID x 76.50 mm, SAE J20, SAE 20 R4 Class C

Upper

1шт.

52

87454378

RADIATOR HOSE,57.15 mm ID x 217.70 mm, SAE 20R4 CLASS D-1

Lower

1шт.

53

87674844

RESERVOIR, COOLANT E,3L

De-Aeration Bottle/A, W/Cap

1шт.

54

87335469

LOCKABLE FUEL CAP,Male, Lockable

Lockable, Tank

1шт.

55

138595A1

FILLER CAP,Male, Lockable

Hydraulic Tank

1шт.

56

122535A1

SEAL KIT

Backhoe Swing Cylinder

2шт.

57

84154316

SEAL KIT

Dipper Cylinder

1шт.

58

1542919C4

SEAL KIT

Boom Cylinder

1шт.

59

1542923C2

SEAL KIT,63.5mm Rod x 88.9mm Bore

Backhoe Bucket Cylinder

1шт.

60

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Loader Bucket Cylinder

2шт.

61

1543267C1

SEAL KIT

4-In-1 Bucket, & Extend-A-Hoe, Cylinder

3шт.

62

84155085

SEAL KIT,Reapir, 108.0 x 50.8

Stabilizer Cylinder

2шт.

63

84155087

SEAL KIT

Stabilizer Cylinder Seal

2шт.

64

191747A1

SEAL KIT

Backhoe Swing Cylinder

2шт.

65

1543260C1

SEAL KIT

Loader Lift Cylinder

2шт.

66

87619722

SEAL KIT

Backhoe Quick Coupler Cylinder

1шт.

67

87714907

HYDRAULIC HOSE

Loader/Coupler Pressure/A, Var. Vol.

1шт.

68

87701254

HYDRAULIC HOSE

Comfort Steer Pressure /A

1шт.

69

87668166

HYDRAULIC HOSE

Clam Bucket Pressure

1шт.

70

87666905

HOSE ASSY.

Loader/Hammer Valve Pressure /A, Var. Vol.

1шт.

71

87663936

HOSE ASSY.

Loader/Steering Pump Pressure /A

1шт.

72

87662932

HYDRAULIC HOSE,6.3mm ID x 525mm L, SAE 100R16

Clam Bucket/Loader, Var. Vol.

1шт.

73

87475899

HOSE ASSY.,25.4mm ID x 1188mm L, SAE 100R17

Var. Vol. Pump/Backhoe Pressure/A

1шт.
