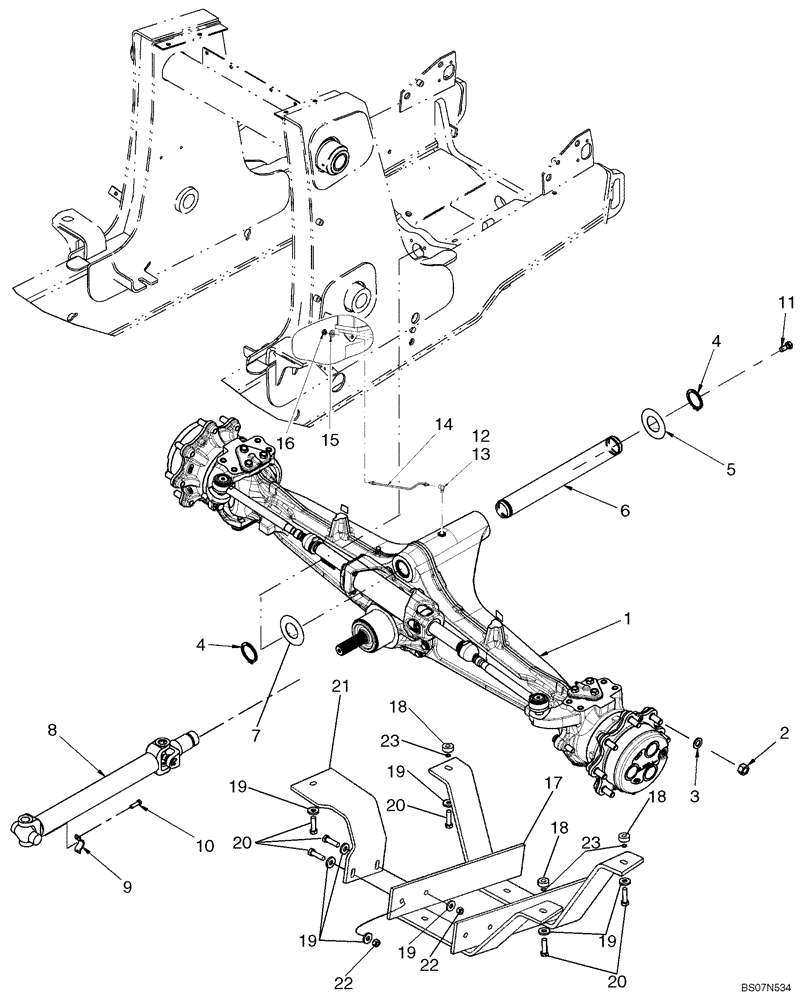

Запчасти Case 590SM (06-01) - AXLE, FRONT DRIVE - MOUNTING (06) - POWER TRAIN

1

86994226

4WD AXLE ASSY

Front; See Figures 06-02 - 06-08

1шт.

86994226R

Axle Assy, 4WD, Remanufactured

1шт.

86994226C

Axle Assy, 4WD, Core

1шт.

2

100092

WHEEL NUT,M18 x 1.5, Cl 8

16шт.

3

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

16шт.

4

800-44050

SNAP RING,M50, Ext

2шт.

5

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

Thrust

1шт.

6

87404197

PIVOT PIN,50mm OD x 426.5mm L

1шт.

7

191796A1

WASHER,51.6mm ID x 92mm OD x 1.98mm Thk

2 x 4 x 1/16

1шт.

8

87694656

DRIVE SHAFT

See Figure 06-09

1шт.

9

87538515

KIT

2шт.

10

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16

4шт.

11

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

12

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Incl. 13

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

87572760

HOSE ASSY.,6.4mm ID x 533mm L

7/16-20 Female Swivel x 1/8 NPSN x 21 inch; Includes Grease Fitting; Remote Lube

1шт.

15

495-11047

WASHER,7/16", SAE

1шт.

16

F53473

LOCK NUT,1/8-27 NPSM

Hex

1шт.

17

282038A2

GUARD

Driveshaft

1шт.

18

87649398

SPACER

3шт.

19

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

8шт.

20

1637759

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9, Full Thd

6шт.

21

87699880

BRACKET

1шт.

22

829-1412

NUT,M12, Cl 10.9

2шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

24

87632884

45 ELBOW

Includes 237-6016 O-Ring; Not Illustrated

1шт.

25

87632883

HYD CONNECTOR

Includes 237-6016 O-Ring; Not Illustrated

1шт.
