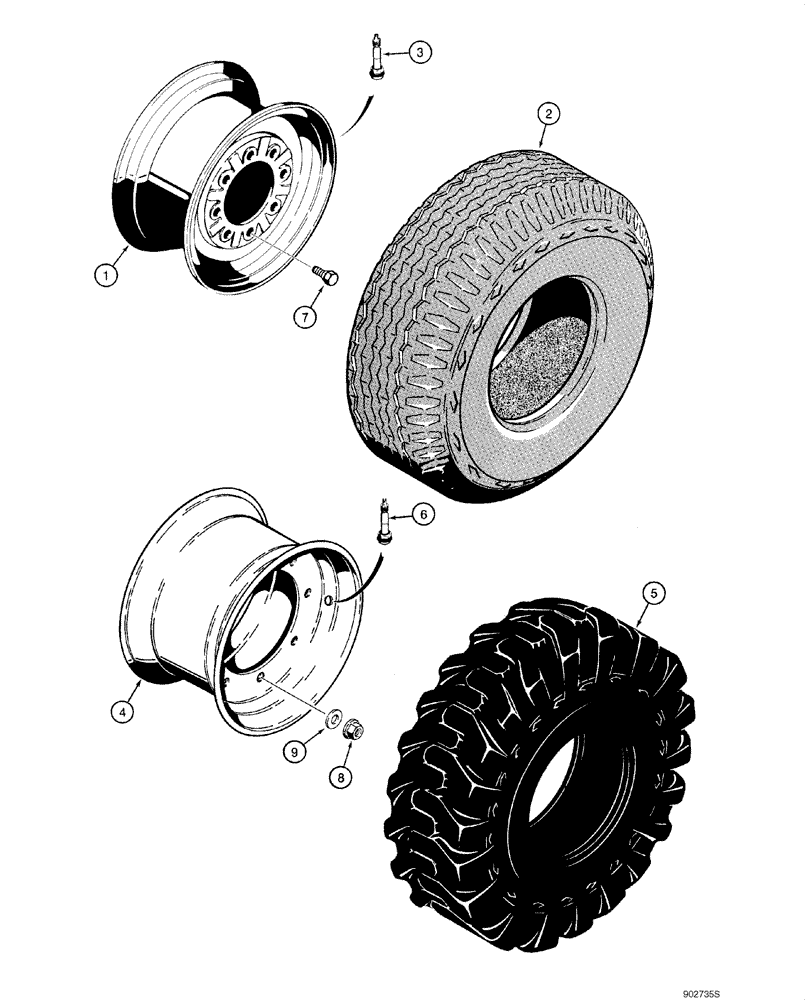

Запчасти Case 590SM (05-09) - WHEELS, FRONT - TIRES (05) - STEERING

1

247104A1

WHEEL

For 14.5/.75 x 16.1 - 10 Ply Tires; Two Wheel Drive Models

2шт.

2

REF

INSTRUCTION

Tire, Purchase Locally

2шт.

3

387897R91

VALVE STEM

2шт.

4

87599084

WHEEL ASSY,10.5x17.5, 266.8mm W, 8 Holes, CASE Power Tan

For 14 x 17.5 - 10 PR Tires; Four Wheel Drive Models

2шт.

5

REF

INSTRUCTION

Tire, Purchase Locally

2шт.

6

387897R91

VALVE STEM

2шт.

7

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

2WD Models

16шт.

8

100092

WHEEL NUT,M18 x 1.5, Cl 8

M18, Wheel Nuts, Four Wheel Drive Models

16шт.

9

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

4WD Models

16шт.
