Запчасти Case 590SM (04-12) - INSTRUMENT PANEL, SIDE - COVERS (RIGHT-HAND SIDE) (04) - ELECTRICAL SYSTEMS

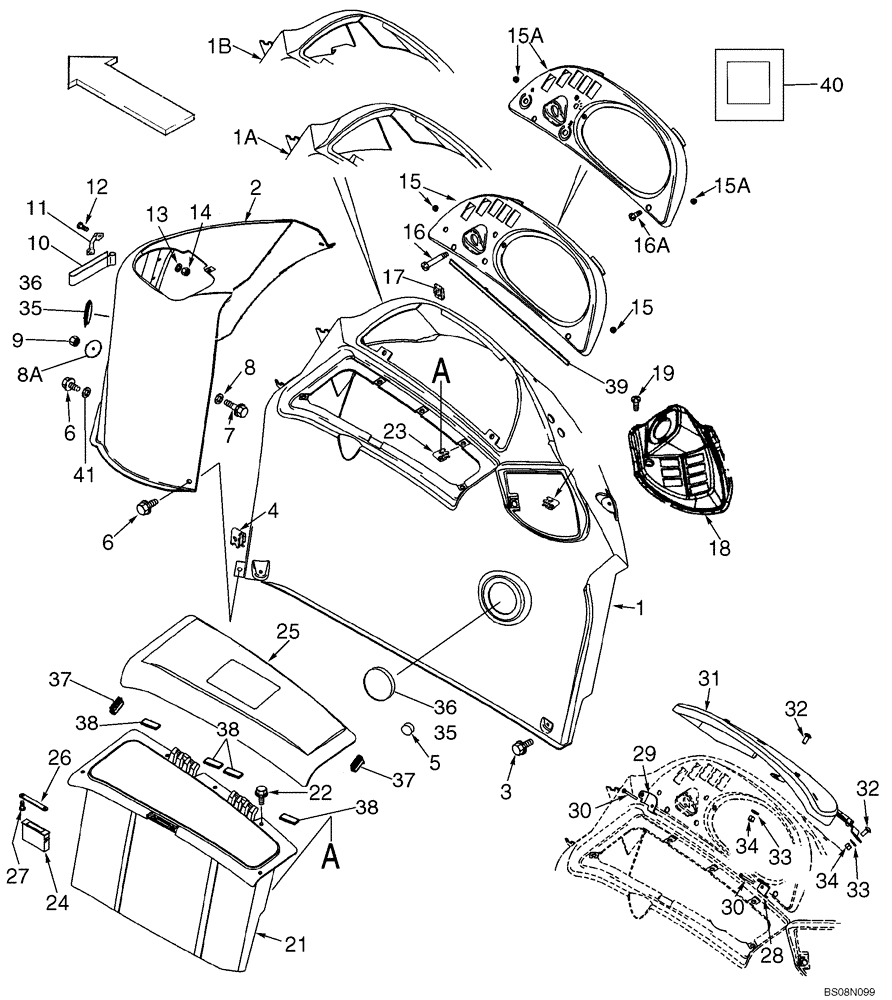

Схема запчастей Case 590SM - (04-12) - INSTRUMENT PANEL, SIDE - COVERS (RIGHT-HAND SIDE) (04) - ELECTRICAL SYSTEMS
10
30
16
35
22
6
33
14
24
38
32
16a
3
27
31
5
40
38
38
29
26
1
13
28
41
32
34
36
15
1a
7
15a
15a
2
39
18
15
19
11
30
6
21
37
23
35
1b
8
36
33
9
34
25
37
4
17
8a
12

Артикул

Название

Примечание

Количество

1

360250A2

CONSOLE

Canopy Models

1шт.

1a

355198A2

CONSOLE

Cab, Single Door

1шт.

1b

372167A3

CONSOLE

Cab, Two Door

1шт.

2

87633581

CONSOLE

Loader Control

1шт.

3

87310098

BOLT,M6 x 20 Full SST BLO

Flange, M6 x 20, Stainless Steel

6шт.

4

833-40406

NUT,M6, U

5шт.

5

L60224

BUMPER

Rubber

1шт.

6

87310152

BOLT,M6 x 16 Full SST BLO

Flange, M6 x 16, Stainless Steel

3шт.

7

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

8

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

8a

407660A1

WASHER,6.96mm ID x 50mm OD x 1.5mm Thk

7 mm ID x 50 mm OD

1шт.

9

832-10406

NUT,M6 x 1, Cl 8

1шт.

10

184726A1

FIXING STRIP

Velcro; Fire Extinguisher Retaining Strap

1шт.

11

182594A1

HANDLE

Velcro Retainer

2шт.

12

87310184

SCREW,Phillips Drive, Oval HD, M4 x 0.7 x 16mm, SST

M4 x 16; 4.8, Stainless Steel

4шт.

13

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

14

832-10404

NUT,M4 x 0.7, Cl 8.8

4шт.

15

391818A2

BEZEL

Instrument Cluster Mounting; Canopy Models, Includes 390258A1

1шт.

390258A1

INSERT

No. 10, Threaded

2шт.

15a

390255A2

BEZEL

Instrument Cluster Mounting; Cab Models, Includes 390258A1

1шт.

390258A1

INSERT

No. 10, Threaded

2шт.

16

87310128

SCREW,Pan Cross Recess Phillips, #10 - 24 x 57.20mm, Stainless

No. 10 x 2-1/4, Stainless Steel; Canopy Models

2шт.

16a

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

No. 10 x 3/4, Stainless Steel; Cab Models

2шт.

17

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

Cab or Canopy

2шт.

18

87576906

BEZEL

Rear Switches

1шт.

19

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

No. 10 x 3/4, Stainless Steel

1шт.

20

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

1шт.

21

366632A2

BOX, TOOL

Right-Hand

1шт.

22

87310098

BOLT,M6 x 20 Full SST BLO

Flange, M6 x 20, Stainless Steel

5шт.

23

833-40406

NUT,M6, U

5шт.

24

D127335

CATCH

Magnetic

1шт.

25

366633A3

LID

Storage Box

1шт.

26

375112A1

STRIKER PLATE

1шт.

27

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

2шт.

28

386369A2

BRACKET

1шт.

29

386368A2

BRACKET

1шт.

30

87310128

SCREW,Pan Cross Recess Phillips, #10 - 24 x 57.20mm, Stainless

No. 10 x 2-1/4, Stainless Steel

2шт.

31

385614A4

CONSOLE

Instrument Cluster; Anti-Vandalism, Canopy Models; Includes 386502A1, F22426

1шт.

386502A1

BUMPER

2шт.

F22426

STOP

3шт.

32

87310176

BOLT,Round Head, M8 x 20, Cl 8.8

Round Head, M8 x 20, Stainless Steel

2шт.

33

87310185

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9 x 20 x 1,6 mm, Stainless Steel

2шт.

34

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

35

1302758C1

PLUG

3 inch

2шт.

36

87310144

SELF-TAP SCREW,Pan Head, M6 x 12.7mm

No. 6 x 1/2, Stainless Steel

4шт.

37

430471A1

SEAL,40mm L

40 mm, Bulb; Storage Lid Bumper

2шт.

38

414092A1

SEALING STRIP,100mm

50 mm, Storage Box; Adhesive Back

4шт.

39

414071A1

SEALING STRIP,480mm

480 mm, Adhesive Back

1шт.

40

412510A1

SEALING STRIP

25 x 25 x 3 mm; Adhesive Back; Console To Fender

1шт.

41

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.
