Запчасти Case 590SM (04-11) - INSTRUMENT PANEL, FRONT - COVERS (04) - ELECTRICAL SYSTEMS

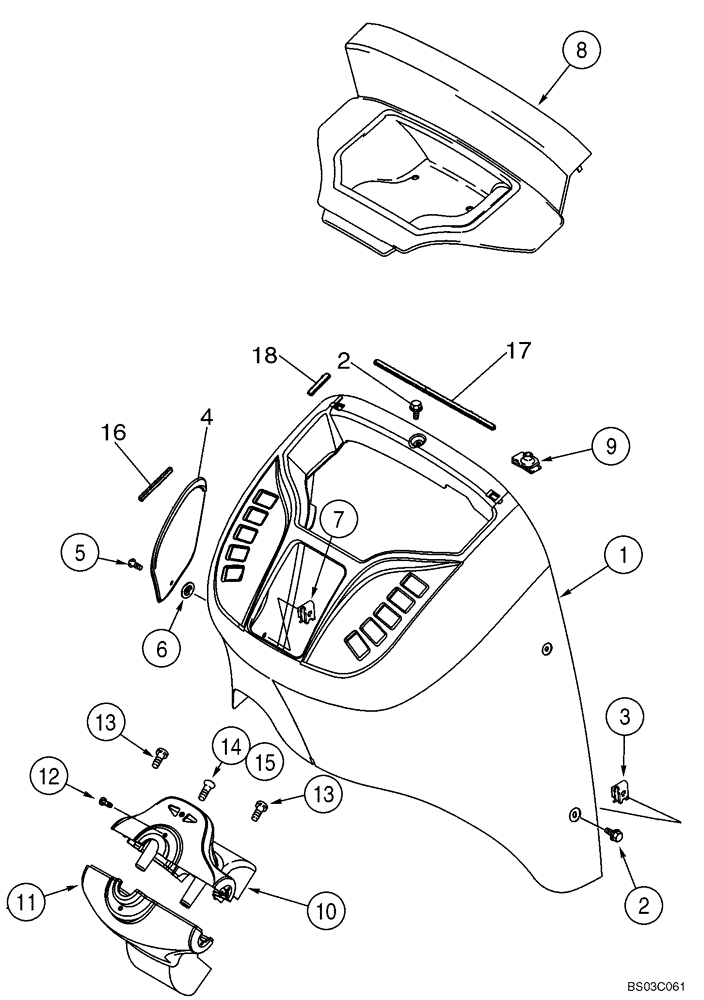

Схема запчастей Case 590SM - (04-11) - INSTRUMENT PANEL, FRONT - COVERS (04) - ELECTRICAL SYSTEMS
18
3
1
2
4
8
6
10
9
12
15
13
2
14
17
16
11
7
13
5

Артикул

Название

Примечание

Количество

1

355827A2

CONSOLE

Front; Standard; If Used

1шт.

1

87694305

CONSOLE

Front; Deluxe Cab; If Used

1шт.

2

87310152

BOLT,M6 x 16 Full SST BLO

Hex Flange, M6 x 16, Stainless Steel

6шт.

3

833-40406

NUT,M6, U

6шт.

4

360244A1

COVER

Fuse Access

1шт.

5

87310086

CAPTIVE WASHER SCREW,Sl Pan Hd, #10 - 16 x 17mm, Stainless Steel

Includes Washer, Stainless Steel

1шт.

6

127009A1

CLIP,ELECTRICAL

1шт.

7

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

8

360245A2

COVER

Relay Access; Models Without Powershift Transmission

1шт.

8a

363227A2

COVER

Relay Access; Models With Powershift Transmission; Not Illustrated

1шт.

9

278316A2

CLIP

2шт.

10

373689A2

COVER

Steering Column, Upper; Incl. Ref 10A - 10E; Components Not Illustrated

1шт.

10a

360242A2

COVER

1шт.

10b

303465A2

LAMP,12V, 2W

Blinker

1шт.

10c

303466A1

SYMBOLS

SYMBOL RH Flasher

1шт.

10d

303467A1

SYMBOLS

SYMBOL LH Flasher

1шт.

10e

373693A1

SCREW,Torx, #8 - 18 x 7/16"

Flat Head, No. 8 x 7/16

1шт.

11

360243A2

COVER

Steering Column, Lower

1шт.

12

87310124

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2", SST

No. 10 x 1/2, Stainless Steel

2шт.

13

87310124

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2", SST

No. 10 x 1/2, Stainless Steel

2шт.

14

87540980

SCREW,Phillips Drive, Pan HD, #10 - 16 x 1/2", SST

No. 10-16 x 1/2, High Grade Stainless Steel

1шт.

15

131-121

SPRING NUT,Tinn, U, #10-24

1шт.

16

414572A1

STRIP

100 mm, Adhesive Back

1шт.

17

414034A1

STRIP,330mm

330 mm, Adhesive Back

1шт.

18

414033A1

STRIP,60mm

60 mm, Adhesive Back

4шт.

Выбрано товаров: 25
