Запчасти Case 590SM (04-08) - HARNESS, FRONT CONSOLE - MOUNTING (04) - ELECTRICAL SYSTEMS

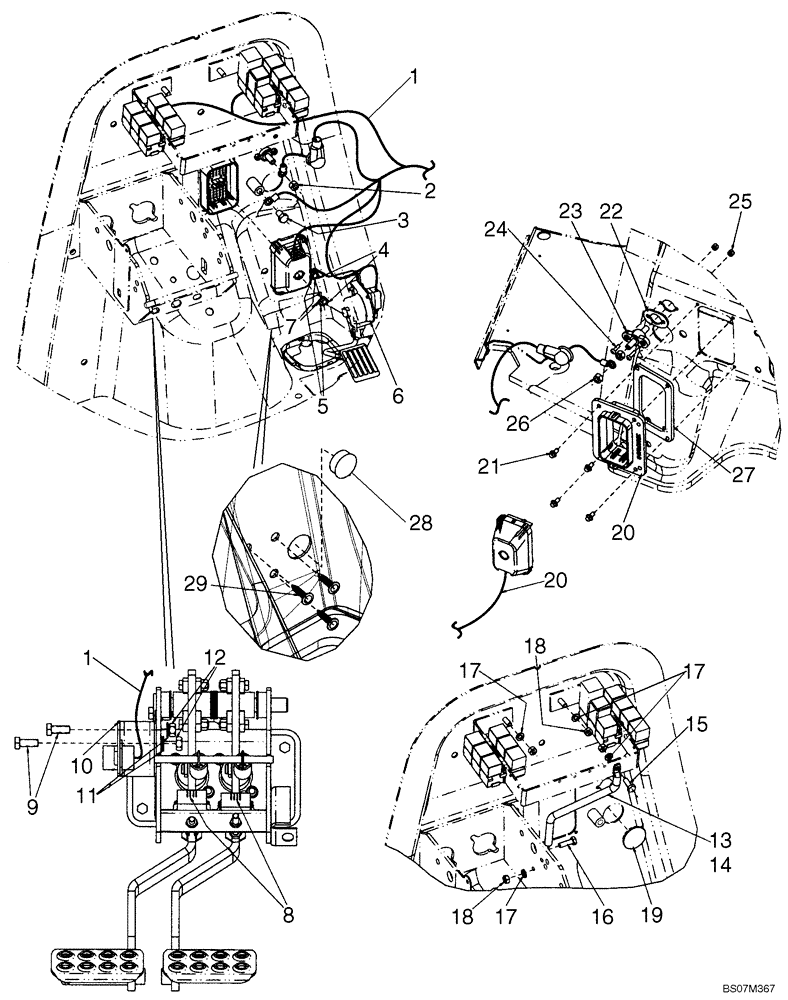

Схема запчастей Case 590SM - (04-08) - HARNESS, FRONT CONSOLE - MOUNTING (04) - ELECTRICAL SYSTEMS
16
12
24
13
21
22
1
8
1
2
29
4
17
18
7
20
26
23
17
10
28
11
25
14
19
9
15
5
3
20
27
18
17
6

Артикул

Название

Примечание

Количество

1

84137705

WIRE HARNESS

Front Console Harness; Mounts To Front Firewall; Replaces 87726581

1шт.

2

425-106

NUT,3/8"-16, Cl 5

1шт.

3

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

M10 x 15; Mounts To Front Firewall

1шт.

4

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

5

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

6

87555675

THROTTLE CONTROL

Incl. 87497572 Service Kit

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

8

82026949

PUSH BUTTON SWITCH

Brake

2шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

87644490

BRACKET

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

13

362930A2

BRACKET

Relay Mounting

1шт.

14

392353A1

CONDUIT

1шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

17

892-11008

LOCK WASHER,8mm ID

4шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

19

397876A1

PLUG

1-5/8 in, Button

1шт.

20

87726576

WIRE HARNESS

Engine, Main Chassis

1шт.

21

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

4шт.

22

357966A1

GASKET,50mm L x 32mm L

1шт.

23

357278A1

ISOLATOR

Positive Battery

1шт.

24

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

2шт.

25

231-24409

NUT,#10-32

2шт.

26

425-106

NUT,3/8"-16, Cl 5

2шт.

27

87649405

GASKET,128mm L x 94mm L x 6mm L

1шт.

28

87695421

PLASTIC PLUG,1.38" OD

1-1/4 in, Dome

1шт.

29

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

3шт.

Выбрано товаров: 29
