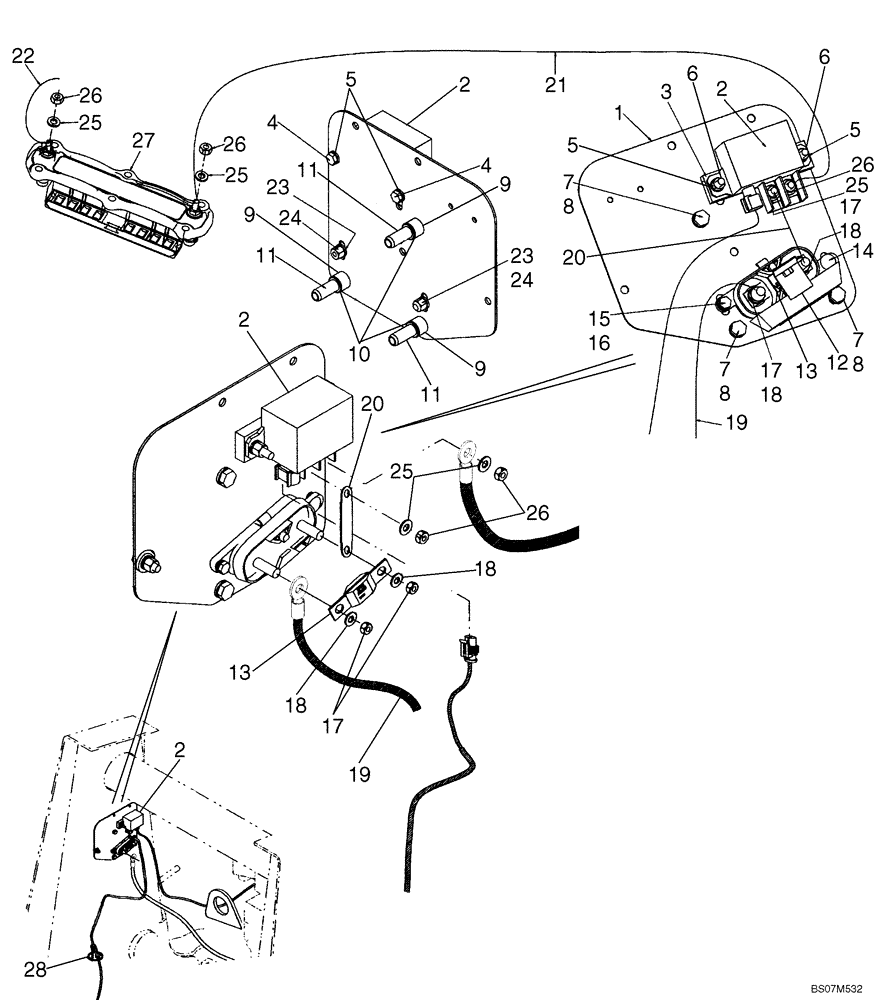

Запчасти Case 590SM (04-06A) - COLD START GRID HEATER (04) - ELECTRICAL SYSTEMS

1

87397601

BRACKET, SUPPORTING,2mm Thk

1шт.

2

86619908

RELAY,12V, 150A

Cold Start

1шт.

3

87414237

PLATE,25mm W x 102mm L x 10mm Thk

Bar, 10 mm Spacer

1шт.

4

614-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8, Full Thd

2шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

6

832-10406

NUT,M6 x 1, Cl 8

2шт.

7

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

8

892-11008

LOCK WASHER,8mm ID

3шт.

9

407962A1

SPACER,9.8mm ID x 12.9mm OD x 11mm L

3шт.

10

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

3шт.

11

87417383

THREADED INSERT,M8 x 1.25

M8 x 1-1/4

3шт.

12

440038A1

JUNCTION BLOCK

1шт.

13

87410602

FUSE,300A, Blade

1шт.

14

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

1шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

18

892-11008

LOCK WASHER,8mm ID

2шт.

19

87419615

CABLE ASSY.

Starter To Fuse

1шт.

20

87410265

BAR

Cable; Fuse To Relay

1шт.

21

87608352

WIRE HARNESS

Relay To Grid Heater

1шт.

22

87601612

GROUND CABLE

Grid Heater Ground

1шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

24

832-10406

NUT,M6 x 1, Cl 8

2шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

26

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

27

2854837

HEATER

Grid

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.
