Запчасти Case 590SM (04-05) - BATTERY, SINGLE - W/O COLD START (04) - ELECTRICAL SYSTEMS

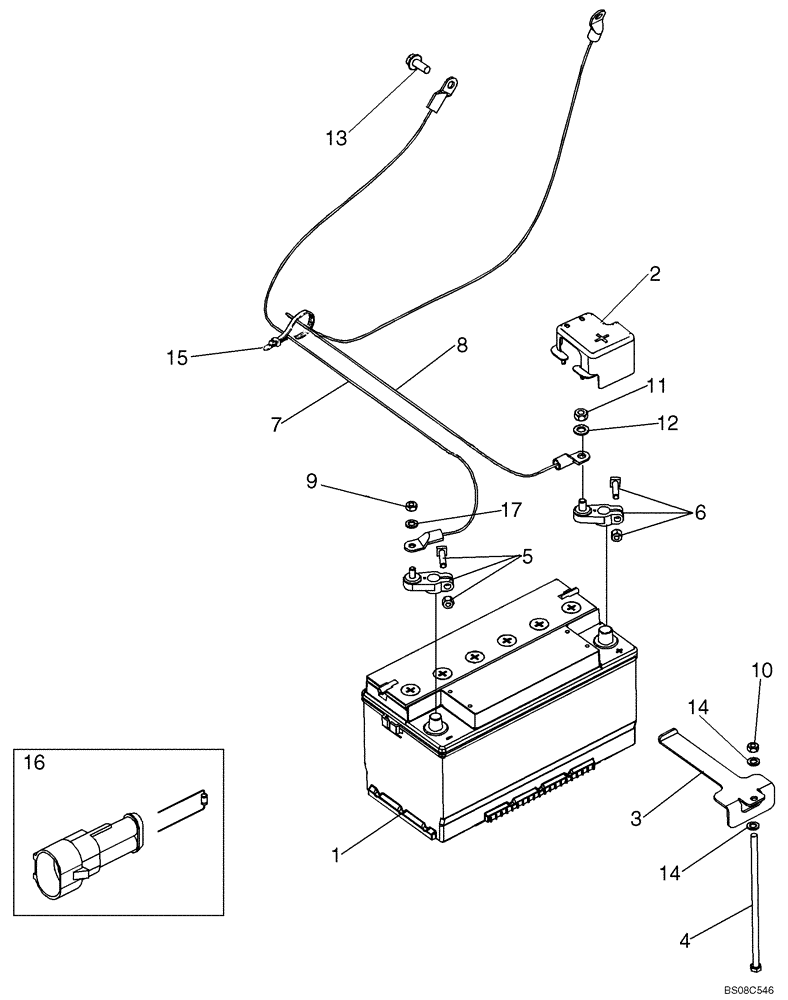

Схема запчастей Case 590SM - (04-05) - BATTERY, SINGLE - W/O COLD START (04) - ELECTRICAL SYSTEMS
16
11
14
6
10
4
12
8
1
2
9
17
14
13
15
7
3
5

Артикул

Название

Примечание

Количество

1

87403835

WET BATTERY,Group 49, 12V, 850CCA

12V; Models Without Cold Start; Used In Production, For Service Order B4960W Through Ship Direct

1шт.

2

87664021

COVER

Protective; Battery Positive

1шт.

3

87653377

BRACKET

Tie Down

1шт.

4

87522766

BOLT,Hex, M8 x 220mm, Cl 8.8

1шт.

5

87735578

TERMINAL CONNECTOR,5/16 - 18 Stud

Battery Cable Negative

1шт.

6

87735577

TERMINAL CONNECTOR,3/16 - 18 Stud

Battery Cable Positive

1шт.

7

87610680

NEG BATTERY CABLE,1200mm L

1шт.

8

87610679

POS BATTERY CABLE

1шт.

9

425-105

NUT,5/16"-18, G5

1шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

13

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

2шт.

16

87584645

RESISTOR,1kohm, 0.5W

Jumper, Used W/O Grid Heater

1шт.

17

495-11034

WASHER,5/16", SAE

1шт.

Выбрано товаров: 17
