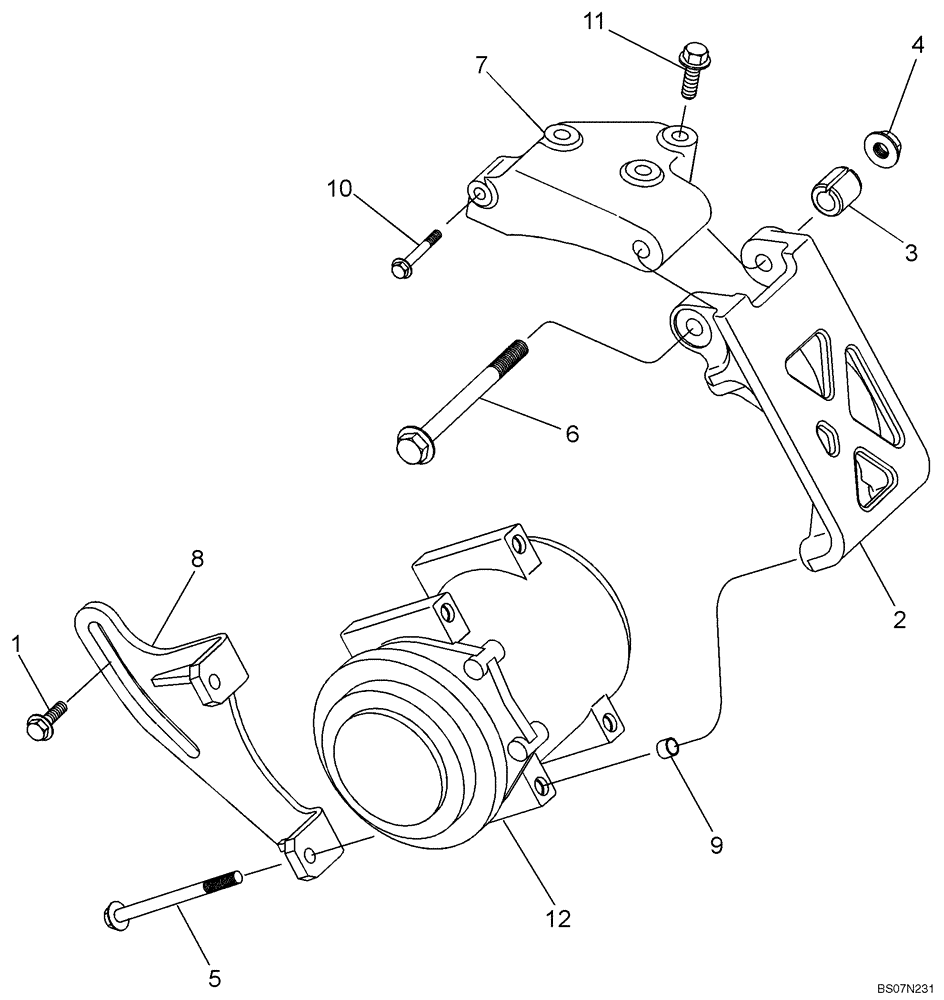

Запчасти Case 590SM (02-43) - AIR CONDITIONING COMPRESSOR ATTACHING GROUP (02) - ENGINE

1

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

1шт.

2

2852623

SUPPORT

1шт.

3

2852626

SPACER,12.5mm ID x 22.4mm OD x 27mm L

1шт.

4

2852627

FLANGE NUT,Hex, M12 x 1.75

1шт.

5

2852628

SCREW,Hex, M8 x 1.25 x 105mm

4шт.

6

2852925

SCREW,Hex, M12 x 1.75 x 130mm

1шт.

7

2854887

BRACKET

Air Conditioner

1шт.

8

2854890

BELT TENSIONER

Compressor

1шт.

9

4895227

GUIDE RING,11.15mm OD, 8.5mm ID, 9mm L

2шт.

10

4899147

SCREW,Hex, M6 x 1 x 45mm

1шт.

11

4899144

SCREW,Hex Flg, M10 x 1.5 x 50

3шт.

12

87548077

AIRCOND. COMPRESSOR

1шт.

84159488R

REMAN-A/C COMPRESSOR

590SM TIER 3, 590SM+ TIER 3 UT59P303 Both (2/08-), Reman For New P/N 500388059

1шт.

84159488C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

87548076

BELT,0.55" W x 47.95" L, 4 Ribs

Not Shown

1шт.
