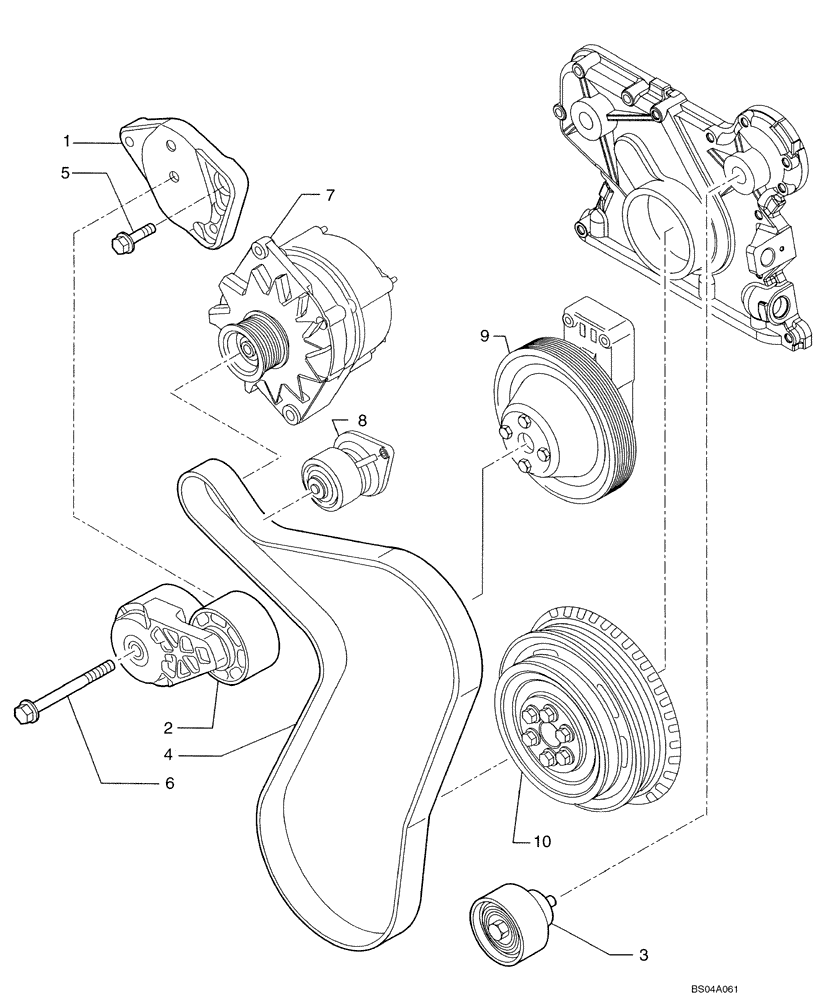

Запчасти Case 590SM (02-39) - WATER PUMP - CONTROL (02) - ENGINE

1

2855949

SUPPORT

1шт.

2

2852161

BELT TENSIONER

1шт.

3

2852162

PULLEY,65mm OD

1шт.

4

REF

INSTRUCTION

BELT; See Figure 02-01

1шт.

5

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

2шт.

6

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

1шт.

7

REF

INSTRUCTION

ALTERNATOR; See Figure 04-02

1шт.

8

REF

INSTRUCTION

WATER PUMP; See Figure 02-36

1шт.

9

REF

INSTRUCTION

FAN DRIVE; See Figure 02-40

1шт.

10

REF

INSTRUCTION

CRANKSHAFT PULLEY; See Figure 02-26

1шт.
