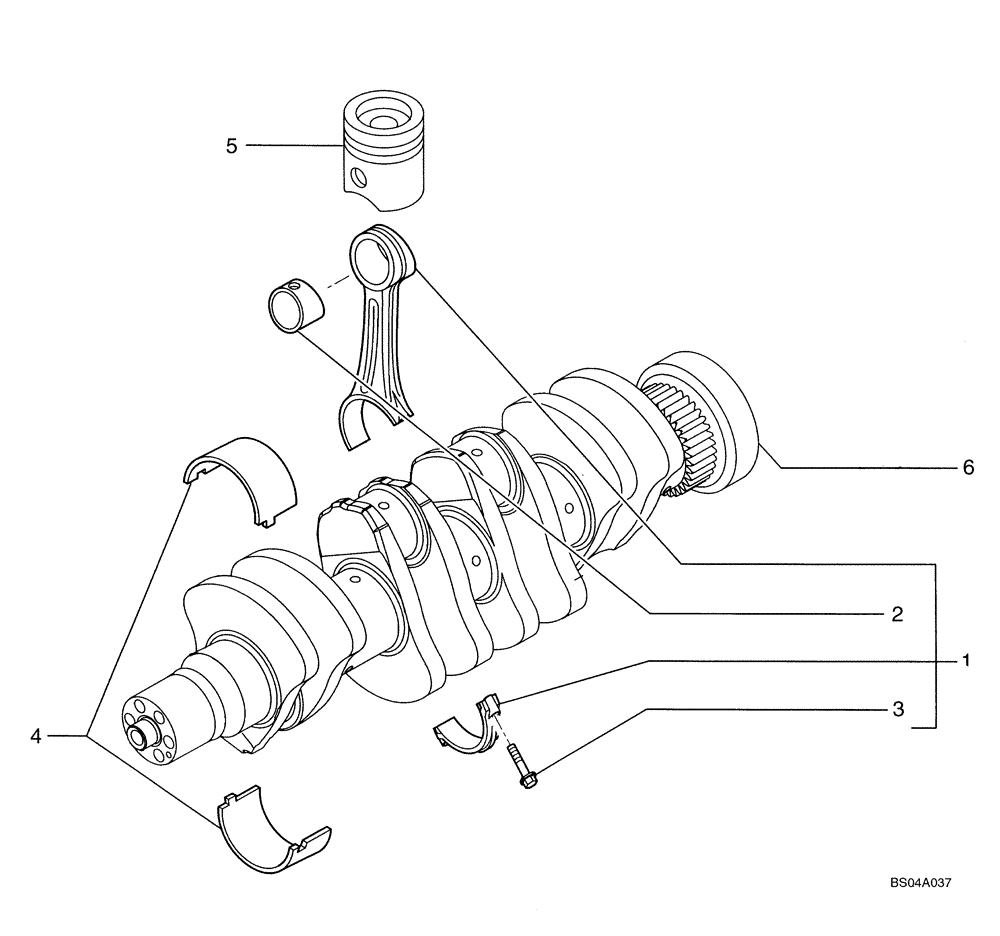

Запчасти Case 590SM (02-23) - PISTONS - CONNECTING ROD (02) - ENGINE

84131472

SHORT ENGINE

Includes All Parts On Figures 02-09, 02-10, 02-22, 02-23, 02-24, 02-29

1шт.

1

2831298

CONNECTING ROD

Incl. Ref 2, 3

4шт.

2831298R

REMAN-CONNECTING ROD

590SM , 590SM+ ALL SERIES 3 TIER 3 BOTH in ( 2/08 - )

4шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

8093882

BEARING SET

Standard

4шт.

4

8094960

BEARING SET,(-0.250)

.025 mm oversize

4шт.

4

8094961

BEARING SET,(-0.500)

.050 mm oversize

4шт.

5

REF

INSTRUCTION

PISTON; See Figure 02-24

1шт.

6

REF

INSTRUCTION

CRANKSHAFT; See Figure 02-22

1шт.
