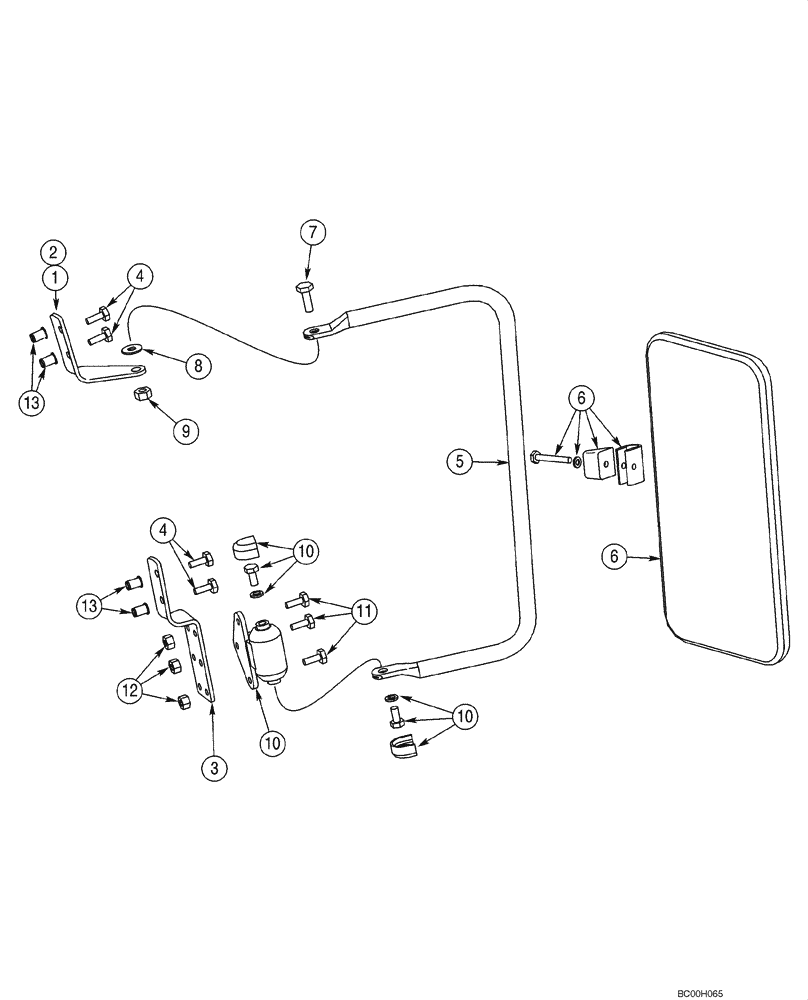

Запчасти Case 590SM (09-69) - MIRROR, REAR VIEW - MOUNTING, CAB MODELS (09) - CHASSIS/ATTACHMENTS

397974A1

CONSTRUCTION DIA

Outside Mirror; Incl. Ref 1 - 14 and Instructions

1шт.

1

402933A1

BRACKET

Upper; Right-Hand

1шт.

2

402934A1

BRACKET

Upper; Left-Hand; Not Illustrated

1шт.

3

402936A1

BRACKET

Lower

2шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

5

402935A1

SUPPORT TUBE

2шт.

6

R54682

MIRROR

Exterior

2шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

A167037

WASHER

2шт.

9

231-4115

NUT,5/16"-18, GB

2шт.

10

D142144

HINGE

Includes Hardware

2шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

12

231-1444

NUT,1/4"-20, GB

6шт.

13

255447A1

THREADED INSERT

Cab Front ROPS Post

10шт.

14

NSS

NOT SOLD SEPARAT

TOOL, Insert Nut; Not Illustrated

1шт.
