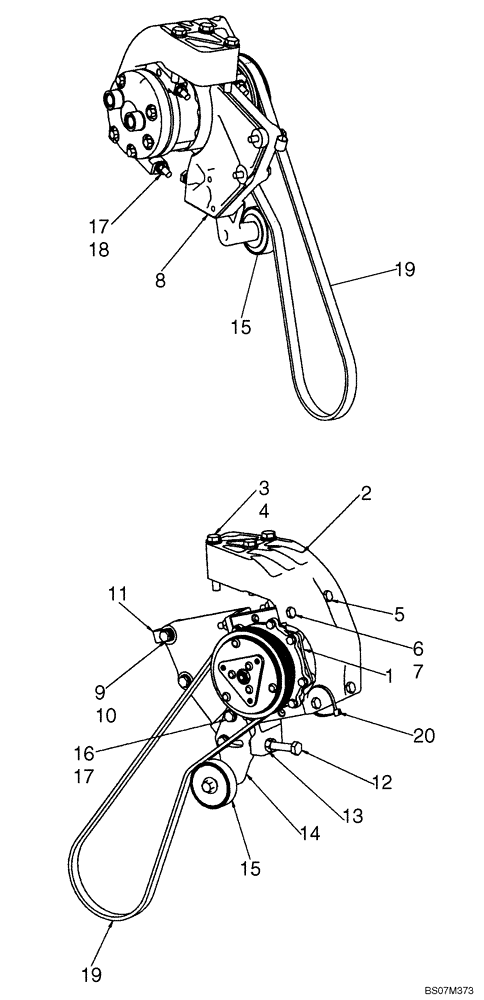

Запчасти Case 590SM (09-65) - CAB - AIR CONDITIONING COMPRESSOR (09) - CHASSIS/ATTACHMENTS

1

87548077

AIRCOND. COMPRESSOR

Compressor Component Parts Not Serviced Separately

1шт.

84159488R

REMAN-A/C COMPRESSOR

590SM, 590SM+ UT59P303 Both TIER 3 (2/08-) Reman fo New P/N 87548077

1шт.

84159488C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

2

87551296

BRACKET

1шт.

3

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

3шт.

4

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

5

814-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

2шт.

6

814-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8

2шт.

7

87429952

SLEEVE,8.5mm ID x 11.132mm OD x 9mm L

2шт.

8

87551297

SUPPORT

Lower Compressor Mounting

1шт.

9

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

10

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

11

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

12

614-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

1шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

14

87551299

SUPPORT

Idler

1шт.

15

87548073

IDLER

1шт.

16

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

17

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

6шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

19

87548076

BELT,0.55" W x 47.95" L, 4 Ribs

AC Compressor

1шт.

20

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.
