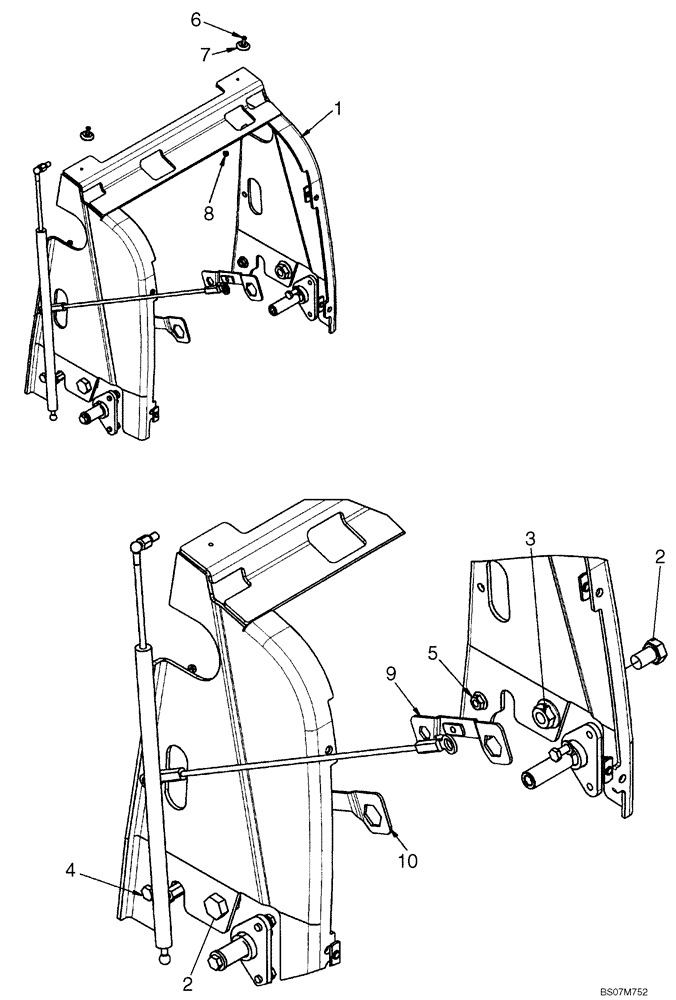

Запчасти Case 590SM (09-37) - RADIATOR WRAPPER (09) - CHASSIS/ATTACHMENTS

1

87719412

HOUSING

Wrapper

1шт.

2

614-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 8.8, Full Thd

2шт.

3

829-2420

FLANGE NUT,M20 x 2.5, Flg, Cl 10

2шт.

4

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

5

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

2шт.

6

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

7

109879A1

SPACER,5.5mm ID x 30mm OD

Hood; Plastic

2шт.

8

231-14109

LOCK NUT,#10-24, GB

2шт.

9

87725886

RETAINER

1шт.

10

87725883

RETAINER

1шт.
