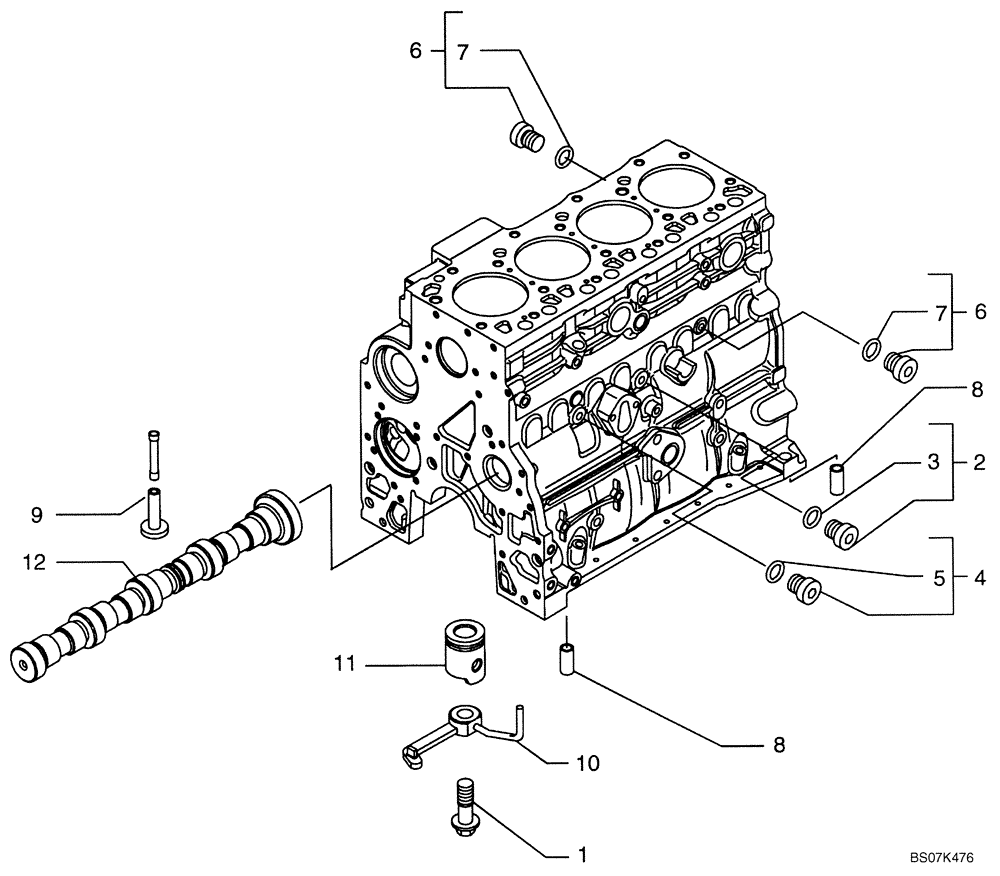

Запчасти Case 590SM (02-10) - CYLINDER BLOCK (02) - ENGINE

84131472

SHORT ENGINE

Includes All Parts On Figures 02-09, 02-10, 02-22, 02-23, 02-24, 02-29

1шт.

1

4894218

SCREW,Special, M8 x 20

4шт.

2

4895605

HEX SOCKET PLUG,M14 x 1.5

Incl. Ref 3

1шт.

3

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

4

4899009

PLUG,M10 x1

Incl. Ref 5

1шт.

5

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

Incl. Ref 7

2шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895049

DOWEL,M16.05 x 10

2шт.

9

4891226

TAPPET

8шт.

10

2852202

NOZZLE, PISTON COOLI

Incl. Ref 1

4шт.

11

REF

INSTRUCTION

PISTON; See Figure 02-23

1шт.

12

REF

INSTRUCTION

CAMSHAFT; See Figure 02-29

1шт.
