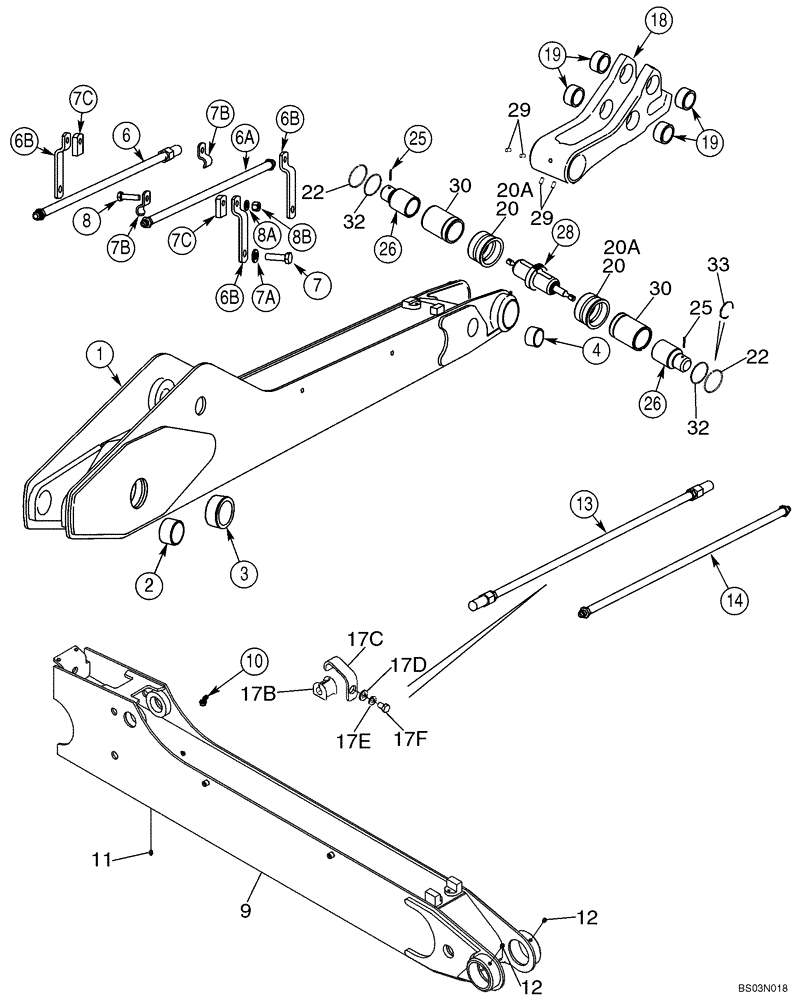

Запчасти Case 590SM (09-27) - DIPPER, BACKHOE - COUPLER, HYDRAULIC (MODELS WITH HYDRAULIC BACKHOE BUCKET COUPLER) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

STANDARD DIPPER

1шт.

1

341352A6

DIPPER

Standard Dipper; Incl. Ref 2 - 5, 20A

1шт.

2

D144161

BUSHING,70.19mm ID x 80mm OD x 46mm L

70 ID x 50 mm lg

2шт.

3

D151059

BUSHING,80.19mm ID x 104mm OD x 42mm L

80 ID x 46 mm lg

2шт.

4

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

50 x 60 x 25.5 mm lg

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Bucket End; Not Illustrated

2шт.

6

406172A1

TUBE

See Figure 08-30

1шт.

6a

406971A1

TUBE

See Figure 08-30

1шт.

6b

405235A1

BRACKET

4шт.

7

604-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

4шт.

7b

409462A1

CLIP

4шт.

7c

406569A1

BACK PLATE

4шт.

8

607-8030

BOLT,Hex, M8 x 30mm, Cl 10.9

4шт.

8a

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

8b

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

REF

INSTRUCTION

EXTENDABLE DIPPER

1шт.

9

87417019

DIPPER

Outer; Extendable Dipper; Incl. Ref 10 - 12, 20

1шт.

10

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

1шт.

11

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

13

403840A1

TUBE

See Figure 08-30

1шт.

14

403400A1

TUBE

See Figure 08-30

1шт.

17b

445757A1

BRACKET

4шт.

17c

D67296

GROMMET

1/2 Tube

4шт.

17d

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

17e

892-11010

LOCK WASHER,M10

4шт.

17f

607-10020

BOLT,Hex, M10 x 20mm, Cl 10.9

4шт.

REF

INSTRUCTION

HYDRAULIC BACKHOE BUCKET COUPLER

1шт.

18

417681A1

COUPLING

Incl. Ref 19

1шт.

19

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

4шт.

20

400934A2

BUSHING,89.13mm ID x 105mm OD x 54mm L

Models With Extendable Dipper

2шт.

20a

400934A2

BUSHING,89.13mm ID x 105mm OD x 54mm L

Models Without Extendable Dipper

2шт.

22

406624A1

RING,81.38mm OD, Ext

2шт.

25

135-1233

GROOVED PIN,5.56mm OD x 38.1mm L

2шт.

26

400932A4

PIN,76.2mm OD x 114.5mm L

2шт.

28

87615847

HYDRAULIC CYLINDER

Coupler; See Figure 08-32

1шт.

28

87615847C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

29

418070A1

SET SCREW,M10 x 20mm

M10 x 20; Hex Socket

4шт.

30

448676A1

HYD CYL SLEEVE,76.4mm ID x 88.8mm OD x 112.5mm L

Outer

2шт.

32

434891A1

WIPER SEAL

Wiper; Stepped Pin; Coupler

2шт.

33

445364A1

SEALING RING,88mm OD

SEALRING Service Ring; Included With Couplter Cylinder Seal Kit

2шт.
