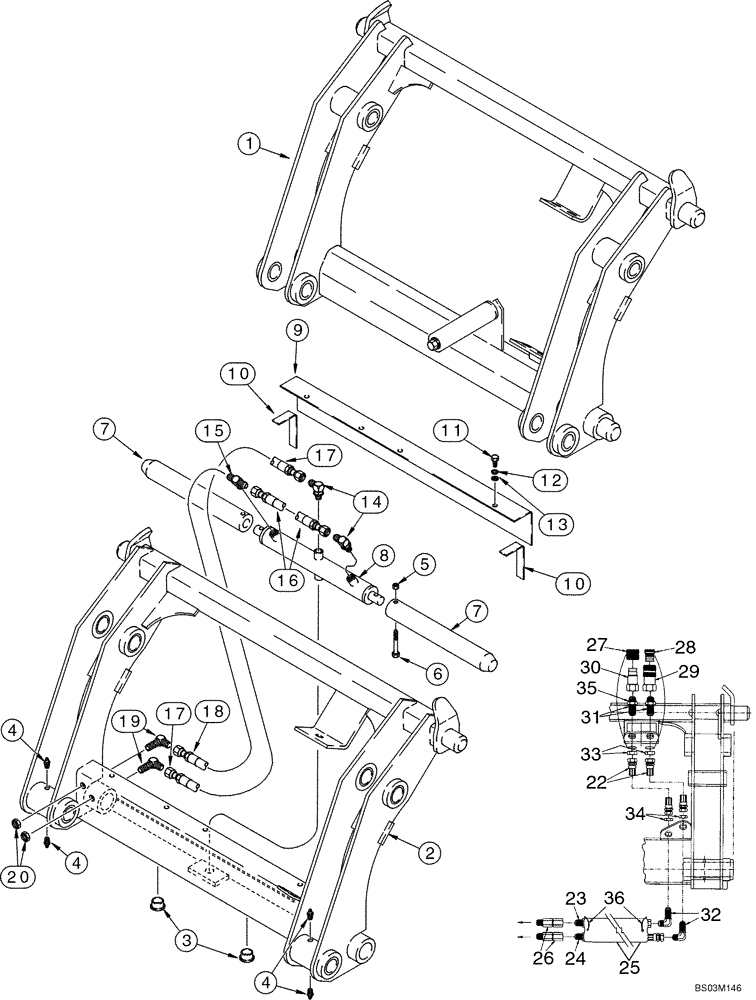

Запчасти Case 590SM (09-09) - COUPLER, TOOL QUICK (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

MANUAL COUPLER

1шт.

1

191239A1

COUPLING

Loader, Complete; Component Parts Not Serviced Separately; Used With D121194 Bucket Position Pointer and 275939A1 Bucket Cylinder Link; See Figure 09-05, Ref 6, 13

1шт.

REF

INSTRUCTION

HYDRAULIC COUPLER

1шт.

87602620

COUPLING

Loader; Incl. Ref 2 - 35; With Auxiliary Hydraulics; For Complete Assembly, Order From Machinery Price List; Category III; For Hydraulic Tool Quick Coupler Hydraulics, See Figure 08-26, 08-27; Replaces 292969A2

1шт.

2

NSS

NOT SOLD SEPARAT

Frame

1шт.

3

305497A1

PLUG,1.25" x 0.5"

1-1/4 ID x 1/2 in OD; Plastic

2шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

5

231-4246

LOCK NUT,3/8"-16, GB

2шт.

6

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

7

305496A1

PIN,49.23mm OD x 381mm L

1-15/16 OD x 15 in lg

2шт.

8

305499A1

HYDRAULIC CYLINDER,25.4mm Rod, 203.2mm Stroke

Double Acting; Component Parts Not Serviced Separately

1шт.

305499A1R

REMAN-HYD CYLINDER

590SM, 590SM+ UT59P303, BOTH SERIES 3 TIER 3 (2/08-)

1шт.

305499A1C

CORE-HYD CYLINDER

Return Number

1шт.

9

305495A1

COVER

1шт.

10

NSS

NOT SOLD SEPARAT

Seal; Foam

2шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

12

492-11031

LOCK WASHER,5/16"

3шт.

13

495-11034

WASHER,5/16", SAE

3шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 237-6006 O-Ring

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 237-6006 O-Ring

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

305492A1

HYDRAULIC HOSE,260.00 mm

1шт.

17

305494A1

HYDRAULIC HOSE,387.00 mm

1шт.

18

305493A1

HYDRAULIC HOSE,235.00 mm

1шт.

19

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

20

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

21

305508A1

DECAL KIT

Incl. Four Decals; Not Illustrated

1шт.

22

307385A1

HYDRAULIC HOSE,387.40 mm

HOSE, HYDRAULIC 387mm (15-1/4") used to service couplers 292969A2 and 86982425

2шт.

23

307386A1

HYDRAULIC HOSE,628.70 mm

629 mm (24-3/4")

1шт.

24

307387A1

HYDRAULIC HOSE,717.60 mm

718 mm (28-1/4")

1шт.

25

307388A1

HOSE PROTECTION,26" / 660.4mm L

660 mm (26")

1шт.

26

307389A1

PIVOT

Swivel

2шт.

27

137344A1

PLUG

Male Coupling

1шт.

28

137343A1

PLUG

Female Coupling

1шт.

29

123537A1

COUPLING, QUICK, FEM

Disconnect

1шт.

30

245423A1

FITTING

1шт.

31

126155A1

FITTING

1-1/16 blkhd fl x Or

2шт.

32

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

33

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

34

218-1279

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

2шт.
