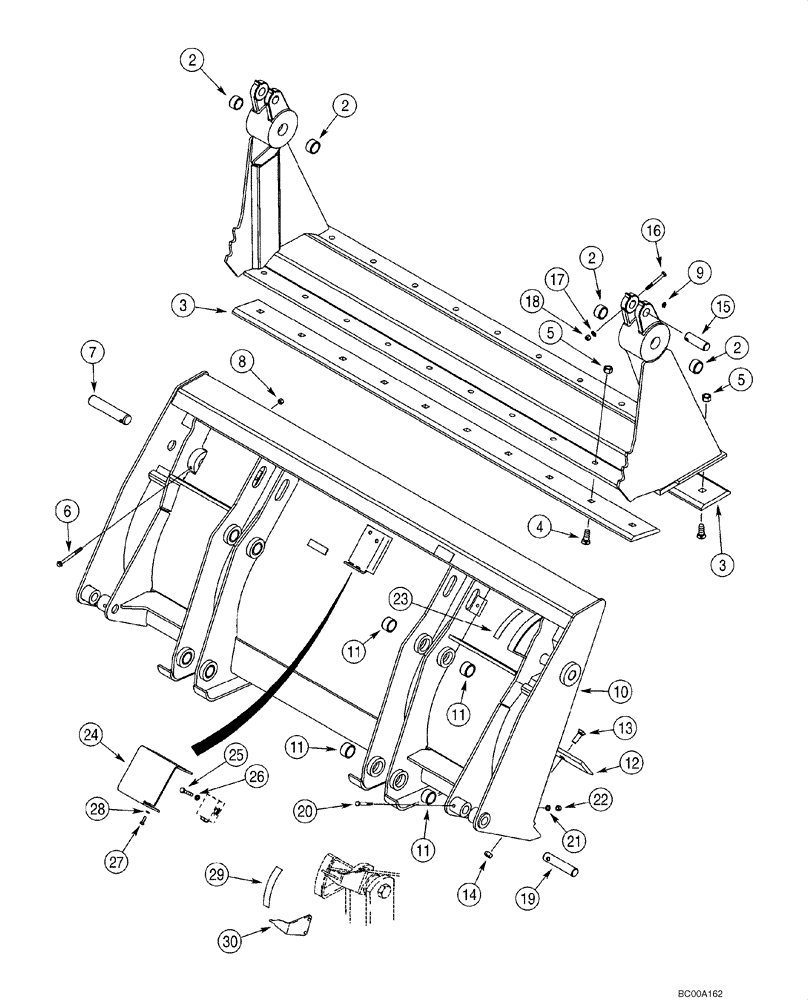

Запчасти Case 590SM (09-07) - BUCKET, LOADER CLAM (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
87455505
BUCKET
ASSEMBLY, 2362 mm (93 in); With Hydraulics; Incl. 87441073 Bucket Assembly, Ref 1 - 28; Also Includes Hydraulics On Figure 08-07, Ref 1 - 29; Order Through Parts Marketing
1шт.
87441073
BUCKET
BUCKET ASSEMBLY, 2362 mm (93 in); Without Hydraulics; Incl. Ref 1 - 14; Order Through Parts Marketing; Replaces 376287A2 Bucket Assembly
1шт.
144210A1
CLAMSHELL BUCKET
Incl Ref 1, 2
1шт.
1
NSS
NOT SOLD SEPARAT
Clam Assy
1шт.
2
D31140
BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L
4шт.
3
142301A1
CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2362mm L
Blade
2шт.
5
29-1012
NUT,3/4"-10, G8
20шт.
6
844-10110
BOLT,Hvy Hex, M10 x 110mm, Cl 8.8
2шт.
7
D51391
PIN,15mm OD x 74mm L
2шт.
8
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
9
219-1
LUBE NIPPLE,1/8" - 27 NPTF
4шт.
87441074
BUCKET
BLADE, Incl. Ref 10, 11
1шт.
10
NSS
NOT SOLD SEPARAT
Blade Assy; Dozer
1шт.
11
D129264
BUSHING,40.3mm ID x 50mm OD x 28mm L
8шт.
12
133542A1
CUTTING EDGE,Bolt On, 10 Holes, 12.7mm W x 2359mm L
Cutting
1шт.
13
20-21032
PLOW BOLT,#3, 5/8" - 11 x 2", Gr 8
10шт.
14
29-1010
NUT,5/8"-11, G8
10шт.
15
D51392
PIN,31.72mm OD x 101.6mm L
2шт.
16
814-10090
BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8
2шт.
17
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
18
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
19
D51393
PIN,31.72mm OD x 152.4mm L
2шт.
20
814-10080
BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8
2шт.
21
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
22
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
23
321-1708
DECAL
1шт.
24
388848A1
GUARD
Pilot Operated Check Valve
1шт.
25
814-10060
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
2шт.
26
892-11010
LOCK WASHER,M10
2шт.
27
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
2шт.
28
892-11008
LOCK WASHER,8mm ID
2шт.
29
321-1707
DECAL
1шт.
30
250851A1
POINTER
1шт.
31
87441064
KIT
DIA, Bucket Assembly
1шт.
Выбрано товаров: 35
