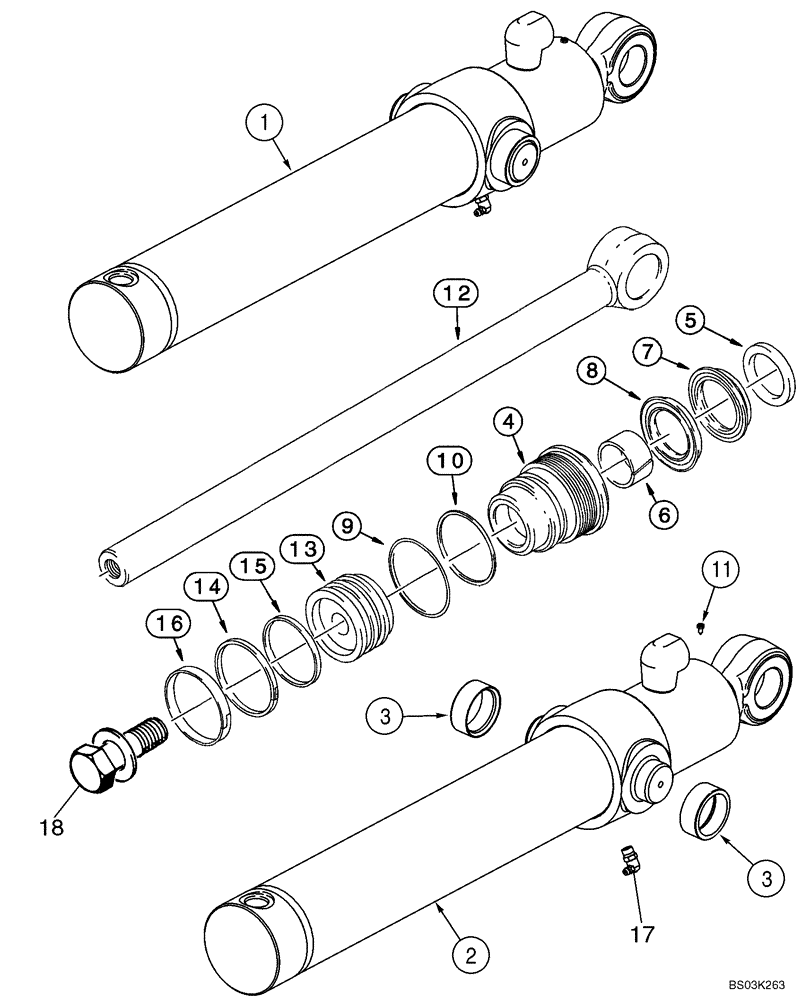

Запчасти Case 590SM (08-63) - CYLINDER ASSY - LOADER BUCKET (08) - HYDRAULICS

1

255756A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 537.5mm Stroke

82.6 ID x 538 mm strk; Loader Bucket; Incl. Ref 2- 18

2шт.

2

251861A1

BARREL,82.6 mm ID, 711.7 mm Length

Incl. Ref 3

1шт.

3

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

2шт.

4

1980321C3

GLAND

1шт.

1543260C1

SEAL KIT

Incl Ref 5 - 10, 14 - 16

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

Wiper

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

1542875C1

SEAL KIT,44.4mm Rod

Rod and Buffer Seal, Incl Ref 7, 8; Not Serviced Separately; Order 1543260C1 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

Rod Seal; Order 1543260C1 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 1543260C1 Seal Kit

1шт.

9

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

12

255760A1

ROD ASSY.

44 mm (1-3/4 in) dia

1шт.

13

135161A1

PISTON,82.07mm Bore, 44.5mm Rod, 50.65mm W

1шт.

14

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

1шт.

15

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

1шт.

16

S109445

RING,82.55mm OD, Ext

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

18

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1 x 2-1/2; Incl. Washer

1шт.
