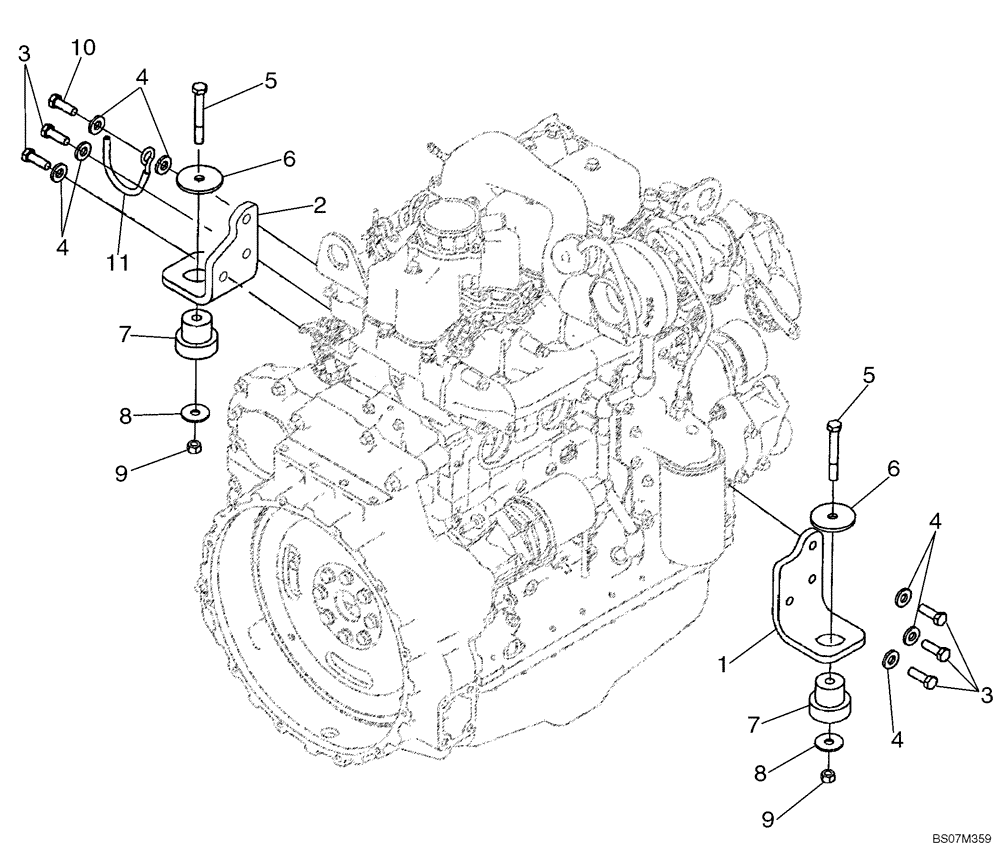

Запчасти Case 590SM (02-07) - ENGINE - MOUNTING (02) - ENGINE

87329242

ENGINE

110 hp Turbocharged Engine, 4 Cyl, HPCR Fuel System; Internal Intake EGR; Tier III; Includes Parts On Figures 02-08 - 02-43, 03-04 - 03-11

1шт.

*

84498233ER

REMAN-REPLACEMENT EN

590SM & 590SM+, Both Series 3 Tier 3w/NEF 4 Cyl., 4 Valve Engine, Reman For New P/N 87329242

1шт.

*

84498233EPAC

CORE-REPLACEMENT ENG

Return Number

1шт.

1

87411319

ENGINE MOUNT

Right-Hand

1шт.

2

87550221

ENGINE MOUNT

LH

1шт.

3

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

5шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

7шт.

5

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

2шт.

6

85801585

SEALING WASHER,13mm ID x 65mm OD x 5mm Thk

2шт.

7

87416966

ISOLATOR

Insulator, Rubber Mount

2шт.

8

85802618

SEALING WASHER,13mm ID x 41mm OD x 3mm Thk

2шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

10

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

11

87431799

SUPPORT

Hose

1шт.
